10335 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE & BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

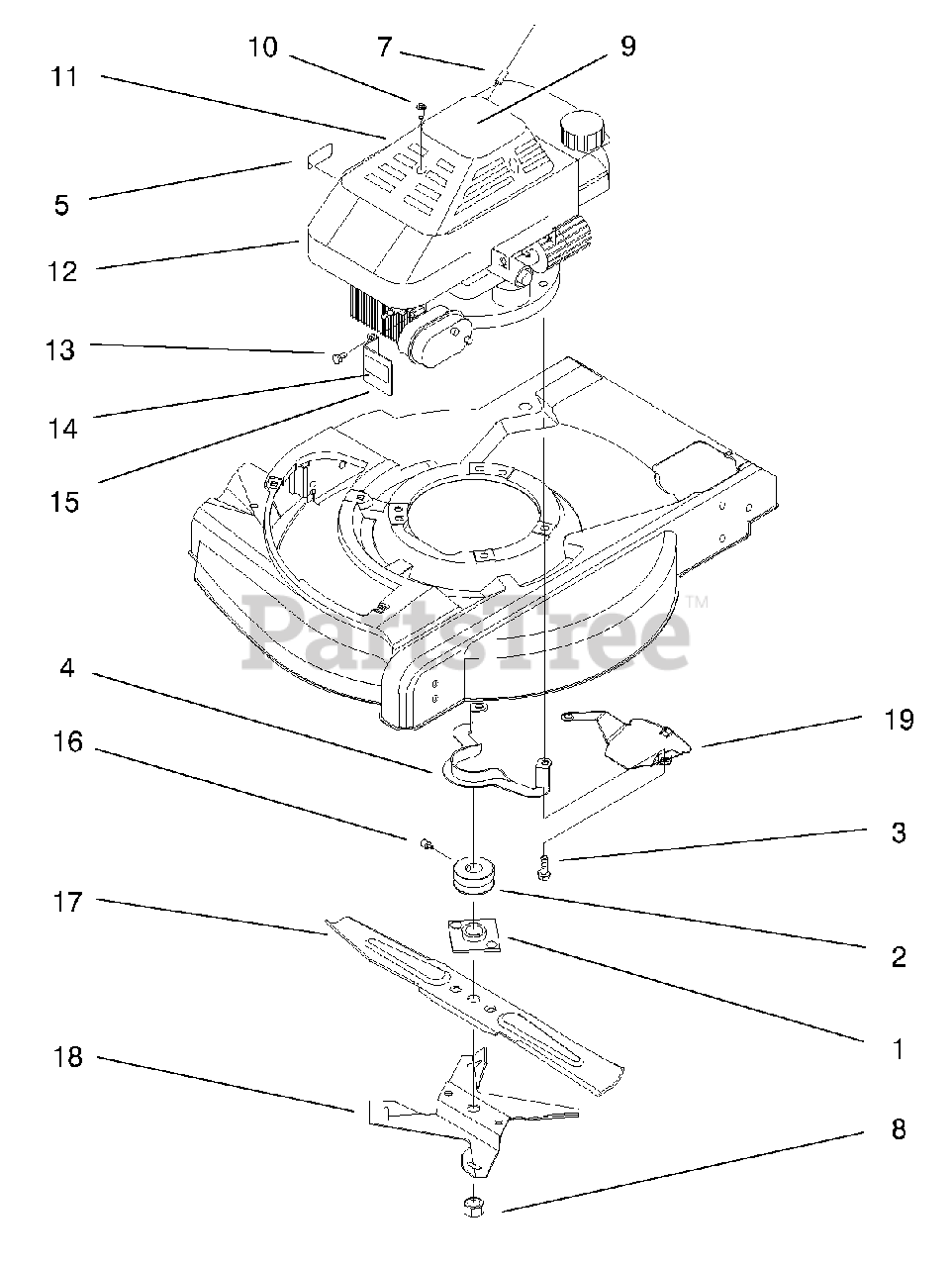

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677525

Plate & Collar ASM

$23.99

$

In Stock, Qty 9

0

2

Lawn-Boy 92-9575

Pulley

$93.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 95-1726

Screw-Taptite w/Patch

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 92-1024-03

Guide-Belt

$

$

Not available

5

Lawn-Boy 92-4851

Decal-Oil Instr.

$1.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 5

0

9

Lawn-Boy 95-5591

Decal-Recoil

$29.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 92-4852

Screw-Recoil Cover

$

$

Not available

11

Lawn-Boy 92-4854

Cover-Starter

$26.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 94-6088-02

Shroud-Engine

$184.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 32144-85

Screw-HH

$1.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 65-2690

Decal-Surface, Hot

$5.49

$

In Stock, only 4 left!

0

15

Lawn-Boy 94-6066-03

Guard-Muffler

$

$

Not available

15

Lawn-Boy 95-5569

ASM-Muffler Guard

$

$

Not available

16

Lawn-Boy 104-0214

Screw-Set,Cone Point
(Superseded to 105-8875)

$10.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 612543

Blade
(Superseded to 612543-03)

$29.99

$

In Stock, Qty 18

0

18

Lawn-Boy 99-6351-03

Fan-Mulching

$32.99

$

In Stock, Qty 14

0

19

Lawn-Boy 93-4196-03

Shield-Grass

$13.99

$

In Stock, only 3 left!

0
