10342 - Lawn-Boy Green Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) ENGINE ASSEMBLY Parts Diagram

Green Series Walk-Behind Mower

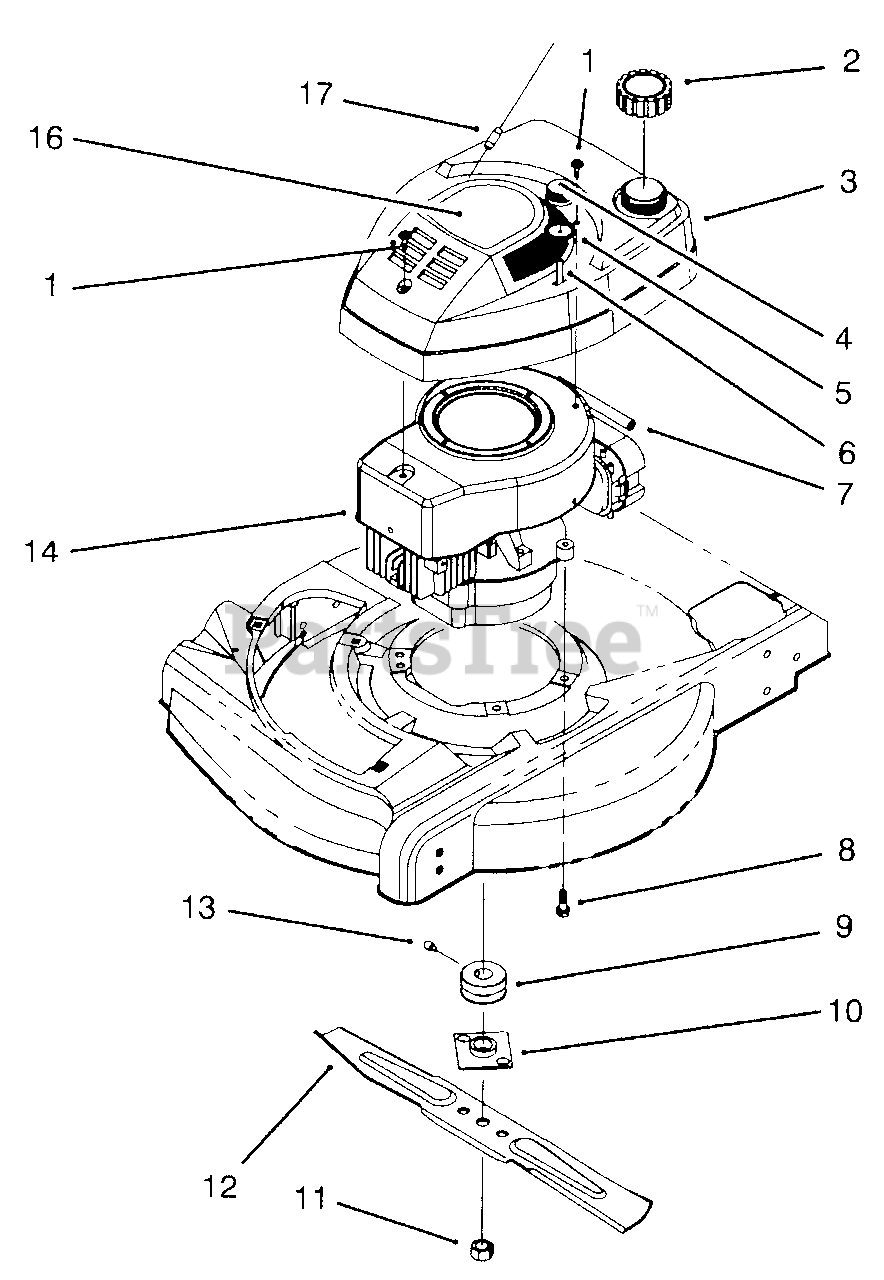

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614689

Screw-Sems
(Superseded to 93-4302)

$8.49

$

In Stock, Qty 12

0

2

Lawn-Boy 684751

Cap-Gas
(Superseded to 98-8344)

$25.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 92-8619

Shroud-Tank
(Superseded to 92-6380)

$138.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 66-7460

Bulb-Primer

$6.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 44-2750

Body-Primer

$9.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 4403174

Hose-Primer

$

$

Currently unavailable

7

Lawn-Boy 612782

Line-Gas

$7.99

$

In Stock, Qty 6

0

8

Lawn-Boy 92-1624

Screw-Engine
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-6542

Pulley-Engine

$99.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 677525

Plate & Collar

$47.99

$

In Stock, Qty 7

0

11

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$6.49

$

In Stock, only 4 left!

0

12

Lawn-Boy 612543

Blade-21 "
(Superseded to 612543-03)

$31.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 613227

Screw-Set
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

14

Engine

$

$

Not available

16

Lawn-Boy 92-8009

Decal-Shroud

$

$

Not available

17

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$8.49

$

Usually ships in 3-6 days

0
