10344 - Lawn-Boy Green Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) COVER & SHIELD ASSEMBLY Parts Diagram

Green Series Walk-Behind Mower

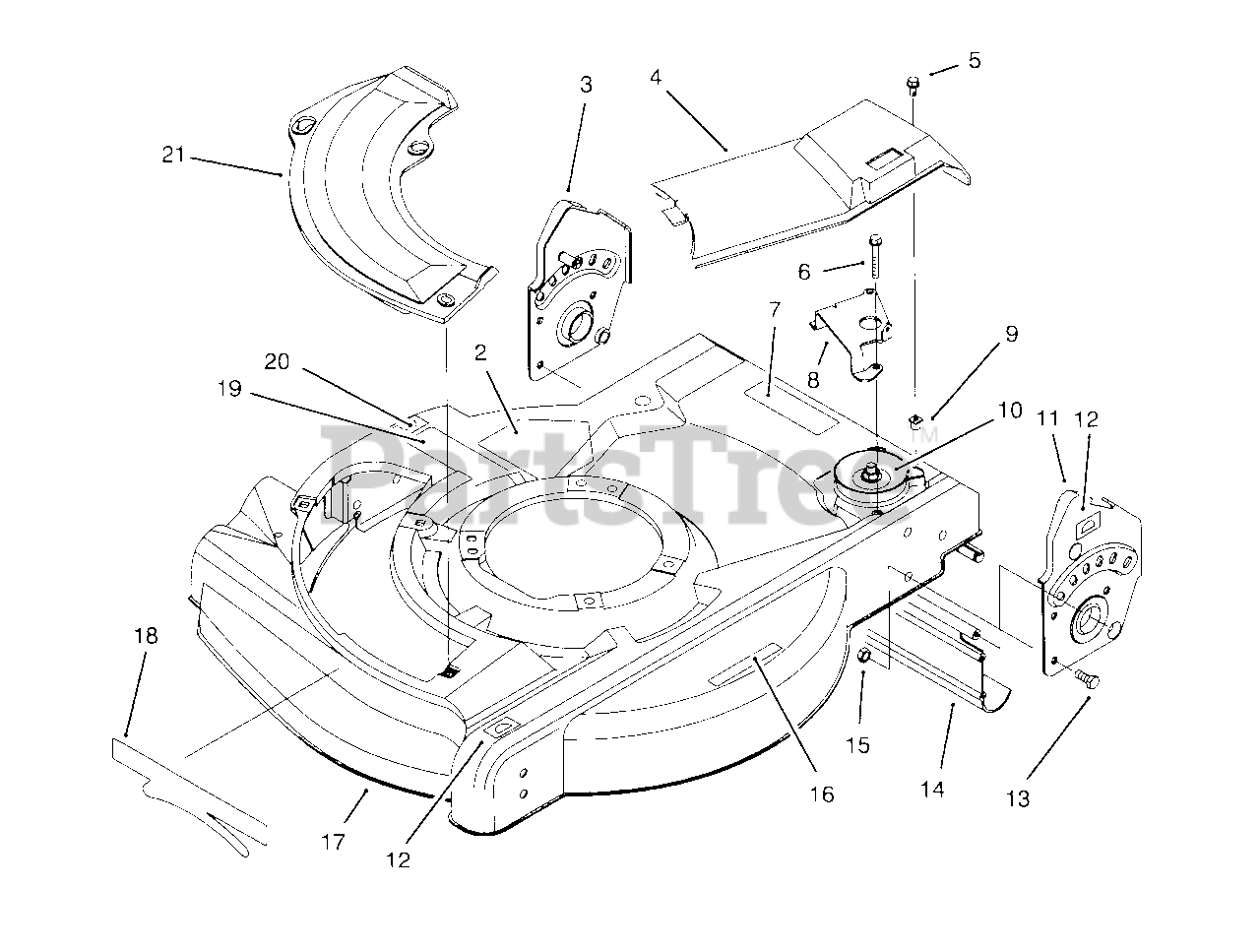

COVER & SHIELD ASSEMBLY Parts Diagram

  • Title

2

Lawn-Boy 39-5770

Decal-Danger

$7.99

$

In Stock, Qty 8

0

3

Lawn-Boy 92-7723

Bracket-Handle R.H.
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 92-8649

Cover-Drive

$

$

Not available

5

Lawn-Boy 92-9665

Screw-Phillips

$1.99

$

In Stock, Qty 11

0

6

Lawn-Boy 49-2040

Hd. Screw-Hex Hd.

$2.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 92-4981

Cap Decal-Warning

$4.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 92-7728

Guide-Transmission
(Superseded to 92-7728-03)

$7.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 605120

Grommet

$3.99

$

In Stock, Qty 16

0

10

Lawn-Boy 92-7735

Gear Case
(Superseded to 104-7671)

$

$

Not available

11

Lawn-Boy 92-7724

Assembly Bracket-Handle L.H.
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-2915

Decal-H.O.C.

$5.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 322-3

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 92-8647

Shield-Trailing

$35.99

$

In Stock, Qty 9

0

15

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 71-1280

Decal-Warning

$31.99

$

In Stock, Qty 13

0

17

Lawn-Boy 16-4369

Housing & Baffle Assembly
(Superseded to 98-4477)

$293.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-8006

Decal-Deck

$

$

Not available

19

Lawn-Boy 92-1097

Decal-Discharge

$

$

Not available

20

Lawn-Boy 92-2914

Decal-H.O.C.

$

$

Not available

21

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

$30.99

$

In Stock, only 1 left!

0
