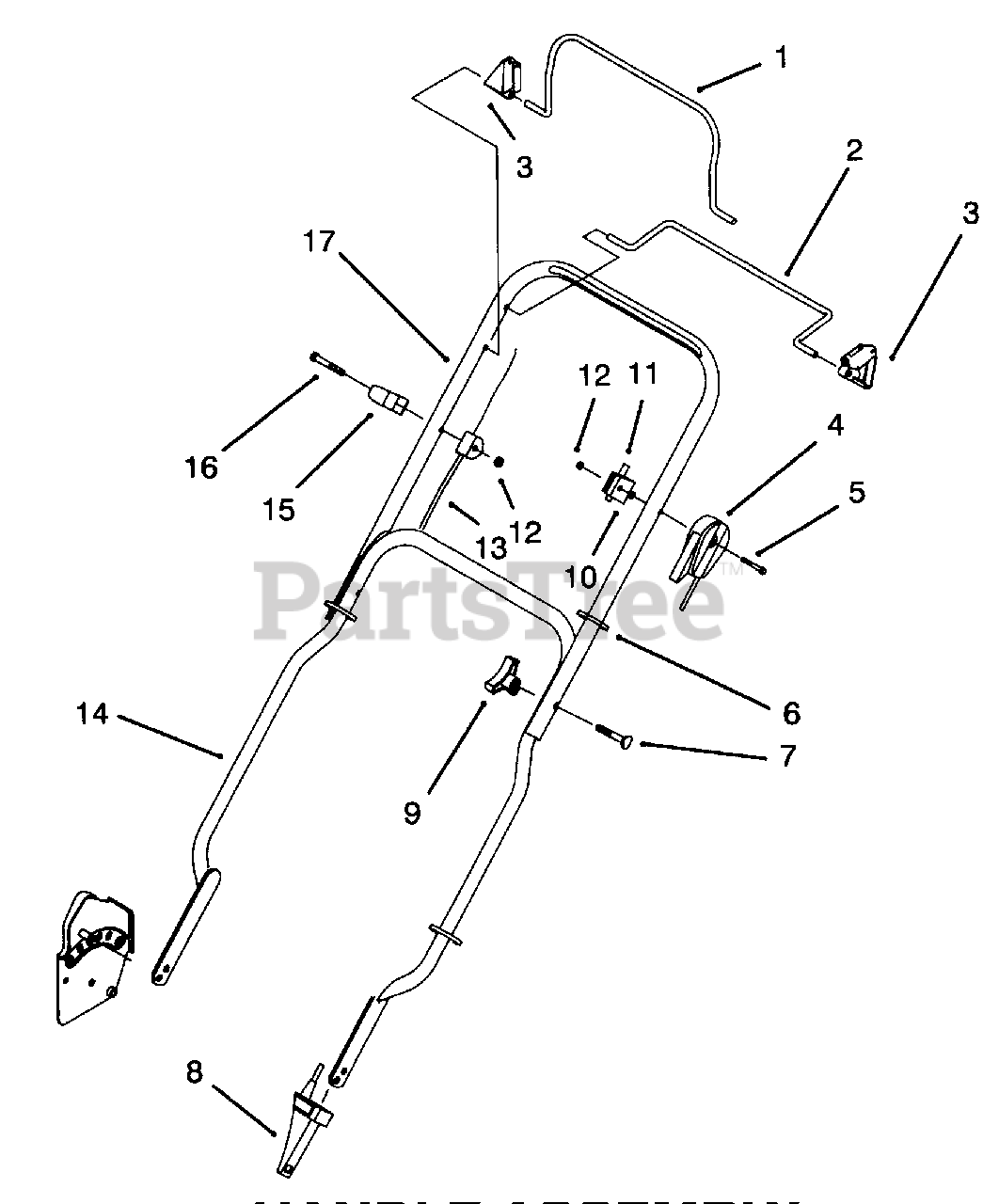

10345 - Lawn-Boy Green Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) HANDLE ASSEMBLY Parts Diagram

Green Series Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-1002

Bail-Flywheel Brake
(Superseded to 92-1002-03)

$

$

Not available

2

Lawn-Boy 92-1001

Bail-SP Control
(Superseded to 92-1001-03)

$50.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 92-8622

Cable-Throttle

$65.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 321-49

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 9

0

6

Lawn-Boy 614249

Strap-Tie

$1.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 614693

Anchor-Cable SP Lower
(Superseded to 93-7380)

$12.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 92-7729

Anchor-Cable SP Upper

$4.99

$

In Stock, Qty 19

0

11

Lawn-Boy 92-7726

Cable-Traction
(Superseded to 95-5590)

$29.99

$

In Stock, Qty 13

0

12

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-7739

Cable-Flywheel Brake

$65.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-8623

Handle-Lower

$

$

Not available

15

Lawn-Boy 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 16

0

16

Lawn-Boy 321-50

Screw-Hex Hd Cap

$1.99

$

In Stock, only 4 left!

0

17

Lawn-Boy 92-7737

Handle-Upper
(Superseded to 92-7737-05)

$

$

Not available
