1036 Sprint (1690534) - AGCO Sprint 36" Rear-Engine Riding Mower, 10hp 36" Linkage & Roller Support Group Parts Diagram

Sprint 36" Rear-Engine Riding Mower, 10hp

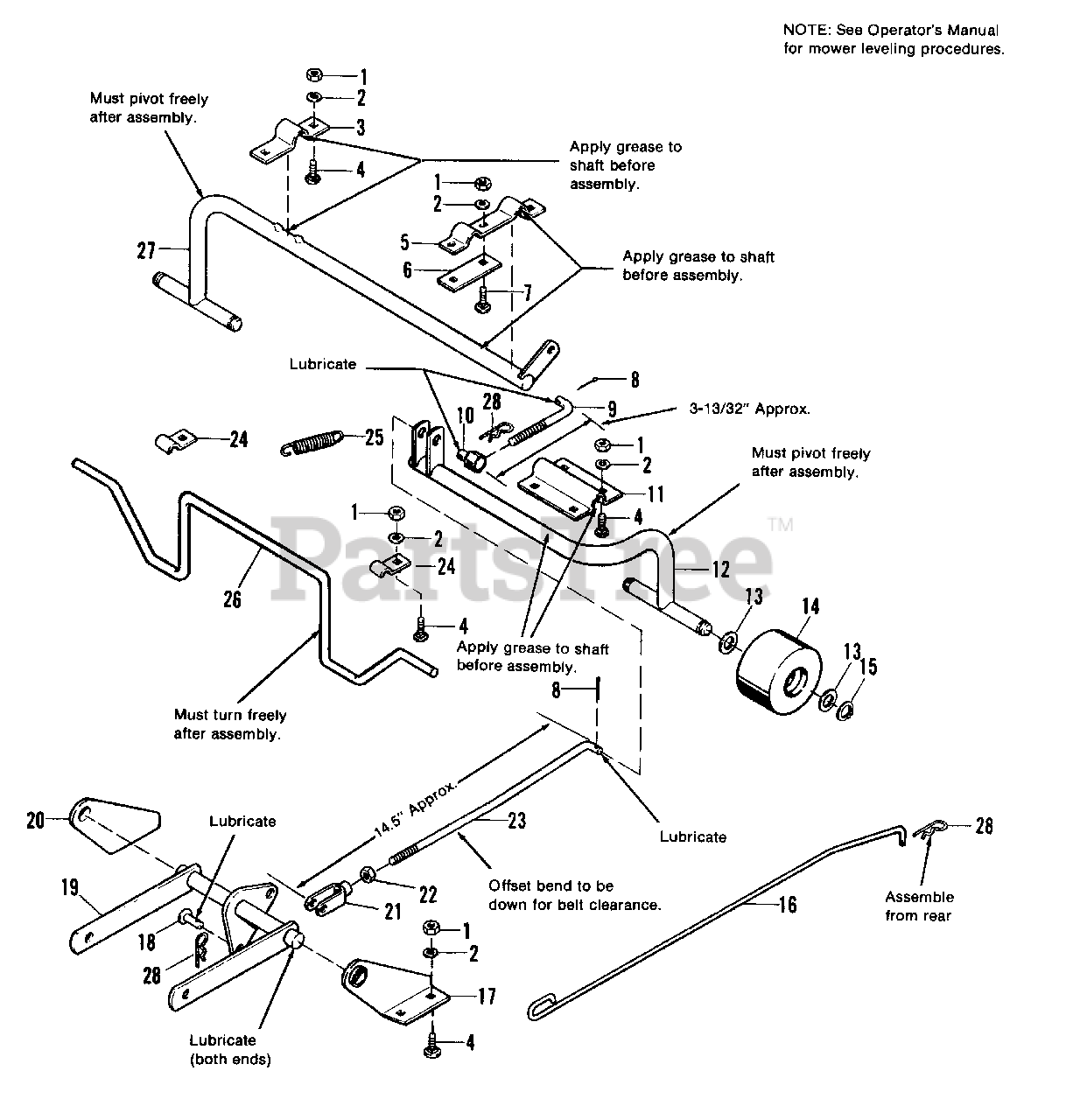

36" Linkage & Roller Support Group Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1663942

STRAP

$

$

Not available

4

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1663943

CLAMP, Wheel Support

$

$

Not available

6

Simplicity 1664002

SPACER

$

$

Not available

7

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

8

Simplicity 1918447SM

PIN, cotter 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1655811SM

ROD, Bolt

$20.99

$

In Stock, only 1 left!

0

10

Simplicity 2108512SM

PIVOT

$36.99

$

In Stock, only 2 left!

0

11

Simplicity 1653768ASM

CLAMP

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 1663945

WHEEL SUPPORT ASSY., L.H.

$

$

Not available

13

Simplicity 1960020SM

WASHER, 41/64

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1668487SM

ROLLER

$9.99

$

In Stock, Qty 20+

0

15

Simplicity 2153124SM

RING, Retainer

$5.99

$

In Stock, Qty 20+

0

16

Simplicity 1665900

ROD, Brake

$

$

Not available

17

Simplicity 1663936

BRACKET, Front, L.H.

$

$

Not available

18

Simplicity 1923087SM

PIN, Yoke

$9.49

$

In Stock, only 2 left!

0

19

Simplicity 1664848

SUPPORT ARM ASSY.

$

$

Not available

20

Simplicity 1663937

BRACKET, Front, R.H.

$

$

Not available

21

Simplicity 2108157SM

CLEVIS, Adjusting

$24.99

$

Usually ships in 2-12 days

0

22

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

23

Simplicity 1663938

ROD, Link

$

$

Not available

24

Simplicity 1664004SM

CLIP

$6.49

$

Usually ships in 2-12 days

0

25

Simplicity 2175290

SPRING

$

$

Not available

26

Simplicity 1703113

BRAKE, Mower

$

$

Not available

27

Simplicity 1663947SM

WHEEL SUPPORT ASSY., R.H.

$51.99

$

Usually ships in 2-12 days

0

28

Simplicity 1960074SM

CLIP, Hairpin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0
