1036 Sprint (1691113) - AGCO Sprint Rear-Engine Riding Mower, 10hp Electrical Group - Early Models Parts Diagram

Sprint Rear-Engine Riding Mower, 10hp

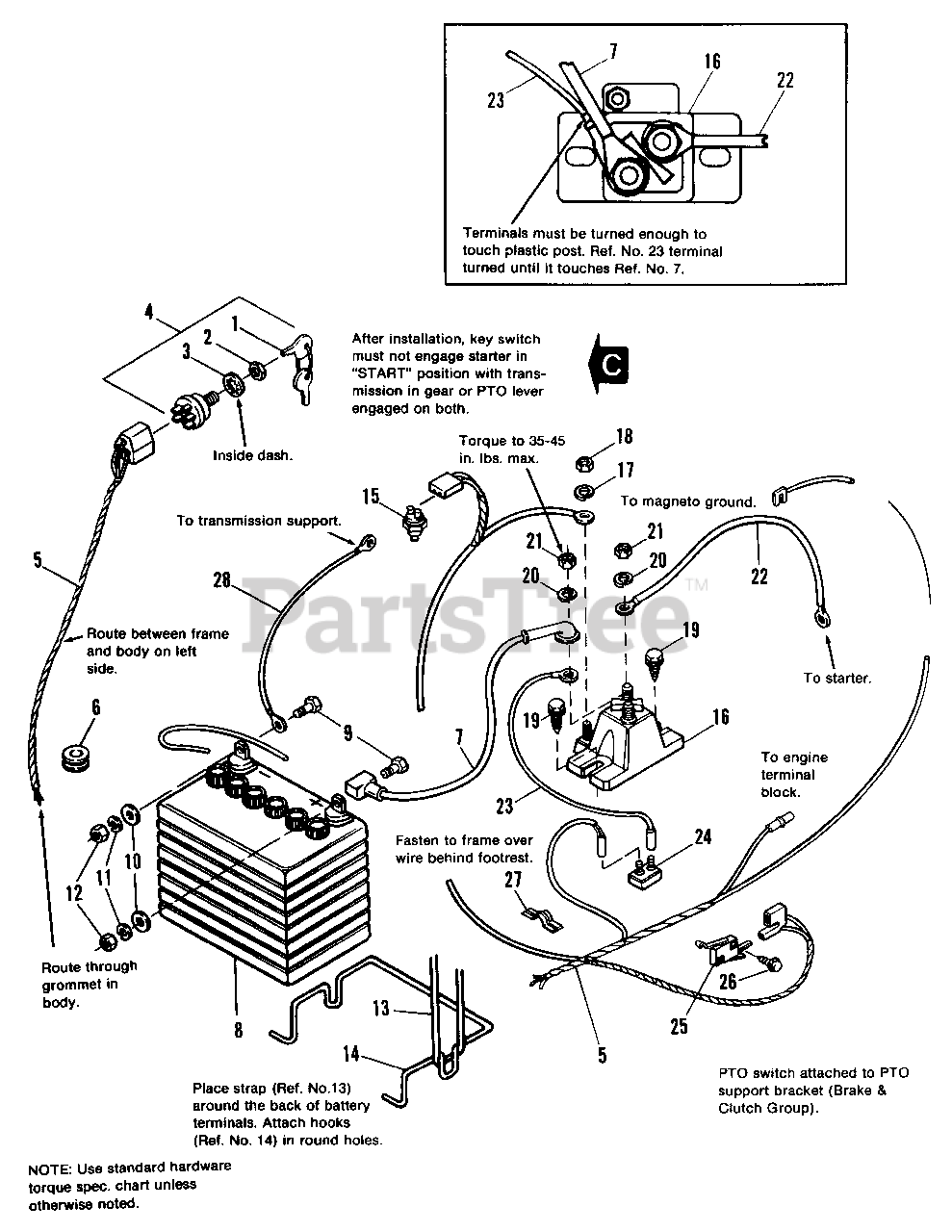

Electrical Group - Early Models Parts Diagram

  • Title

1

Simplicity 1717163SM

KEY

$9.49

$

In Stock, Qty 7

0

2

Simplicity 2122234SM

NUT
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8

$4.49

$

In Stock, Qty 8

0

4

Simplicity 2178280SM

SWITCH, Key (Incl. Ref. Nos. 1, 2 & 3)
(Superseded to 421064MA)

$34.99

$

In Stock, Qty 5

0

5

Simplicity 1664466

HARNESS ASSY.

$

$

Not available

6

Simplicity 2173420

GROMMET

$

$

Not available

7

Simplicity 1677297SM

CABLE ASSY. (Batt. to Solenoid)

$

$

Not available

8

Simplicity 1685215SM

BATTERY, 12 Volt

$

$

Not available

9

Simplicity 1923341SM

CAPSCREW, Hex, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 17

0

13

Simplicity 1665872SM

STRAP, Battery

$11.99

$

In Stock, Qty 5

0

14

Simplicity 1667805SM

BRACE, Battery

$18.99

$

Usually ships in 2-12 days

0

15

Simplicity 1654634SM

SWITCH, Transmission Interlock

$49.99

$

Usually ships in 2-12 days

0

16

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$25.99

$

In Stock, Qty 15

0

17

Simplicity 1922711

LOCKWASHER, #10

$

$

Not available

18

Simplicity 1917415SM

NUT, Hex, Machine, #10-32

$2.99

$

Usually ships in 2-12 days

0

19

Simplicity 2825592SM

SCREW, Hex, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 1917372SM

LOCKNUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

22

Simplicity 1603618SM

CABLE ASSY. (Solenoid to Starter)

$12.99

$

In Stock, only 2 left!

0

23

Simplicity 1665237SM

WIRE ASSY.

$12.99

$

In Stock, only 1 left!

0

24

Simplicity 1665238SM

BREAKER, Circuit

$12.99

$

In Stock, Qty 7

0

25

Simplicity 1686951SM

SWITCH, P.T.O. Interlock

$

$

Not available

26

Simplicity 1935944SM

SCREW, Hex, Taptite, #50-40 x 3/4

$

$

Not available

27

Simplicity 176912

CLIP, Wire

$

$

Not available

28

Simplicity 1671158SM

CABLE (Battery to Ground)

$15.99

$

Usually ships in 2-12 days

0
