10360 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) RECOIL STARTER NO. 590737 Parts Diagram

Silver Series Walk-Behind Mower

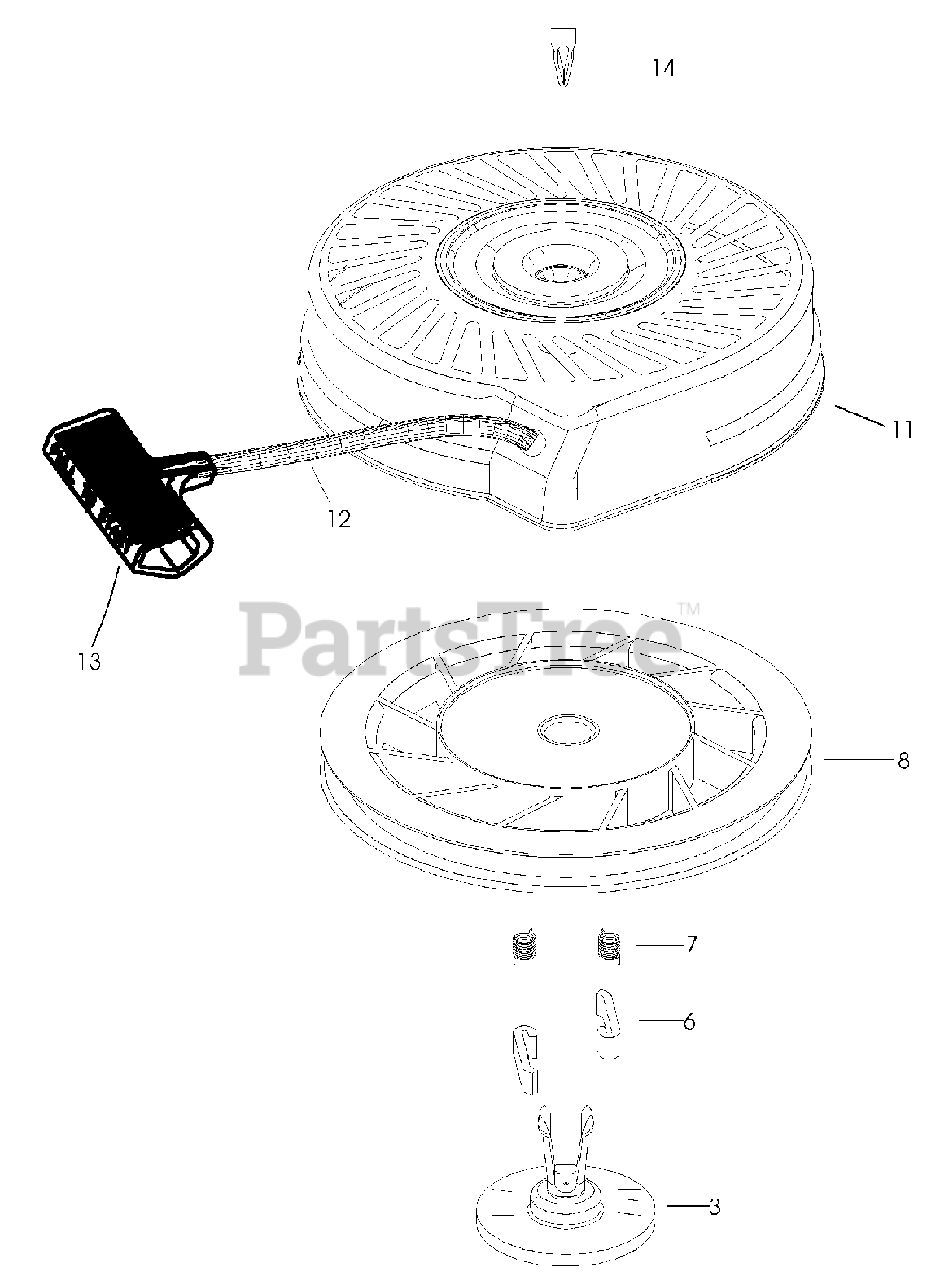

RECOIL STARTER NO. 590737 Parts Diagram

  • Title

Lawn-Boy 590737

Rewind Starter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

3

Lawn-Boy 590740

Retainer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 590616

Starter Dog

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 590617

Dog Spring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

8

Lawn-Boy 590618A

Pulley & Rewind Spring ASM

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

11

Lawn-Boy 590687A

Starter Housing ASM (40 degree grommet)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 590535

Starter Rope (Length 98" x 9/64" dia.)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

13

Lawn-Boy 590701

Starter Handle

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 590760

Spring Clip

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable
