10360 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE AND BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

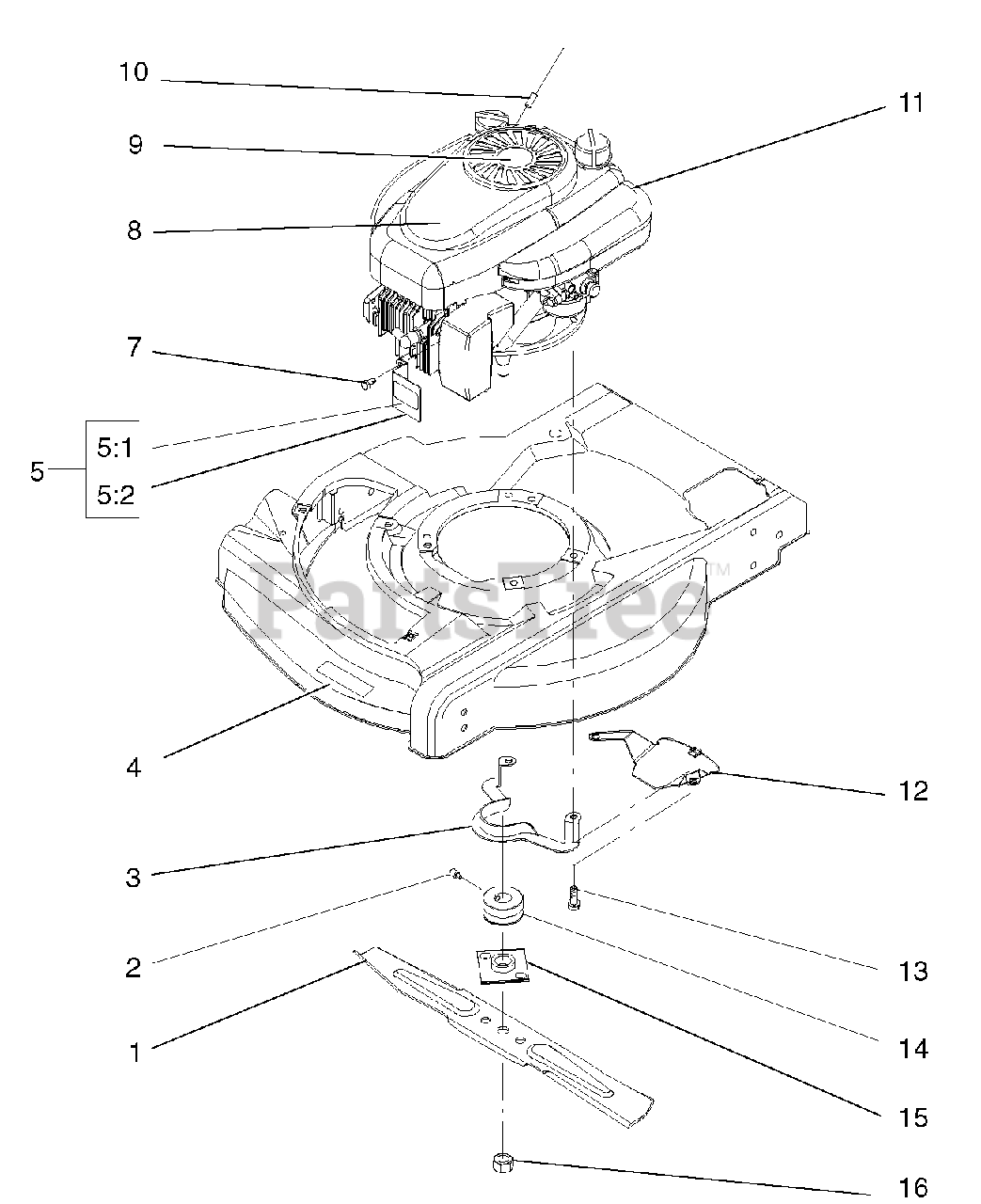

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 612543-03

Blade

$29.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 104-0214

Screw-Set,Cone Point
(Superseded to 105-8875)

$10.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 92-1024-03

Guide-Belt

$

$

Not available

4

Lawn-Boy 104-7955

Decal-Deck

$17.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 95-5569

ASM-Muffler Guard

$

$

Not available

5:1

Lawn-Boy 65-2690

Decal-Surface, Hot

$5.49

$

In Stock, only 4 left!

0

5:2

Lawn-Boy 94-6066-03

Guard-Muffler

$

$

Not available

7

Lawn-Boy 32144-85

Screw-HH

$1.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 98-1593

Applique

$24.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 104-7684

Decal-Recoil,5hp

$11.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 100-5998

Engine (Tecumseh Lev115-350181e)

$

$

Currently unavailable

12

Lawn-Boy 93-4196-03

Shield-Grass

$13.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 95-1726

Screw-Taptite W/Patch

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 95-1878

Pulley

$55.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 105-1256

Blade Retainer ASM

$41.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 7

0
