10363 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE AND BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

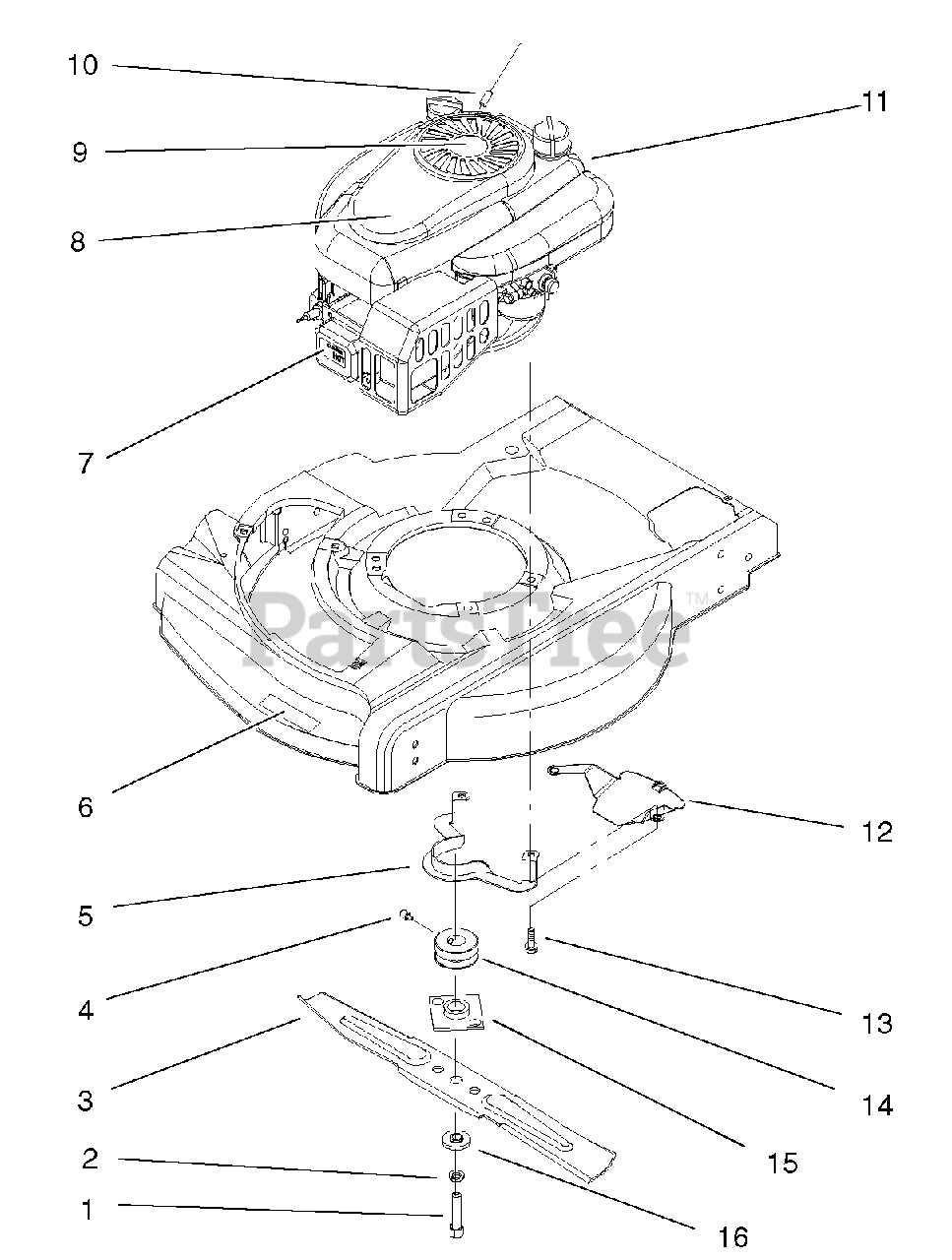

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 100-5019

Bolt-Blade

$27.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 3253-22

Washer-Lock

$2.99

$

In Stock, Qty 5

0

3

Lawn-Boy 612543-03

Blade

$29.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 104-0214

Screw-Set,Cone Point
(Superseded to 105-8875)

$10.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 92-1024-03

Guide-Belt

$

$

Not available

6

Lawn-Boy 104-7955

Decal-Deck

$17.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 65-2690

Decal-Surface, Hot

$5.49

$

In Stock, only 4 left!

0

8

Lawn-Boy 98-1593

Applique

$24.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 104-7685

Decal-Recoil

$

$

Not available

10

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 100-1033

Engine-Centura Ohv,Zs

$

$

Currently unavailable

12

Lawn-Boy 93-4196-03

Shield-Grass

$13.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 95-1727

Screw-Taptite

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 95-1878

Pulley

$55.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 100-2899

Plate & Collar ASM

$27.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 92-8626

Spacer-Blade

$13.99

$

Usually ships in 3-6 days

0
