10367 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

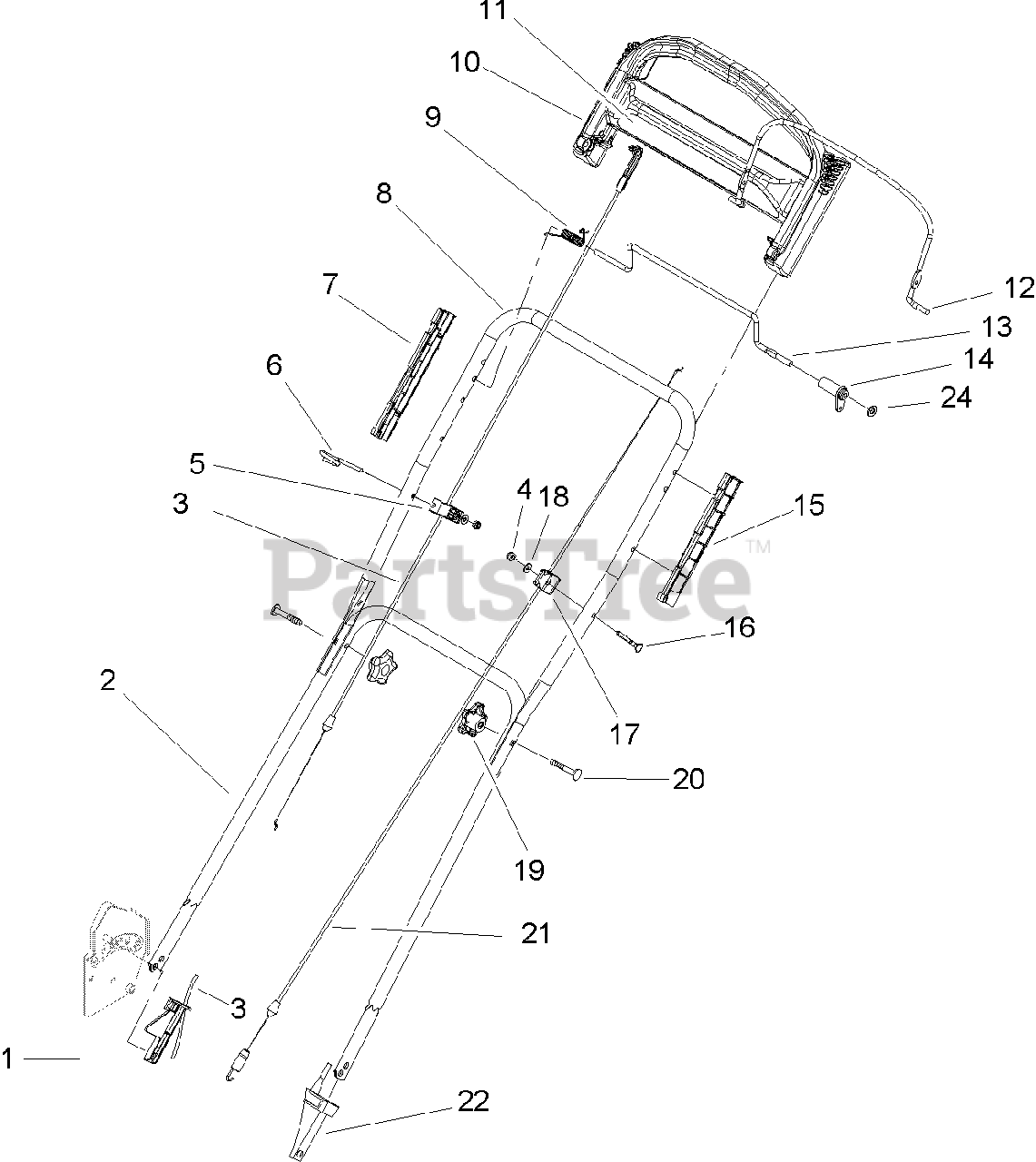

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 104-1013

GUARD-CABLE

$15.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 614643-05

HANDLE-LOWER

$

$

Not available

3

Lawn-Boy 106-8349

CABLE-BRAKE

$97.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 106-8331

ANCHOR-CABLE

$5.49

$

In Stock, Qty 9

0

6

Lawn-Boy 106-8330

GUIDE-ROPE

$5.49

$

In Stock, only 4 left!

0

7

Lawn-Boy 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 7

0

8

Lawn-Boy 106-8327-05

HANDLE-UPPER

$

$

Not available

9

Lawn-Boy 104-8690

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 104-8678

HANDLE-CONTROL

$81.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 106-8329

DECAL-HANDLE

$

$

Not available

12

Lawn-Boy 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$15.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, Qty 7

0

14

Lawn-Boy 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 13

0

15

Lawn-Boy 105-6842

GUIDE-LH

$8.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 19

0

18

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 614697

SCREW

$2.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 105-1844

Cable-Traction

$22.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 93-7380

ANCHOR-CABLE

$12.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0
