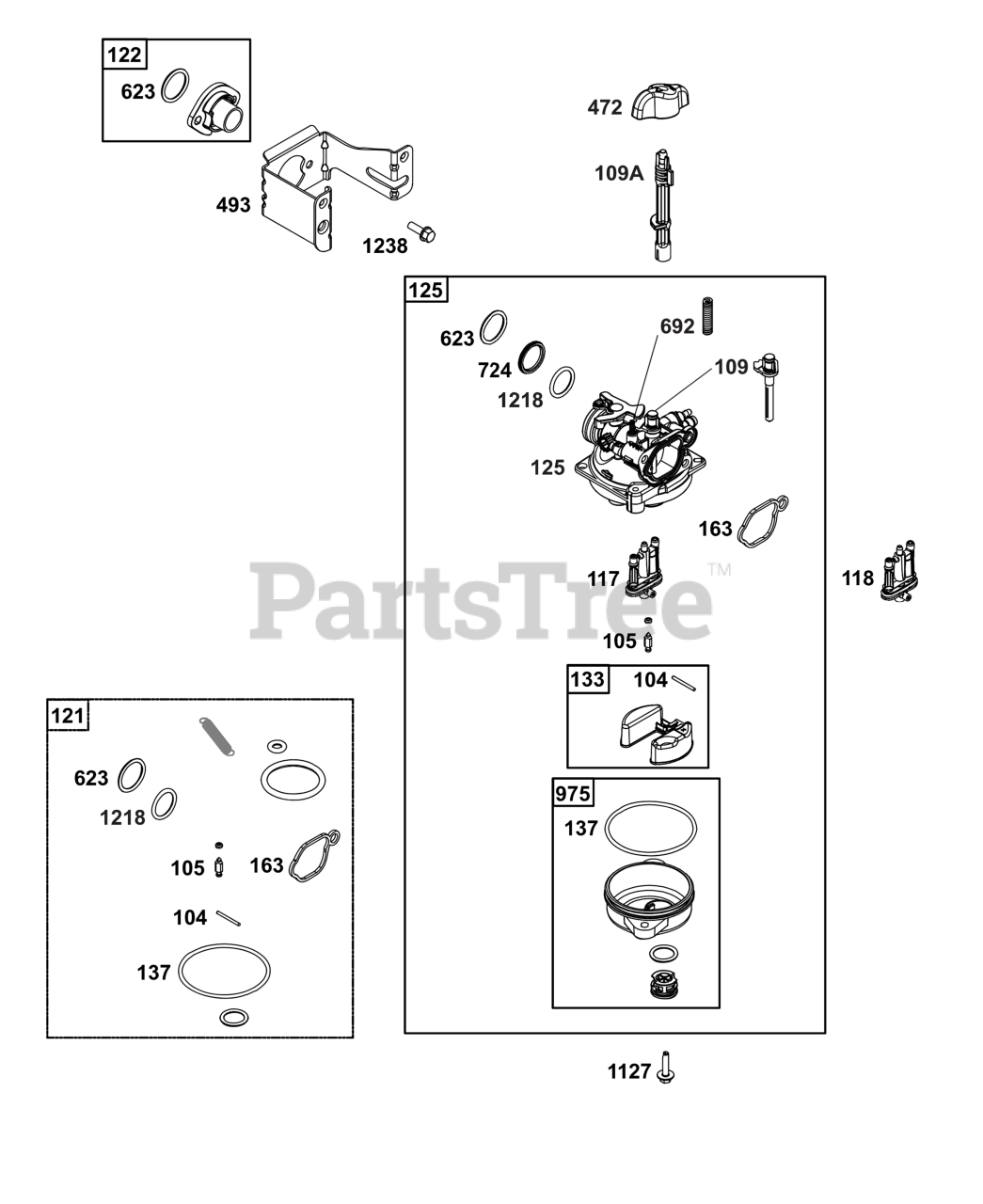

103M02-0107-F1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

Carburetor Group Parts Diagram

  • Title

104

Briggs & Stratton 590558

PIN, Float Hinge

$4.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 594581

VALVE, Float Needle

$7.49

$

In Stock, Qty 9

0

109

Briggs & Stratton 597117

SHAFT, Choke

$20.99

$

Usually ships in 2-12 days

0

109A

Briggs & Stratton 597116

SHAFT, Choke

$21.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 595922

JET, Main

Note: (Standard)

$7.99

$

In Stock, Qty 10

0

118

Briggs & Stratton 595923

JET, Main

Note: (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

121

KIT, Carburetor Overhaul

Note: (Part information located in Service Parts and Tools Group.)

$

$

Not available

122

Briggs & Stratton 590549

SPACER, Carburetor

$10.99

$

In Stock, only 3 left!

0

125

Briggs & Stratton 596582

CARBURETOR

$69.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 591120

FLOAT, Carburetor

$13.99

$

In Stock, only 1 left!

0

137

Briggs & Stratton 594633

GASKET, Float Bowl

$15.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 799580

GASKET, Air Cleaner

Note: (Air Cleaner)

$5.99

$

In Stock, Qty 9

0

472

Briggs & Stratton 597110

KNOB, Choke Shaft

$7.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 593330

BRACKET, Mounting

$9.99

$

In Stock, only 1 left!

0

623

Briggs & Stratton 799581

SEAL, O-Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, Qty 11

0

692

Briggs & Stratton 590931

SPRING, Detent

$5.49

$

In Stock, only 1 left!

0

724

Briggs & Stratton 697478

RETAINER, Seal

$4.99

$

In Stock, Qty 7

0

975

Briggs & Stratton 594632

BOWL, Float

$17.99

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 590554

SCREW

Note: (Float Bowl to Carburetor Body)

$3.99

$

In Stock, only 2 left!

0

1218

Briggs & Stratton 270344S

SEAL, O-Ring

Note: (Carburetor)

$3.49

$

In Stock, Qty 20+

0

1238

Briggs & Stratton 590562

SCREW

Note: (Carburetor Spacer)

$3.49

$

In Stock, only 1 left!

0
