104-2800 - Toro Hydraulic Cooler Kit for Dingo TX Compact Utility Loader COOLER ASSEMBLY Parts Diagram

Hydraulic Cooler Kit for Dingo TX Compact Utility Loader

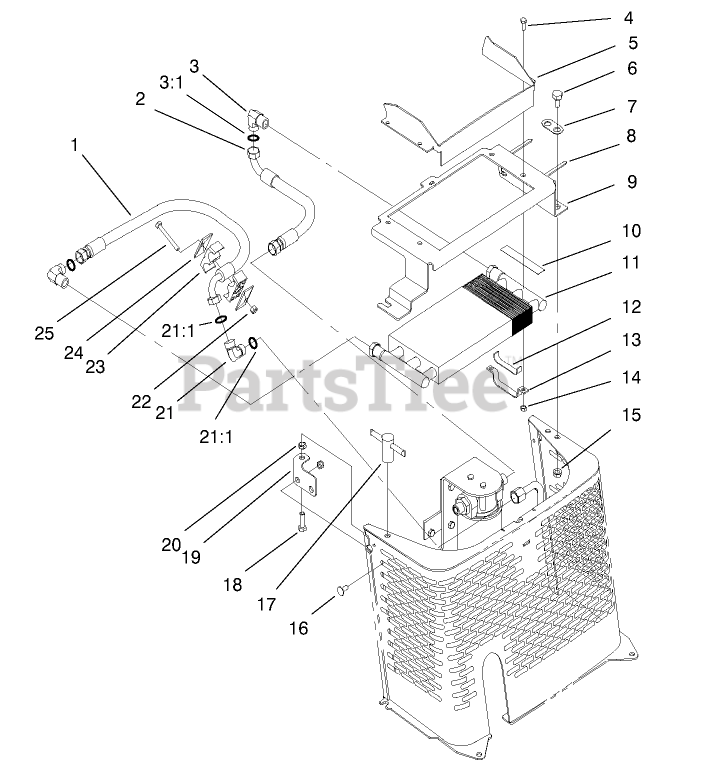

COOLER ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2807

HOSE-HYD

$136.99

$

Usually ships in 3-6 days

0

2

Toro 104-2806

HOSE-HYD

$226.99

$

Usually ships in 3-6 days

0

3

Toro 340-168

ADAPTER-ELBOW, 90 DEG

$50.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 104-2802-03

SHIELD-COOLER

$134.99

$

Usually ships in 3-6 days

0

6

Toro 46-3380

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

7

Toro 104-2804

WASHER-PIVOT

$

$

Not available

8

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

9

Toro 104-2801-03

BRACKET-COOLER

$

$

Not available

10

Toro 94-9566

PAD-FOOTREST

$6.49

$

Usually ships in 3-6 days

0

11

Toro 24-0760

COOLER ASM

$

$

Not available

12

Toro 104-2816

PAD-SUPPORT

$25.99

$

Usually ships in 3-6 days

0

13

Toro 104-2803

SUPPORT-COOLER

$53.99

$

Usually ships in 3-6 days

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3230-31

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

17

Toro 104-2819

HOLDDOWN ASM

$

$

Not available

18

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 104-2805-03

BRACKET-HOLDDOWN

$

$

Not available

20

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

21

Toro 340-163

ELBOW-90 DEG

$51.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 56-7974

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

0

24

Toro 69-9761

PLATE-COVER

$9.99

$

Usually ships in 3-6 days

0

25

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0
