104-4671 - Toro Sales Kit for 522xi Indy Special Edition Tractor Oil Pan/lubrication-Kohler #ch22s-Ps-66545 Parts Diagram

Sales Kit for 522xi Indy Special Edition Tractor

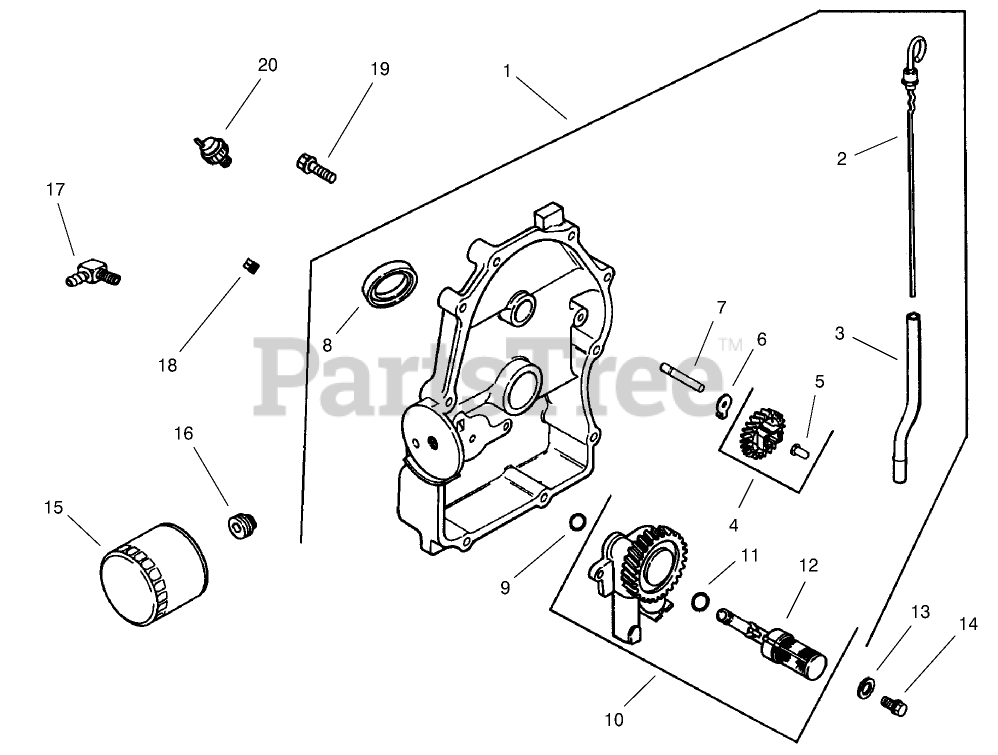

Oil Pan/lubrication-Kohler #ch22s-Ps-66545 Parts Diagram

  • Title

1

Toro 54 009 01

Plate, closure assembly (Includes 2-12)

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

2

Toro 24 038 06

Dipstick

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

3

Toro 24 123 08

Tube-Dipstick

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

4

Toro 24_043_12

Kit-Governor Gear Assembly (Incl. Ref. #7)

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

5

Toro 12_380_01

Pin-Governor

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

6

Toro 52_448_02

Tab-Locking

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

7

12_144_02

Shaft-Govenor Gear

Note: Obtain parts from you local Kohler dealer

$

$

Not available

8

Toro 52_032_08

Seal-Oil

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

9

Toro 24_153_08

O Ring

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

10

Toro 24 393 10

Oil pump assembly (Includes 11, 12)

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

11

Toro 24_153_01

ORing

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

12

Toro 24 381 04

Pick Up-Oil

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

13

Toro M-0631005

Washer

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

14

Toro M-0645025

Screw

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

15

12_050_01

Filter-Oil

Note: Obtain parts from you local Kohler dealer

$

$

Not available

16

Toro 24_136_01

Nipple-Oil Filter

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

17

Toro 25 155 02

Connector

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

18

Toro X-75-23

Plug

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

19

Toro 24_086_16

Screw

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

20

Toro 52_099_06

Switch-Oil Pressure

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

Toro 25 113 05

Decal-Oil Sentry

Note: Obtain parts from you local Kohler dealer

$

$

Currently unavailable

Toro 25 113 05

Decal-Oil Sentry

Note: Not illustrated

$

$

Currently unavailable
