1040-0 - Generac 2,000 PSI Pressure Washer Pressure Washer Parts Diagram

2,000 PSI Pressure Washer

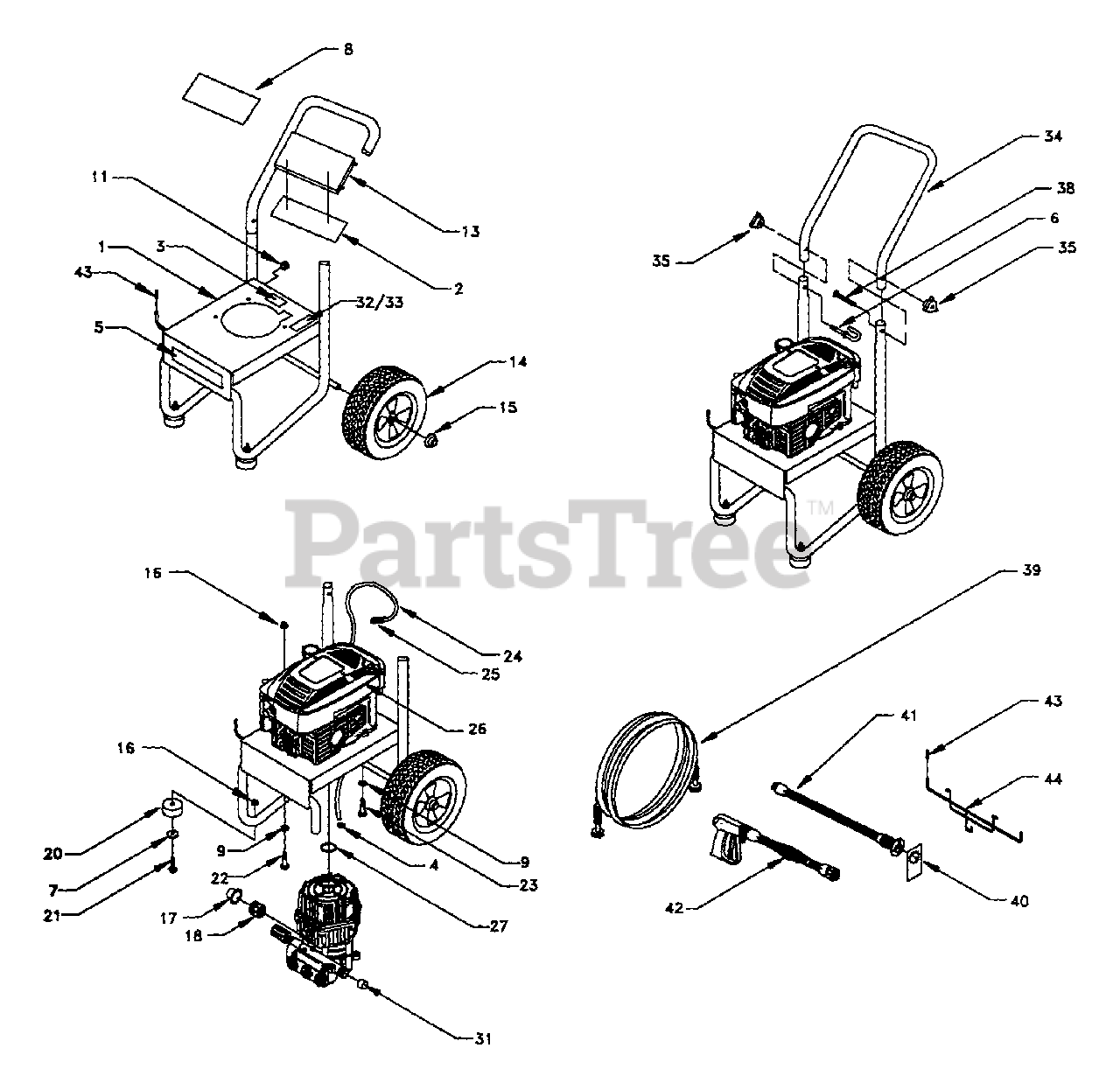

Pressure Washer Parts Diagram

  • Title

1

Briggs & Stratton B2058A

BASE, VSPW

$

$

Currently unavailable

2

Briggs & Stratton B1932

DECAL, Instructions
(Superseded to B1932GS)

$15.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 20566

DECAL, 1-800 Number
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 48031G

CLAMP, Hose 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B2192

DECAL, GENERAC
(Superseded to B2192GS)

$17.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1730

BOLT, Eye

$

$

Not available

7

Briggs & Stratton 50190

WASHER, M8 Flat
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2060

DECAL, Logo 2000 PSI
(Superseded to B2060GS)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22145

WASHER, M8 Flat

$

$

Not available

11

Briggs & Stratton 30809

GROMMET, Chem Hose
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B1631B

BILLBOARD, Plastic
(Superseded to B1631BGS)

$29.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B1760

TIRE, 3.5" X 10" Black Mag
(Superseded to B1760GS)

$81.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

16

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton A1408

CAP, Garden Hose Inlet
(Superseded to A1408GS)

$2.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 27007

MOUNT, Rubber Foot
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 8

0

21

Briggs & Stratton B1214

HHCS, M8 X 1.25 X 45 Long
(Superseded to B1214GS)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 39414

HHCS, M8 x 35
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 52265

HHCS, M8 x 65
(Superseded to 52265GS)

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1040B

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton B2216

ENGINE, Briggs & Stratton 6HP Quantum

$

$

Currently unavailable

27

Briggs & Stratton A2097

SEAL, Engine Donut
(Superseded to A2097GS)

$5.49

$

Usually ships in 2-12 days

0

30

-----

PUMP

Note: (For replacement, orfder 193461GS)

$

$

Not available

30

Briggs & Stratton 193461GS

REPLACEMENT PUMP ASSEMBLY

Note: (Must also order 208673GS Thermal Relief Valve)

$371.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 208673GS

VALVE, Relief, Thermal

$14.99

$

In Stock, Qty 16

0

31

Briggs & Stratton 97100

CAP, High Pressure
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 88056

DECAL, Data

$

$

Currently unavailable

33

Briggs & Stratton 79552

OVERLAMINATE

$

$

Not available

34

Briggs & Stratton B1945A

HANDLE, VS PW

$

$

Currently unavailable

35

Briggs & Stratton 97178

KNOB, PW Handle
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 31669

BOLT, 1/4"-20 X 1.75" Carriage
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

39

Briggs & Stratton B1969

HOSE, 1/4" X 25'

$

$

Currently unavailable

40

Briggs & Stratton 97566

HANG TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton B1867E

WAND, Adjustable Nozzle
(Superseded to B1867EGS)

$81.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B1861

GUN, High Pressure

$

$

Currently unavailable

43

Briggs & Stratton B1460

CAP, Vinyl Black
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B1953

WIREFORM

$

$

Currently unavailable
