1042-1 - Generac 2,250 PSI Pressure Washer Pressure Washer Parts Diagram

2,250 PSI Pressure Washer

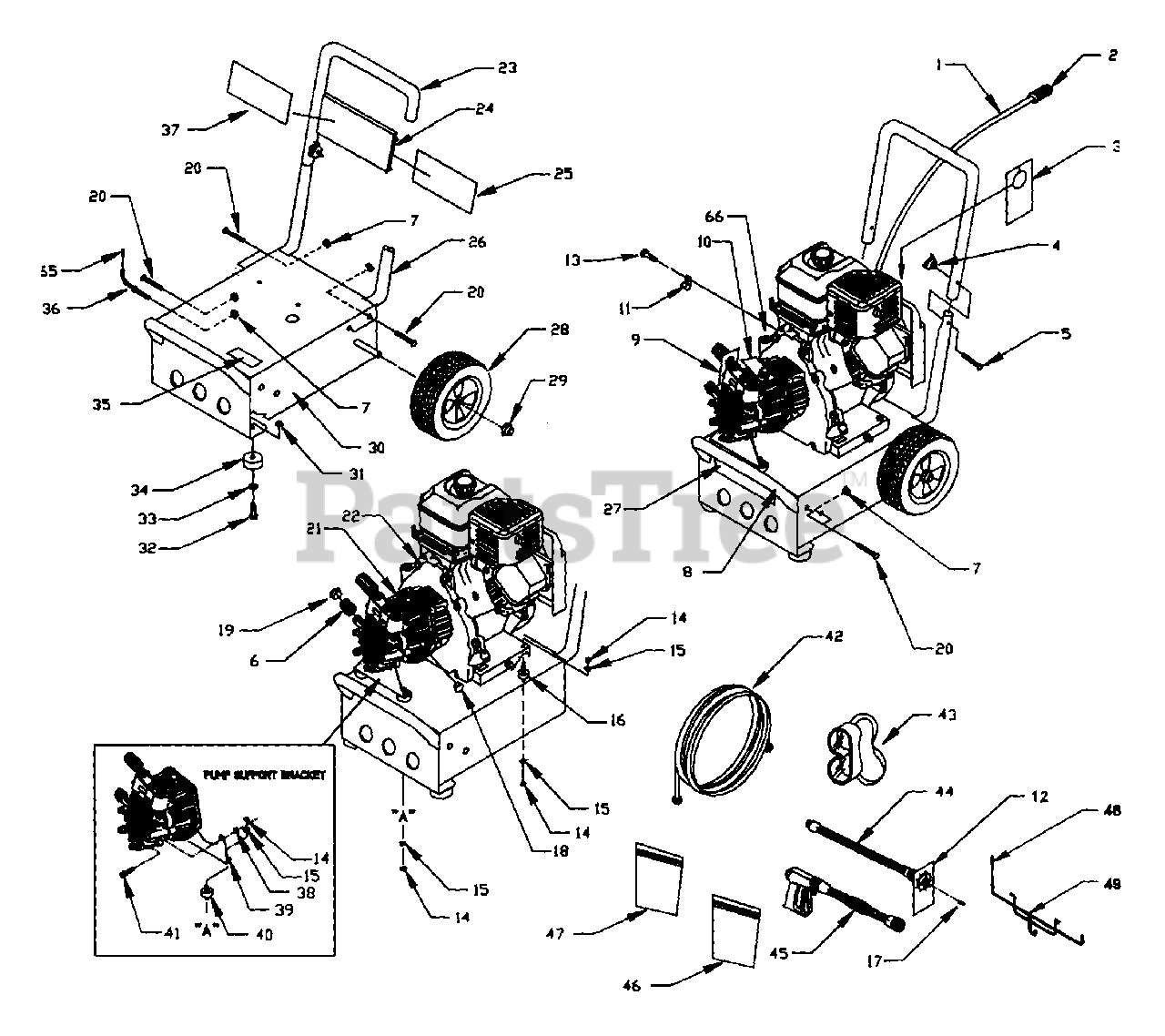

Pressure Washer Parts Diagram

  • Title
1

Briggs & Stratton A1040D

HOSE, 4-1/2' Chemical Clear
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 70453

TAG, Warning Oil
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 97178

KNOB, Handle 1/4-20 PW
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 31669

BOLT, 1/4-20 x 1-3/4 Carriage
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

6

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 99583

NUT, Flange Lock 5/16-28
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B1982

BUMPER
(Superseded to B1982GS)

$53.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 97054

TAG, Pres. Adjust

$

$

Not available

10

Briggs & Stratton B1288

TAG, PW Breather Cap
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2718

CLAMP, Hose 7/16" Dia.

$

$

Currently unavailable

13

Briggs & Stratton 32713

SCREW, Taptite #10-32 x 5/8" Lg
(Superseded to 32713GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 97566

TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 45771

NUT, M8-1.25 Hex

$

$

Not available

15

Briggs & Stratton 22129

LOCKWASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 21217

MOUNT, Rubber Shock
(Superseded to 21217GS)

$7.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B1236F

NOZZLE, Replacement 1.25 mm
(Superseded to B1236FGS)

$19.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 97100

CAP, H.P. Adaptor
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 97098

CAP, Garden Hose Inlet
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B2043

BOLT, 5/16-18 x 1-3/4" Carriage
(Superseded to B2043GS)

$2.99

$

Usually ships in 2-12 days

0

21

-----

ASSEMBLY, Pump

Note: (For Replacement, order 198347GS)

$

$

Not available

21

Briggs & Stratton 198347GS

REPLACEMENT PUMP ASSEMBLY
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

23

Briggs & Stratton B1983

HANDLE
(Superseded to B1983GS)

$69.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B1631A

BILLBOARD, Plastic
(Superseded to B1631AGS)

$35.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B1932

DECAL, Instructions
(Superseded to B1932GS)

$15.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B1981

SUPPORT, Handle
(Superseded to CB1981GS)

$19.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B2192

DECAL, Generac
(Superseded to B2192GS)

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B1760

ASSEMBLY, 10" Tire & Wheel
(Superseded to B1760GS)

$81.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 75402

PUSHNUT, .50 Dia.
(Superseded to 194062GS)

$4.49

$

In Stock, only 3 left!

0

$

$

Not available

31

Briggs & Stratton 52858

NUT, M8 1.25 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 42909

HHCS, M8 1.25 x 30
(Superseded to 42909GS)

$

$

Not available

33

Briggs & Stratton 50190

WASHER, M8 Flat
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 27007

MOUNT, Donut Type Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

35

Briggs & Stratton 20566

DECAL, Generac #1-800
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B2150

HOOK, Gun
(Superseded to B2150GS)

$4.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2146

DECAL, Logo
(Superseded to B2146GS)

$17.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 52857

NUT, M6 1.0 Locking
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 20707

BRACKET, Pump Support

$

$

Not available

40

Briggs & Stratton 21216

MOUNT, Rubber Shock
(Superseded to 5021216)

$142.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 38750

HHCS, M6 1.0 x 30
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B1969

HOSE, High Pressure

$

$

Currently unavailable

43

Briggs & Stratton 87815

GOGGLES, Safety
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B1867F

WAND
(Superseded to B1867FGS)

$95.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B1861

GUN, High Pressure

$

$

Currently unavailable

46

Briggs & Stratton B2203

KIT, Handle Fastening
(Superseded to B2203GS)

$5.49

$

In Stock, only 1 left!

0

47

Briggs & Stratton B2163

KIT, Cleaning

$

$

Currently unavailable

48

Briggs & Stratton B1460

CAP, Vinyl (black)
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B2168

HANGER, Hose, Gun, Jug

$

$

Currently unavailable

65

Briggs & Stratton B2516

CAP, Vinyl (black)
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 95441

SPACER, Engine Pilot
(Superseded to 95441GS)

Note: (not shown)

$8.49

$

Usually ships in 2-12 days

0
