1042-2 - Generac 2,250 PSI Pressure Washer Pressure Washer Parts Diagram

2,250 PSI Pressure Washer

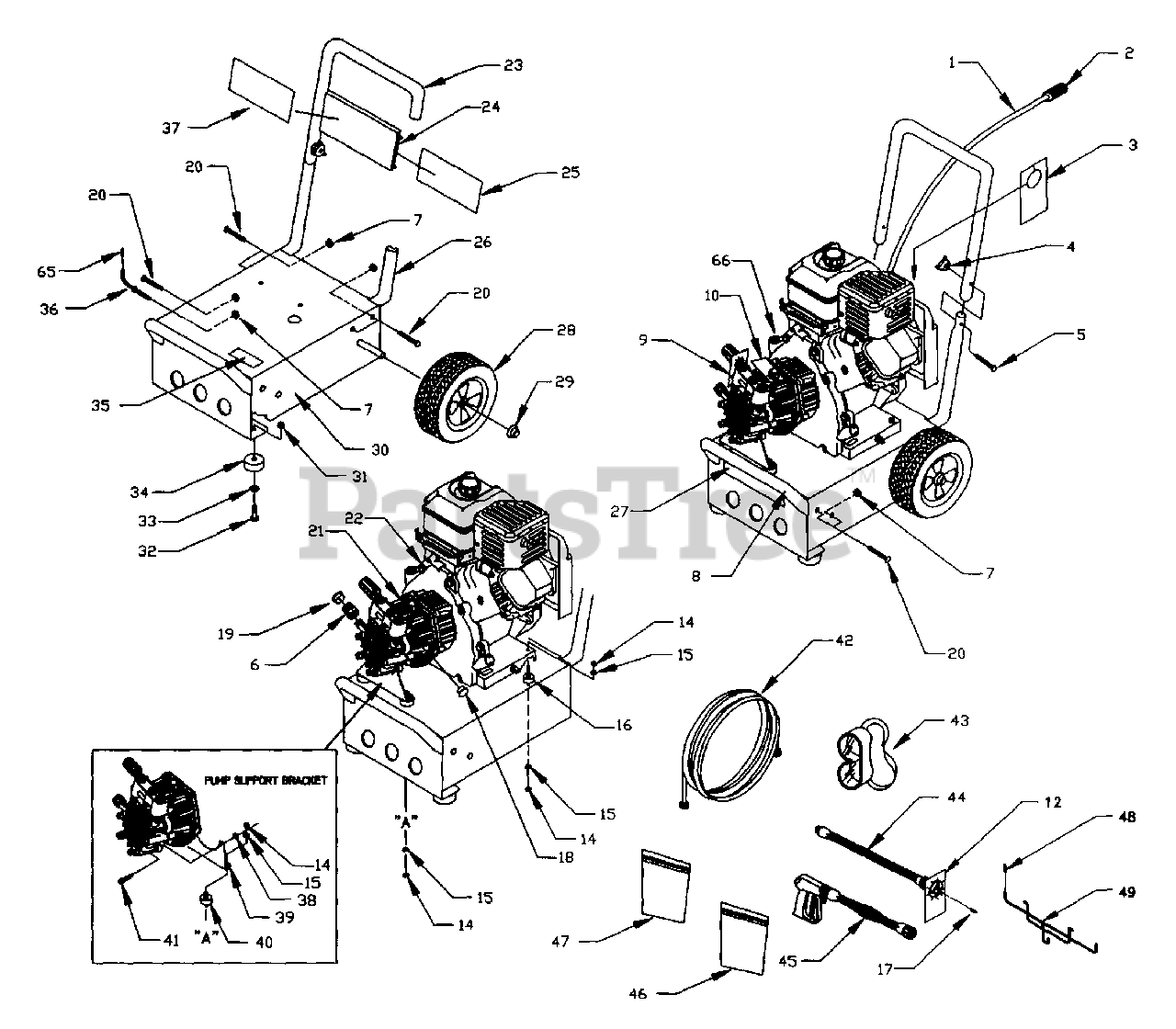

Pressure Washer Parts Diagram

  • Title
1

Briggs & Stratton A1040B

HOSE, 4' CHEMICAL CLEAR
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton A1041

FILTER, CHEMICAL HOSE
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 70453

TAG, WARNING OIL
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 97178

KNOB, PW Handle
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 31669

BOLT, 1/4"-20 x 1.75" Carriage
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

6

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 99583

NUT, FLANGE LOCK 5/16-28
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B1982

BUMPER
(Superseded to B1982GS)

$53.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 97054

TAG, PRES ADJUST

$

$

Not available

10

Briggs & Stratton B1288

TAG, PW BREATHER CAP
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 97566

TAG, NOZZLE
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 45771

NUT,M8-1.25 HEX

$

$

Not available

15

Briggs & Stratton 22129

LOCKWASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 21217

MOUNT, RUBBER SHOCK
(Superseded to 21217GS)

$7.49

$

In Stock, only 1 left!

0

17

Briggs & Stratton B1236F

NOZZLE, REPLACEMENT 1.25mm
(Superseded to B1236FGS)

$19.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 97100

CAP,H.P. ADAPTOR
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 97098

CAP,GARDEN HOSE INLET
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B2043

BOLT,5/16-18 X 1-3/4" CARRIAGE
(Superseded to B2043GS)

$2.99

$

Usually ships in 2-12 days

0

21

-----

ASSEMBLY, PUMP

Note: For Replacement, order 198347GS)

$

$

Not available

21

Briggs & Stratton 198347GS

REPLACEMENT PUMP ASSEMBLY
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

23

Briggs & Stratton B1983

HANDLE
(Superseded to B1983GS)

$69.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B1631A

BILLBOARD, PLASTIC
(Superseded to B1631AGS)

$35.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B1932

DECAL, INSTRUCTIONS
(Superseded to B1932GS)

$15.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B1981

SUPPORT, HANDLE
(Superseded to CB1981GS)

$19.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B2192

DECAL, GENERAC
(Superseded to B2192GS)

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B1760

ASSY, 10" TIRE & WHEEL
(Superseded to B1760GS)

$81.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 75402

PUSHNUT,.50 DIA.
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

$

$

Not available

31

Briggs & Stratton 52858

NUT,M8 1.25 LOCKING
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 42909

HHCS,M8 1.25 X 30
(Superseded to 42909GS)

$3.49

$

In Stock, only 1 left!

0

33

Briggs & Stratton 50190

WASHER, M8 FLAT
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 27007

MOUNT,DONUT TYPE VIBRATION
(Superseded to 191413GS)

$6.49

$

In Stock, only 3 left!

0

35

Briggs & Stratton 20566

DECAL,GENERAC #1-800
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B2150

HOOK,GUN
(Superseded to B2150GS)

$4.49

$

Usually ships in 2-12 days

0

37

$

$

Not available

38

Briggs & Stratton 52857

NUT,M6 1.0 LOCKING
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 20707

BRACKET, PUMP SUPPORT

$

$

Not available

40

Briggs & Stratton 21216

MOUNT, RUBBER SHOCK
(Superseded to 5021216)

$142.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 38750

HHCS,M6 1.0 X 30
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B3339

HOSE, HIGH PRESSURE

$

$

Currently unavailable

43

Briggs & Stratton 87815

GOGGLES, SAFETY
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B1867F

WAND
(Superseded to B1867FGS)

$95.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B1861

GUN,HIGH PRESSURE

$

$

Currently unavailable

46

Briggs & Stratton B2203

KIT,HANDLE FASTENING
(Superseded to B2203GS)

$5.49

$

In Stock, only 2 left!

0

47

$

$

Currently unavailable

48

Briggs & Stratton B1460

CAP,VINYL (black)
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B2168A

HANGER,HOSE,GUN,JUG
(Superseded to B2168AGS)

$42.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton B2516

CAP,VINYL (black)
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 95440

SPACER,ENGINE PILOT
(Superseded to 95440GS)

Note: (Not shown)

$7.49

$

Usually ships in 2-12 days

0
