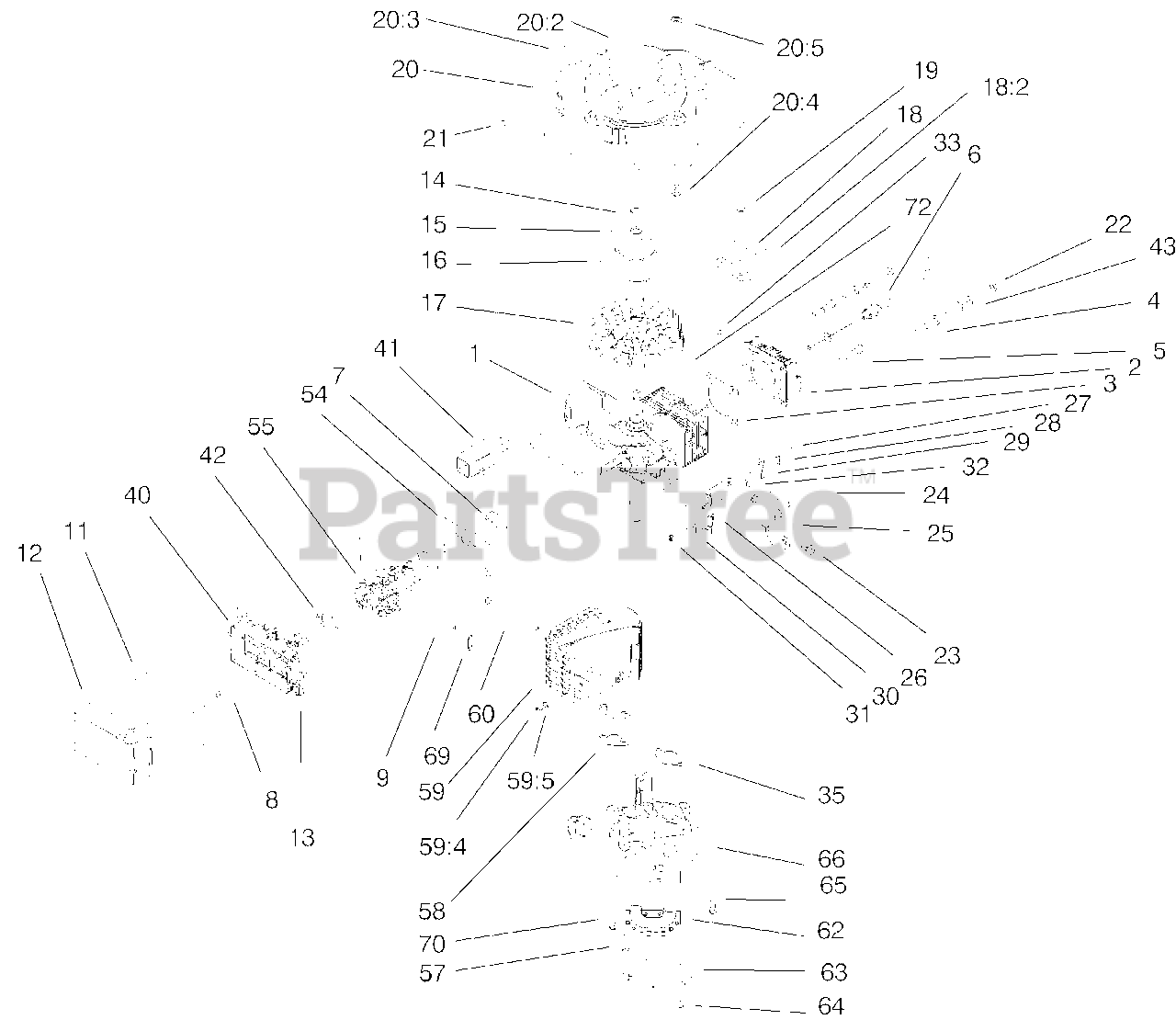

10424 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 95-7636

SHORT BLOCK ASM

$

$

Not available

2

Lawn-Boy 94-5776

HEAD-CYLINDER

$60.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 94-5778

GASKET-HEAD

$10.99

$

In Stock, Qty 6

0

4

Lawn-Boy 94-5779

STUD

$9.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 94-5780

BOLT-HEAD

$8.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 50-1170

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-5795

GASKET-INTAKE

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 612507

SCREW

$4.99

$

In Stock, Qty 7

0

9

Lawn-Boy 44-3170

HOSE-PRIMER

$9.49

$

In Stock, only 1 left!

0

11

Lawn-Boy 95-5574

FILTER-AIR
(Superseded to 107-4622)

$7.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 95-5577

COVER-FILTER, AIR

$15.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 610383

RETAINER-COVER, FILTER

$7.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 130743

NUT

$2.99

$

In Stock, Qty 7

0

15

Lawn-Boy 316959

WASHER-LOCK
(Superseded to 325-36)

$8.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 612949

HUB-STARTER E COMM.

$42.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 95-1866

FLYWHEEL

$143.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-1152

Cd Ign
(Superseded to 99-2916)

$78.99

$

In Stock, Qty 9

0

18:2

Lawn-Boy 681678

HT LEAD&COVER XEV

$23.99

$

Usually ships in 3-6 days

0

18:2

Lawn-Boy 684698

COVER & TERM. AY S

$6.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 613208

SCREW

$1.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 95-1868

SHROUD-RECOIL

$

$

Not available

20:2

Lawn-Boy 99-6713

RECOIL ASM

$

$

Not available

20:3

Lawn-Boy 613733

Rope

$

$

Currently unavailable

20:4

Lawn-Boy 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

20:5

Lawn-Boy 3296-2

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 700094

SCREW-HH
(Superseded to 112-0167)

$6.49

$

In Stock, Qty 6

0

22

Lawn-Boy 146501

NUT

$1.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 95-1870

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 95-1871

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 93-4312

BRAKE PLATE AY EV

$64.99

$

In Stock, only 3 left!

0

26

Lawn-Boy 84-7820

PLATE-BRAKE

$12.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 3290-459

RIVET-PLASTIC

$1.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 92-2925

STRAP-INSULATION

$1.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 60-9010

STRAP-GROUND

$11.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 53-4690

STOP-GROUND STRAP

$3.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 98-7037

LEAD WIRE-SWITCH, BRAKE

$

$

Not available

33

Lawn-Boy 607199

KEY

$4.99

$

In Stock, Qty 12

0

35

Lawn-Boy 95-1778

GASKET-EXHAUST

$4.99

$

In Stock, Qty 14

0

40

Lawn-Boy 95-5588

AIR BASE ASM

$25.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 95-5578

TUNNEL-INLET

$4.99

$

In Stock, only 4 left!

0

42

Lawn-Boy 95-7613

GASKET-FILTER

$3.99

$

In Stock, Qty 20+

0

43

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 9

0

54

Lawn-Boy 98-1388

SHIELD-CARB E

$7.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 98-7042

CARBURETOR ASM
(Superseded to 107-4607)

$144.99

$

In Stock, Qty 5

0

57

Lawn-Boy 613208

SCREW

$1.99

$

In Stock, only 2 left!

0

58

Lawn-Boy 98-1392

GASKET

$5.49

$

In Stock, Qty 14

0

59

Lawn-Boy 100-9514

MUFFLER & GUARD AY E

$242.99

$

Usually ships in 3-6 days

0

59:4

Lawn-Boy 98-1394

SCREW-HWH E

$4.49

$

In Stock, only 1 left!

0

59:5

Lawn-Boy 3254-1

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 611228

BOLT-CONSOLE

$16.99

$

In Stock, only 1 left!

0

62

Lawn-Boy 98-1557

PIPE-TRANSFER

$

$

Not available

63

Lawn-Boy 98-1591

COVER-MUFFLER E

$10.99

$

In Stock, only 3 left!

0

64

Lawn-Boy 700822

SCREW-HH

$1.99

$

In Stock, Qty 10

0

65

Lawn-Boy 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

66

Lawn-Boy 98-1383

PLATE-MOUNTING

$108.99

$

In Stock, only 2 left!

0

69

Lawn-Boy 95-7615

HOSE-RETAINER

$2.99

$

In Stock, Qty 5

0

70

Lawn-Boy 613233

SCREW

$3.99

$

Usually ships in 3-6 days

0

72

Lawn-Boy 317893

STRAP-TIE

$

$

Not available
