10424 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) ENGINE AND BLADE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

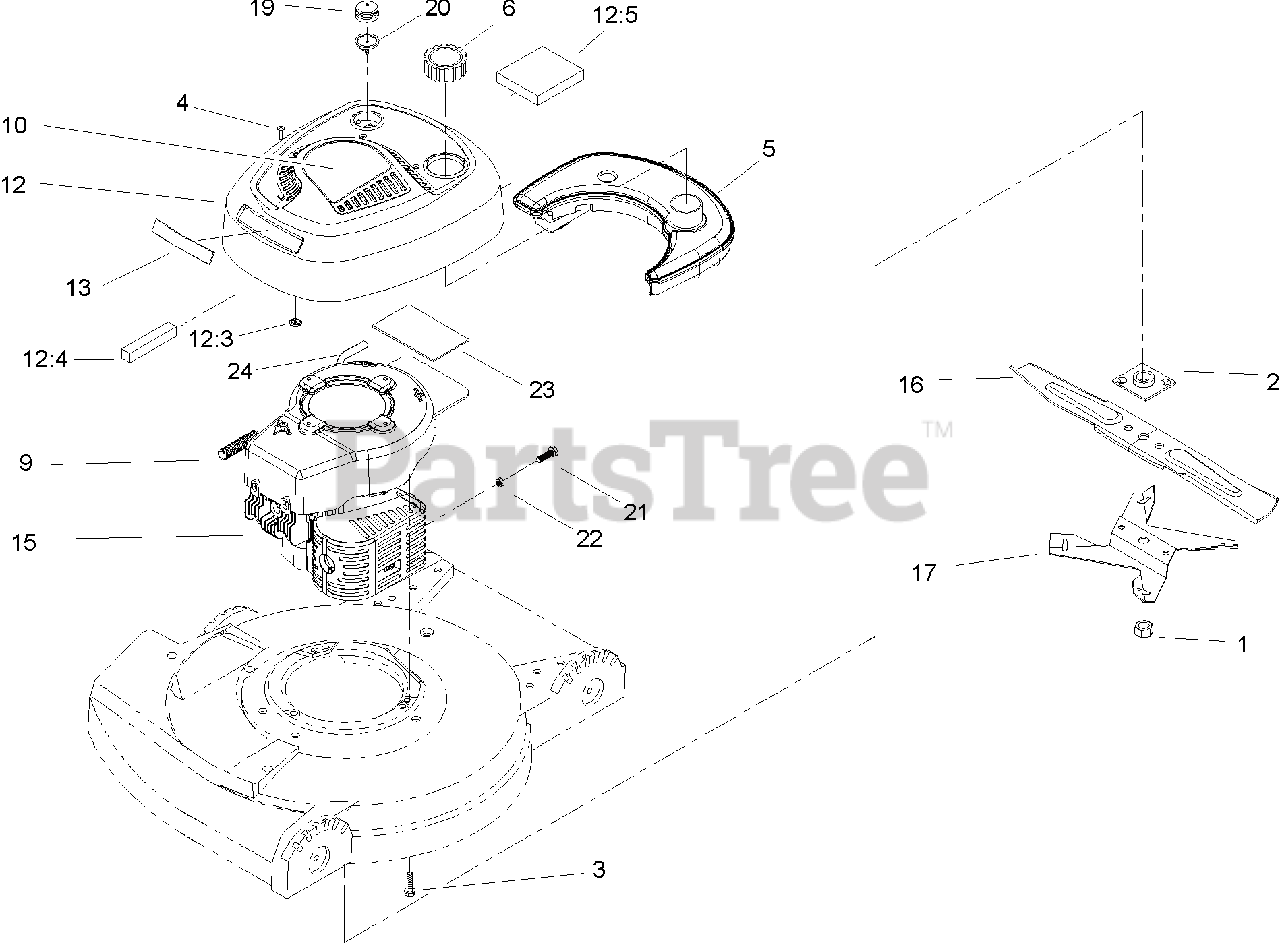

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 7

0

2

Lawn-Boy 677525

PLATE AND COLLAR ASM

$23.99

$

In Stock, Qty 11

0

3

Lawn-Boy 98-4480

SCREW-HH, SEMS

$3.49

$

In Stock, only 3 left!

0

4

Lawn-Boy 95-7621

SCREW

$1.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 95-1897

TANK

$57.99

$

In Stock, Qty 5

0

6

Lawn-Boy 98-8344

FUEL AND OIL CAP ASM

$23.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 93-4306

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 95-7420

DECAL-RECOIL

$

$

Not available

12

Lawn-Boy 100-8750

SHROUD AND RECOIL COVER ASM

$

$

Not available

12:3

Lawn-Boy 613329

NUT-PUSH

$1.99

$

Usually ships in 3-6 days

0

12:4

Lawn-Boy 99-1522

STRIP-FOAM

$2.99

$

In Stock, Qty 10

0

12:5

Lawn-Boy 99-1521

STRIP-FOAM

$8.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 92-8615

APPLIQUE-SHROUD

$24.99

$

In Stock, only 2 left!

0

15

Engine ASM

Note: Not serviced separately

$

$

Not available

16

Lawn-Boy 612543-03

BLADE

$29.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 99-6351-03

FAN-MULCHING

$32.99

$

In Stock, Qty 15

0

19

Lawn-Boy 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 314576

SCREW

$1.49

$

In Stock, Qty 9

0

22

Lawn-Boy 306531

NUT-HEX
(Superseded to 3217-26)

$1.99

$

In Stock, Qty 5

0

23

Lawn-Boy 98-1386

PAD-FOAM

$7.49

$

In Stock, only 1 left!

0

24

Lawn-Boy 612782

LINE-FUEL

$6.49

$

In Stock, Qty 20+

0
