10424 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) SHORT BLOCK ASSEMBLY NO. 95-7636 Parts Diagram

GoldPro Series Walk-Behind Mower

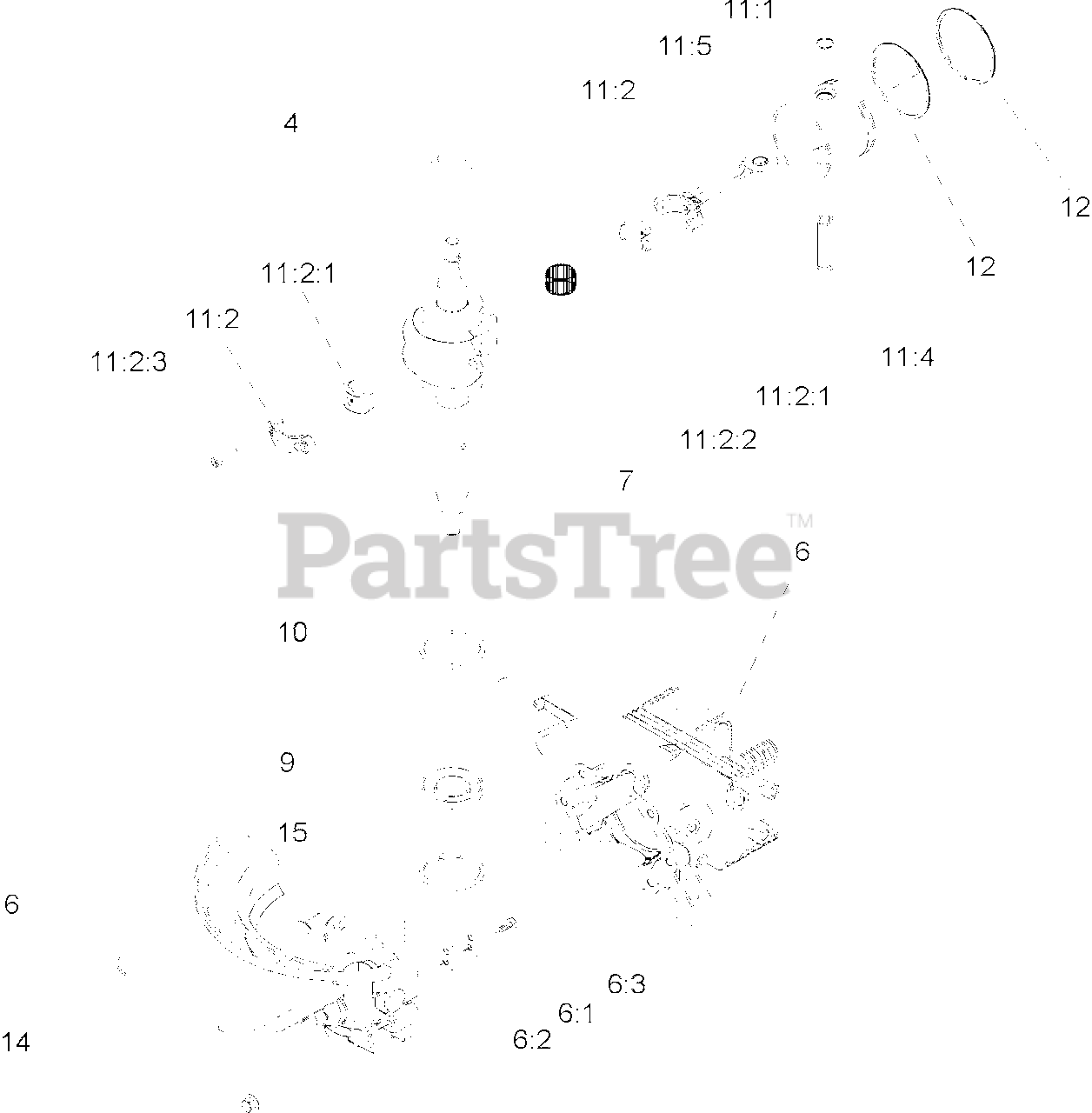

SHORT BLOCK ASSEMBLY NO. 95-7636 Parts Diagram

  • Title

2

Lawn-Boy 609790

SEALER-LOCTITE 50CC

Note: Not illustrated

$65.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 610372

SEALER-LOCTITE 6CC

Note: Not illustrated

$28.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611396

SEAL-OIL

$6.99

$

In Stock, Qty 12

0

6

Lawn-Boy 95-7631

CYLINDER AND CRANKCASE ASM

$

$

Not available

6:1

Lawn-Boy 602587

PLATE-BACKUP, REED

$3.99

$

Usually ships in 3-6 days

0

6:2

Lawn-Boy 602588

REED-CARBURETOR

$

$

Not available

6:3

Lawn-Boy 612872

SCREW-HH

$2.49

$

In Stock, Qty 5

0

7

Lawn-Boy 99-2920

CRANKSHAFT AND BEARING ASM

$342.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 94-5764

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 94-5765

RING-RETAINING, EXT.

$

$

Not available

11:1

Lawn-Boy 303712

RING-RETAINING

$3.49

$

In Stock, Qty 9

0

11:2

Lawn-Boy 95-7629

CONNECTING ROD ASM

$166.99

$

Usually ships in 3-6 days

0

11:2:1

Lawn-Boy 677982

LINER ASM

$50.99

$

In Stock, only 4 left!

0

11:2:2

Lawn-Boy 683911

BEARING-NEEDLE

$

$

Not available

11:2:3

Lawn-Boy 611393

SCREW-HSH

$23.99

$

Usually ships in 3-6 days

0

11:4

Lawn-Boy 94-5774

PIN-WRIST

$12.99

$

Usually ships in 3-6 days

0

11:5

Lawn-Boy 100-2916

PISTON AND RINGS ASM

$

$

Not available

11

Piston And Connecting Rod ASM

Note: Not serviced separately

$

$

Not available

12

Lawn-Boy 100-2917

SET-RING

$115.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 94-5781

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 32151-75

RING-RETAINING

$3.49

$

In Stock, Qty 12

0
