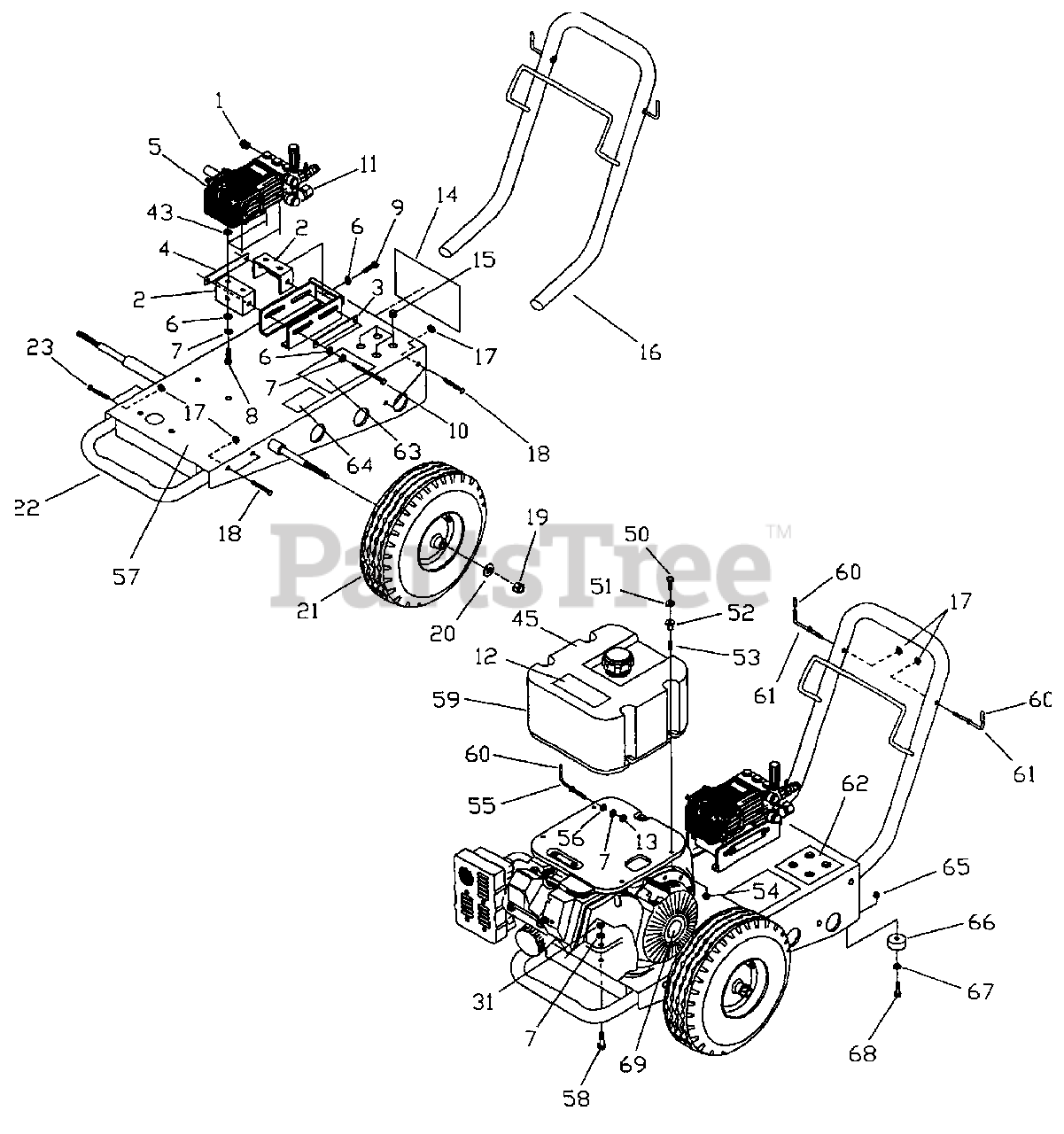

1046-0 - Generac 3,500 PSI Pressure Washer Frame, Fuel System and Handle Parts Diagram

3,500 PSI Pressure Washer

Frame, Fuel System and Handle Parts Diagram

  • Title

1

Briggs & Stratton B1554

VALVE, Thermal Relief
(Superseded to 195016GS)

$25.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton AB1642

BRACKET, Pump Mounting

$

$

Currently unavailable

3

Briggs & Stratton AB1643

BRACKET, Bolt Spacer

$

$

Currently unavailable

4

Briggs & Stratton AB1648

BRACKET, Bolt w/ Nut

$

$

Currently unavailable

5

Briggs & Stratton B2327

PUMP, 3500 @ 46PM

$

$

Not available

6

Briggs & Stratton 22145

WASHER, M8 5/16 Flat

$

$

Not available

7

Briggs & Stratton 22129

WASHER, M8 5/16 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 40976

SHC, M8 1.25 x 20

$

$

Not available

9

Briggs & Stratton 51730

HHCS, M8 1.25 x 60
(Superseded to 51730GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 81953

HHCS, M8 1.25 x 150

$

$

Not available

11

Briggs & Stratton 95320

CONNECTOR, Inlet Garden Hose
(Superseded to 95320GS)

$42.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 21786

DECAL, Danger
(Superseded to 21786GS)

$13.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22259

NUT, 5/16-24 Hex
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2288

DECAL, Logo 1046-0
(Superseded to B2288GS)

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 30809

GROMMET, 1/8-11/16
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B2075

HANDLE, Powder Coat

$

$

Not available

17

Briggs & Stratton 99583

NUT, 5/16-18 Locking Flange
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B2043

BOLT, Carriage 5/16-18 x 1-3/4
(Superseded to B2043GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 26727

NUT, Nylok 1/2-20 Hex
(Superseded to 26727GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22304

WASHER, Flat 1/2
(Superseded to 22304GS)

$3.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 89742

ASSY, Wheel 4 x 12 Dia.

$

$

Not available

22

Briggs & Stratton B1982

BUMPER, Powder Coat
(Superseded to B1982GS)

$53.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 25154

BOLT, Carriage 5/16-18 x 2
(Superseded to 5025154)

$4.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 45771

NUT, M8-1.25 Hex

$

$

Not available

43

Briggs & Stratton 67451

WASHER, Flat M8 x 20 Special

$

$

Currently unavailable

45

Briggs & Stratton 99381

CAP, Fuel
(Superseded to 99381GS)

$16.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 38750

HHCS, M6-1 x 30
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton B2495

WASHER, 25.4 x 8.45 x 1.4
(Superseded to B2495GS)

$2.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton B2465

BUSHING, Tank Mount
(Superseded to B2465GS)

$4.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton B2513

SPACER, Sleeve Grommet

$

$

Not available

54

Briggs & Stratton 77395

NUT, M6 Flange Lock Blk.
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton B2532

HOOK, Square Neck

Note: (Fuel Tank)

$

$

Not available

56

Briggs & Stratton 22131

WASHER, 3/8 M10 Flat
(Superseded to 22131GS)

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton AB2074C

BASE, Power Red

$

$

Currently unavailable

58

Briggs & Stratton 57821

HHCS, M8-1.25 x 40

$

$

Not available

59

Briggs & Stratton B2346

ASSY, Fuel Tank 2 Gal
(Superseded to B2346GS)

$

$

Not available

60

Briggs & Stratton B2516

CAP, Vinyl .280" Blk.
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B2150

HOOK, Square Neck (Handle)
(Superseded to B2150GS)

$4.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B2329

DECAL, Nozzles

$

$

Not available

63

Briggs & Stratton B2330

DECAL, Instructions
(Superseded to B2330GS)

$11.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 20566

DECAL, 1-800 #
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 52858

NUT, Locking M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

66

Briggs & Stratton 27007

MOUNT, Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 8

0

67

Briggs & Stratton 50190

WASHER, M8 Flat
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 42909

HHCS, M8 1.25 x 30
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 91682D

DECAL, Recoil
(Superseded to 91682DGS)

$8.99

$

Usually ships in 2-12 days

0
