105-1293 - Toro GTS 150 to 200 Conversion Kit (1995 - 1997) Cylinder Assembly Engine Gts-200 Parts Diagram

GTS 150 to 200 Conversion Kit

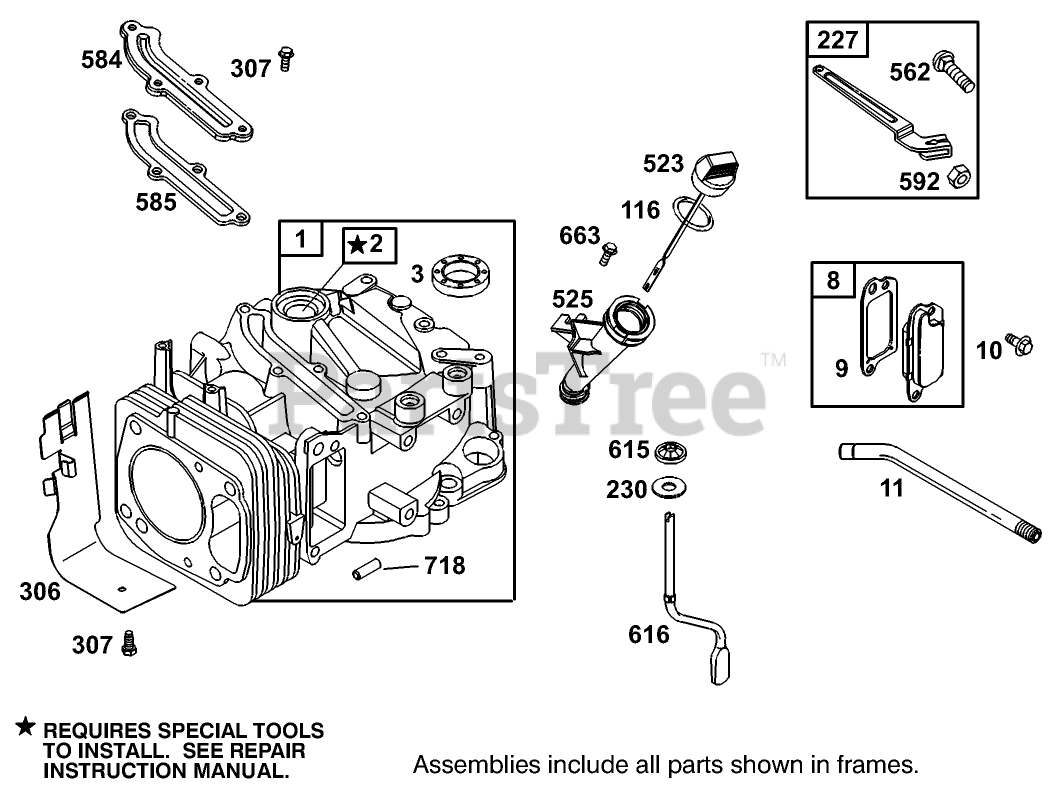

Cylinder Assembly Engine Gts-200 Parts Diagram

  • Title

1

Toro 99-0900

CYLINDER ASM

$700.99

$

Usually ships in 3-6 days

0

2

Toro 99-0911

BUSHING

$

$

Not available

3

Toro 99-0912

DISCONTINUED
(Superseded to 77-9060)

Note: Included in Gasket Set-Part No. 100-5035

$

$

Not available

8

Toro 77-9260

BREATHER ASM

$

$

Not available

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Gasket Set-Part No. 100-5035

$5.49

$

Usually ships in 3-6 days

0

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Valve Overhaul Gasket Set Part No. 100-5033

$5.49

$

Usually ships in 3-6 days

0

10

Toro 99-0914

SCREW-HH

$

$

Not available

11

Toro 99-0915

DISCONTINUED

$

$

Not available

116

Toro 99-0916

O-RING

Note: Included in Gasket Set-Part No. 100-5035

$11.99

$

Usually ships in 3-6 days

0

227

Toro 99-0917

GOVERNOR LEVER ASM

$

$

Not available

230

Toro 99-0918

WASHER-CRANK, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

306

Toro 99-0919

SHIELD-CYLINDER

$

$

Not available

307

Toro 99-0920

SCREW-HH

$

$

Not available

523

Toro 77-7260

DISCONTINUED

$

$

Not available

525

Toro 99-0906

DISCONTINUED

$

$

Not available

562

Toro 99-0921

See Supercession: 94-1670
(Superseded to 94-1670)

$

$

Not available

584

Toro 99-0922

COVER-BREA PASSAGE

$

$

Not available

585

Toro 99-0923

GASKET-BREATHER

Note: Included in Gasket Set-Part No. 100-5035

$15.99

$

Usually ships in 3-6 days

0

592

Toro 99-0924

NUT-HEX

$

$

Not available

615

Toro 99-0925

FASTENER

$

$

Not available

616

Toro 99-0926

CRANK-GOVERNOR

$

$

Not available

663

Toro 99-0927

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

718

Toro 99-0928

SLEEVE-DOWEL

$

$

Not available

Toro 99-2529

SHORT BLOCK

$

$

Not available
