105-1383 - Toro Hydrostatic Transaxle Replacement Kit TRANSAXLE CASE ASSEMBLY Parts Diagram

Hydrostatic Transaxle Replacement Kit

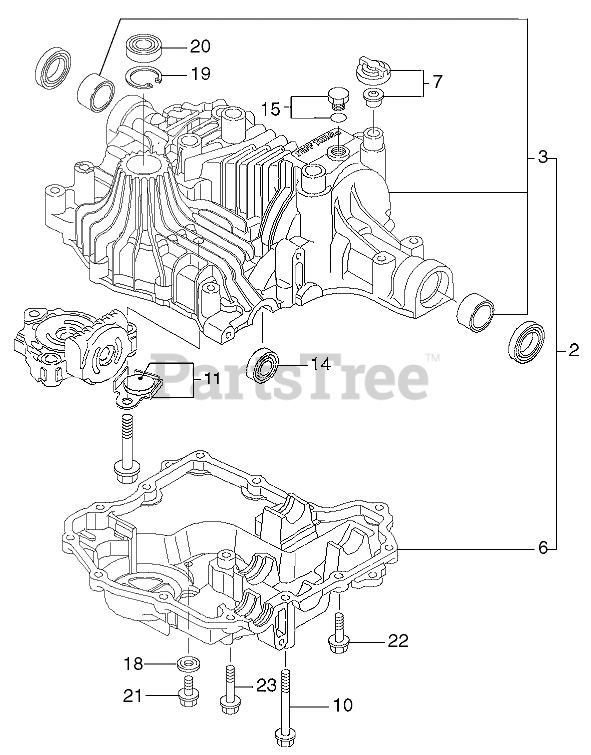

TRANSAXLE CASE ASSEMBLY Parts Diagram

  • Title

2

Toro 105-1351

Transaxle Case ASM

$1143.99

$

Usually ships in 3-6 days

0

3

Toro 105-1352

Case-Upper

$775.99

$

Usually ships in 3-6 days

0

6

Toro 105-1353

Case-Lower

$

$

Not available

7

Toro 104-3256

Valve-Vent, 15

$20.99

$

Usually ships in 3-6 days

0

10

Toro 93-0354

BOLT

$

$

Not available

11

Toro 93-0355

MAGNET

$

$

Not available

14

Toro 105-1355

Seal

$30.99

$

Usually ships in 3-6 days

0

15

Toro 93-0356

PLUG-PACKING

$

$

Not available

18

Toro 93-0359

WASHER-SEAL

$24.99

$

Usually ships in 3-6 days

0

19

Toro 93-0360

RING

$10.99

$

Usually ships in 3-6 days

0

20

Toro 93-0361

SEAL

$41.99

$

Usually ships in 3-6 days

0

21

Toro 93-0362

BOLT

$5.49

$

Usually ships in 3-6 days

0

22

Toro 93-0363

SCREW-TAP

$6.49

$

Usually ships in 3-6 days

0

23

Toro 93-0364

SCREW-TAP

$

$

Not available
