105-6177 - Toro 72" Mower Service Kit for 200 Series Z Master (SN: 220000001 - 220999999) (2002) DECK, DEFLECTOR AND ROLLER ASSEMBLY Parts Diagram

72" Mower Service Kit for 200 Series Z Master

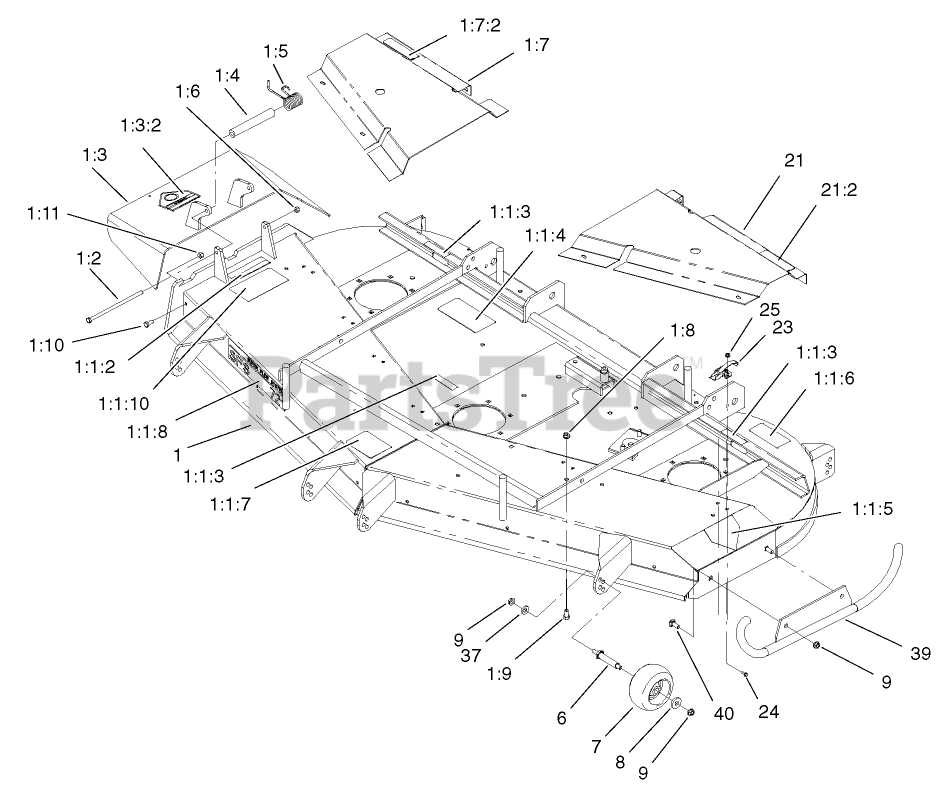

DECK, DEFLECTOR AND ROLLER ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1698

DECK SERVICE ASM

$

$

Not available

1:1:2

Toro 104-8569

DECAL-WARNING

$

$

Not available

1:1:3

Toro 98-5954

DECAL-COVER, MISSING

$8.49

$

In Stock, Qty 10

0

1:1:4

Toro 99-4686

DECAL-ROUTING, BELT

$15.99

$

In Stock, only 2 left!

0

1:1:5

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

1:1:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

1:1:7

Toro 98-3798

DECAL-WHEEL, GAGE

$13.99

$

Usually ships in 3-6 days

0

1:1:8

Toro 98-5995

DECAL-DECK

$

$

Not available

1:1:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

1:2

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

1:3

Toro 105-3605

Deflector ASM

$200.99

$

Usually ships in 3-6 days

0

1:3:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

1:4

Toro 105-4622

SPACER

$10.99

$

In Stock, only 4 left!

0

1:5

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

1:6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

1:7

Toro 100-6527

RH COVER W/DECAL ASM

$301.99

$

Usually ships in 3-6 days

0

1:7:2

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

1:8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

1:9

Toro 323-2

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

1:10

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

1:11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

1:1

Deck ASM

Note: Not serviced separately

$

$

Not available

6

Toro 99-2842

SPACER
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 20+

0

7

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

8

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

21

Toro 99-2623

LH COVER W/DECAL ASM

$

$

Not available

21:2

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

23

Toro 249-21

CLAMP-SLOTTED

$19.99

$

In Stock, only 2 left!

0

24

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

25

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

37

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

39

Toro 98-7923-01

SKID

$

$

Not available

40

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0
