105-9371 - Toro Exhaust Kit for International 100-Series Z Master EXHAUST ASSEMBLY Parts Diagram

Exhaust Kit for International 100-Series Z Master

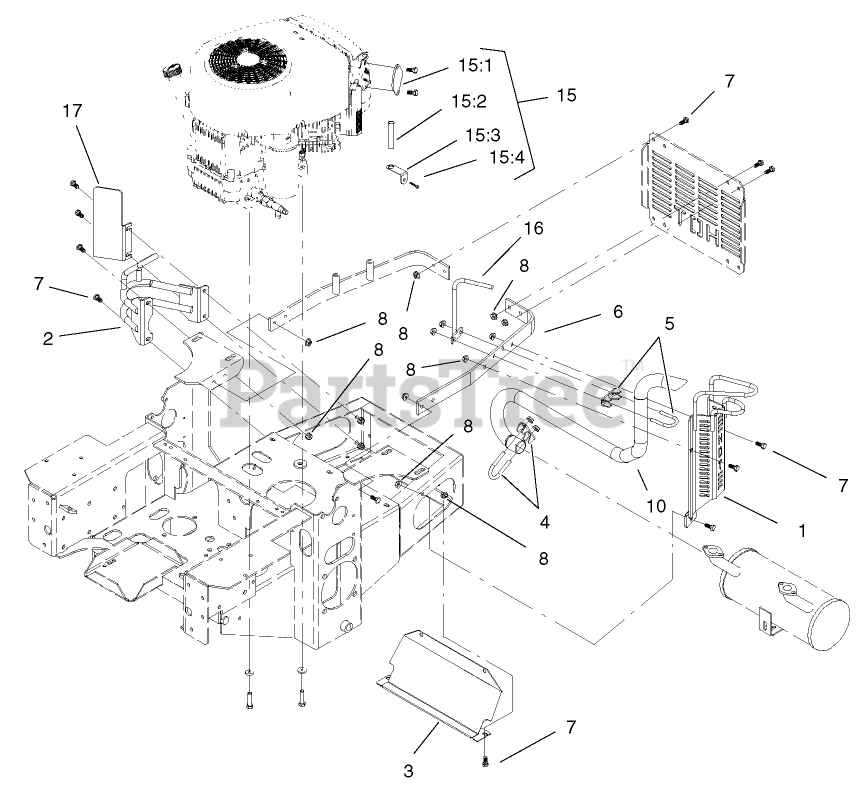

EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Toro 105-9370-03

LH EXHAUST GUARD ASM

$

$

Not available

2

Toro 103-2564-03

RH Exhaust Guard ASM

$191.99

$

Usually ships in 3-6 days

0

3

Toro 103-2560-03

Shield-Heat

$168.99

$

Usually ships in 3-6 days

0

4

Toro 103-2630

CLAMP

$8.49

$

Usually ships in 3-6 days

0

5

Toro 103-2631

CLAMP

$6.99

$

Usually ships in 3-6 days

0

6

Toro 103-2751-03

Strap,Eng Guard LH Exhaust

$

$

Not available

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 103-2599

TAILPIPE

$174.99

$

In Stock, only 1 left!

0

15

Shield-Heat, Fuel Pump

Note: Obtain Replacement From Kawasaki

$

$

Not available

15:1

Shield-Heat

Note: Obtain Replacement From Kawasaki

$

$

Not available

15:2

Tube-Vent

Note: Obtain Replacement From Kawasaki

$

$

Not available

15:3

Bracket

Note: Obtain Replacement From Kawasaki

$

$

Not available

15:4

Screw

Note: Obtain Replacement From Kawasaki

$

$

Not available

16

Toro 105-9365-03

LH REAR GUARD ASM

$

$

Not available

17

Toro 105-9369-03

RH EXHAUST GUARD ASM

$

$

Not available
