105 - Husqvarna Automower Robotic Lawn Mower (2017-01) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

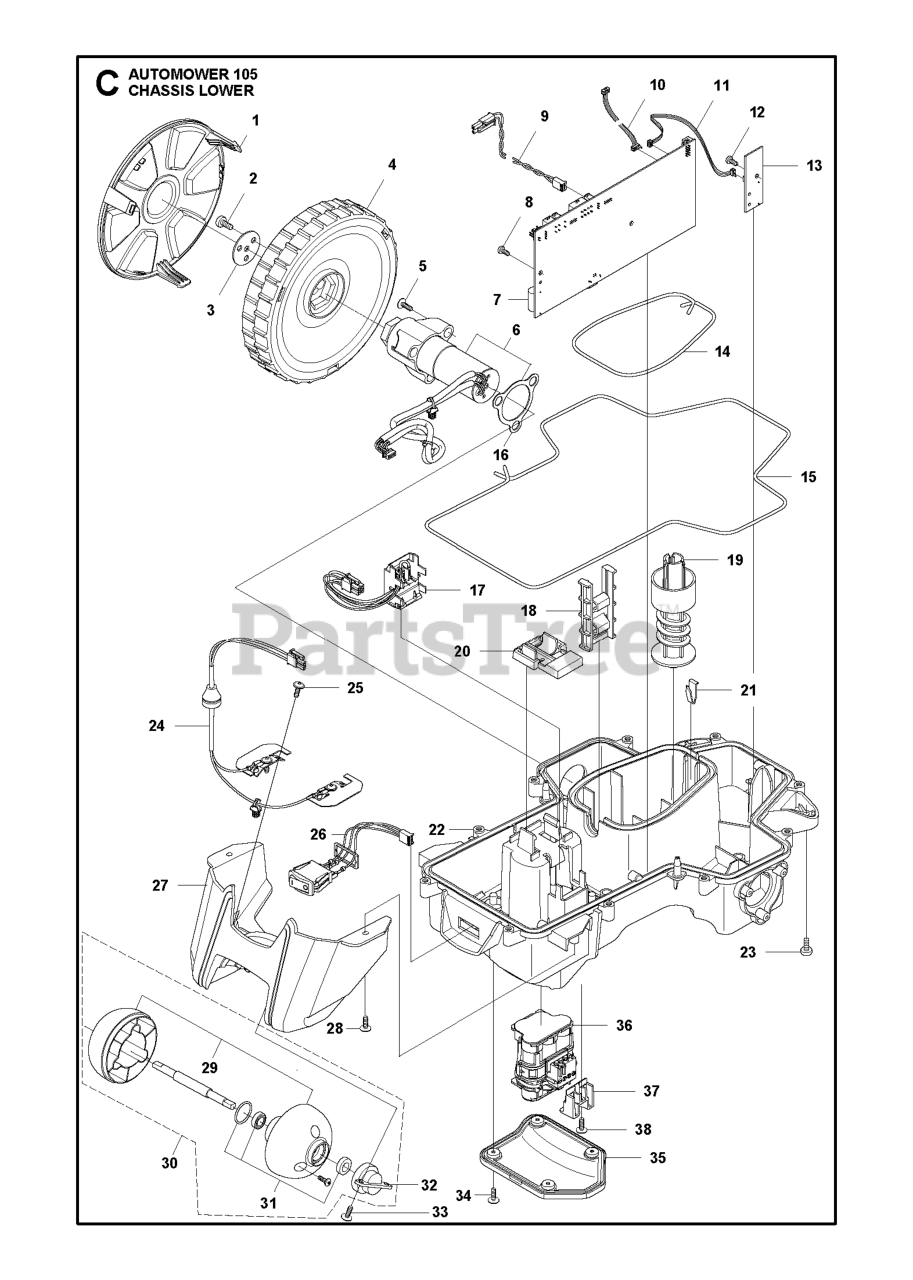

CHASSIS LOWER Parts Diagram

  • Title

30

Husqvarna 578275103

REAR WHEEL REAR WHEEL KIT COMP

Note: Rear Wheel KIT Complete

$

$

Not available

5

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$3.99

$

In Stock, Qty 14

0

35

Husqvarna 574467301

COVER BATTERY

Note: Cover, Battery

$22.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574501901

GUIDE RAIL MOTOR BOWL

Note: Guide Rail, Motor Bowl

$

$

Not available

4

Husqvarna 574465104

WHEEL DRIVE WHEEL

Note: Wheel, Drive Wheel

$

$

Not available

23

Husqvarna 576213901

SCREW ITXPANM M5X12 8.8 ZP-BC
(Superseded to 590740201)

Note: Screw

$

$

Not available

15

Husqvarna 574874703

SEALING STRIP P1 CHASSIS

Note: Sealing Strip, Chassis (1 pcs, ¯4 mm)

$

$

Not available

1

Husqvarna 575430801

NEEDS DESCRIPTION

Note: Hub Cap, Drive Wheel

$

$

Currently unavailable

16

Husqvarna 574373701

GASKET MOTOR FLANGE

Note: Sealing/Gasket, Motor Flange

$

$

Not available

38

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$3.99

$

In Stock, Qty 14

0

7

Husqvarna 588628803

PRINTED CIRCUIT ASSY MAIN BOAR
(Superseded to 592851701)

Note: Main Circuit Board (MCB) (From S/N 16010001-)

$

$

Not available

14

Husqvarna 574874704

SEALING STRIP P1

Note: Sealing Strip (1 pcs, ¯4 mm)

$23.99

$

Usually ships in 3-10 days

0

12

Husqvarna 535130310

SCREW

Note: Screw (10 mm)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576213902

SCREW ITXPANM M5X12 8.8 ZP-BC

Note: Screw

$

$

Not available

37

Husqvarna 582386101

BRACKET BATTERY HOLDER

Note: Bracket

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$3.99

$

In Stock, Qty 14

0

26

Husqvarna 579708701

LOOM ON/ OFF

Note: Swith ON/OFF with Seal

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 583853902

REAR WHEEL REAR WHEEL KIT, LEF

Note: Rear Wheel KIT

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 575408201

LOCK BATTERY PLUG

Note: Lock, Battery Plug

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 588950901

NEEDS DESCRIPTION

Note: Loom, Charging Plate

$

$

Currently unavailable

34

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 588901201

WIRING ASSY LOOP AND LIFT SENS

Note: Loom, Loop and Lift Sensor (From S/N 16010001-)

$

$

Not available

8

Husqvarna 535130310

SCREW

Note: Screw (10 mm)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588572101

PRINTED CIRCUIT ASSY SENSOR BO

Note: PCB Sensor Board

$101.99

$

Usually ships in 3-10 days

0

22

Husqvarna 577846203

CHASSIS CHASSIS LOWER KIT INCL

Note: Chassis Lower KIT, incl. Sealing

$71.99

$

Usually ships in 3-10 days

0

36

Husqvarna 589586101

BATTERY LI-ION

Note: Battery, Lithium 18 v

$

$

Not available

17

Husqvarna 574479801

LOOM BATTERY 18 V LLITHIUM

Note: Loom, Li-Ion Battery

$27.99

$

Usually ships in 3-10 days

0

27

Husqvarna 574467202

HOUSING REAR WHEEL FLAME RETAR

Note: Housing, Rear Wheel

$35.99

$

Usually ships in 3-10 days

0

25

Husqvarna 575529502

NEEDS DESCRIPTION

Note: Screw, Grey (14 mm)

$

$

Currently unavailable

31

Husqvarna 578275201

REAR WHEEL BEARING AND SEALING

Note: Bearing (x2), Sealing (x2), O-Ring (x1)

$45.99

$

Usually ships in 3-10 days

0

10

Husqvarna 588832701

WIRING ASSY HMI

Note: Loom, Display (From S/N 16010001-)

$29.99

$

Usually ships in 3-10 days

0

3

Husqvarna 577093201

WASHER DRIVE WHEEL

Note: Washer, Drive Wheel

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 576220201

LOOM BUZZER EXTENSION

Note: Loom, Buzzer Extension

$

$

Not available

21

Husqvarna 577103201

LOCKING SPRING

Note: Locking Spring

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 577839904

WHEEL MOTOR ASSY WHEEL MOTOR K
(Superseded to 577839906)

Note: Wheel Motor KIT incl. Sealing

$

$

Not available

28

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$3.99

$

In Stock, Qty 14

0

19

Husqvarna 574484601

SCREW HEIGHT ADJUSTMENT

Note: Height Adjustment Screw

$

$

Not available

32

Husqvarna 577715001

BEARING HOUSING REAR WHEEL

Note: Bearing Housing, Rear Wheel

$5.99

$

Usually ships in 3-10 days

0
