105 - Husqvarna Automower Robotic Lawn Mower (2018) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

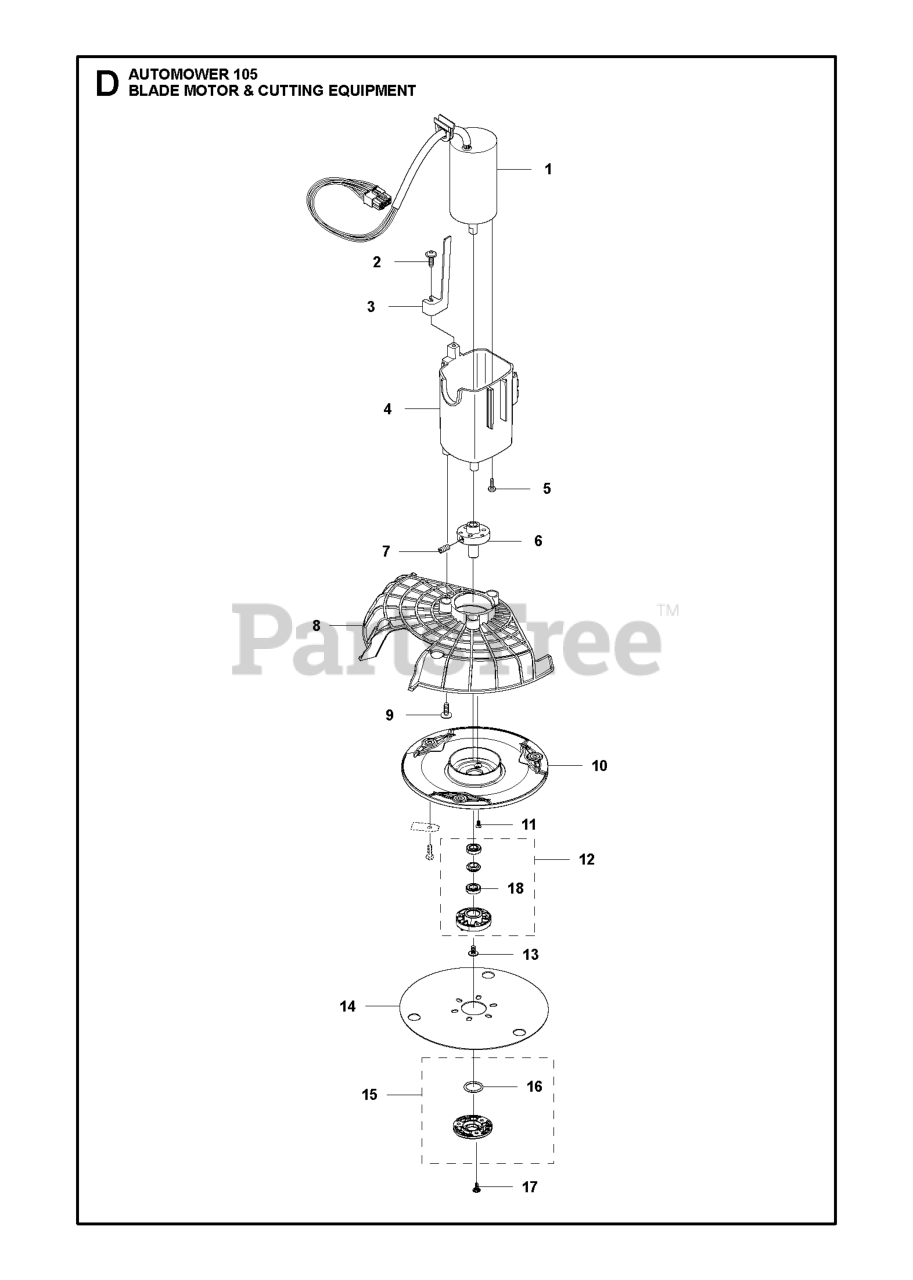

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

17

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.49

$

In Stock, Qty 11

0

18

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$341.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575543310

SCREW SILVER 10MM

Note: Screw, Grey (14 mm)

$3.49

$

In Stock, Qty 9

0

4

Husqvarna 581020301

MOTOR HOUSING

Note: Motor Housing

$26.99

$

Usually ships in 3-10 days

0

8

Husqvarna 579758301

GUARD CUTTING DISC

Note: Guard, Cutting Disc

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 587423601

NEEDS DESCRIPTION

Note: Cutting Disc

$

$

Currently unavailable

9

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$3.49

$

In Stock, Qty 11

0

12

Husqvarna 588421702

BEARING HOUSING ASSY

Note: Bearing Housing ASSY

$28.99

$

In Stock, only 2 left!

0

1

Husqvarna 584989302

MOTOR CUTTING, TYPE 2

Note: Cutting Motor

$159.99

$

Usually ships in 3-10 days

0

18

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

3

Husqvarna 574503501

HEIGHT INDICATOR

Note: Height Indicator

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587449601

COVER KIT BEARING

Note: Bearing Cover

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 535076001

SCREW

Note: Screw

$3.99

$

In Stock, Qty 17

0

11

Husqvarna 535130502

SCREW TORX M4X8 8.8 NYLON PATC

Note: Screw

$3.49

$

In Stock, only 1 left!

0

6

Husqvarna 587423401

NEEDS DESCRIPTION

Note: Hub, Cutting Motor

$

$

Currently unavailable

14

Husqvarna 587423701

NEEDS DESCRIPTION

Note: Skid Plate

$

$

Currently unavailable

5

Husqvarna 588222201

SCREW ITXPANM M4X12 A2-70 PAT

Note: Screw

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 576213501

SCREW IHSETM M5X10 8.8 ZP-BC

Note: Stop Screw

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 585297501

O-RING 20X2,5 MM

Note: O-Ring

$4.99

$

In Stock, Qty 8

0
