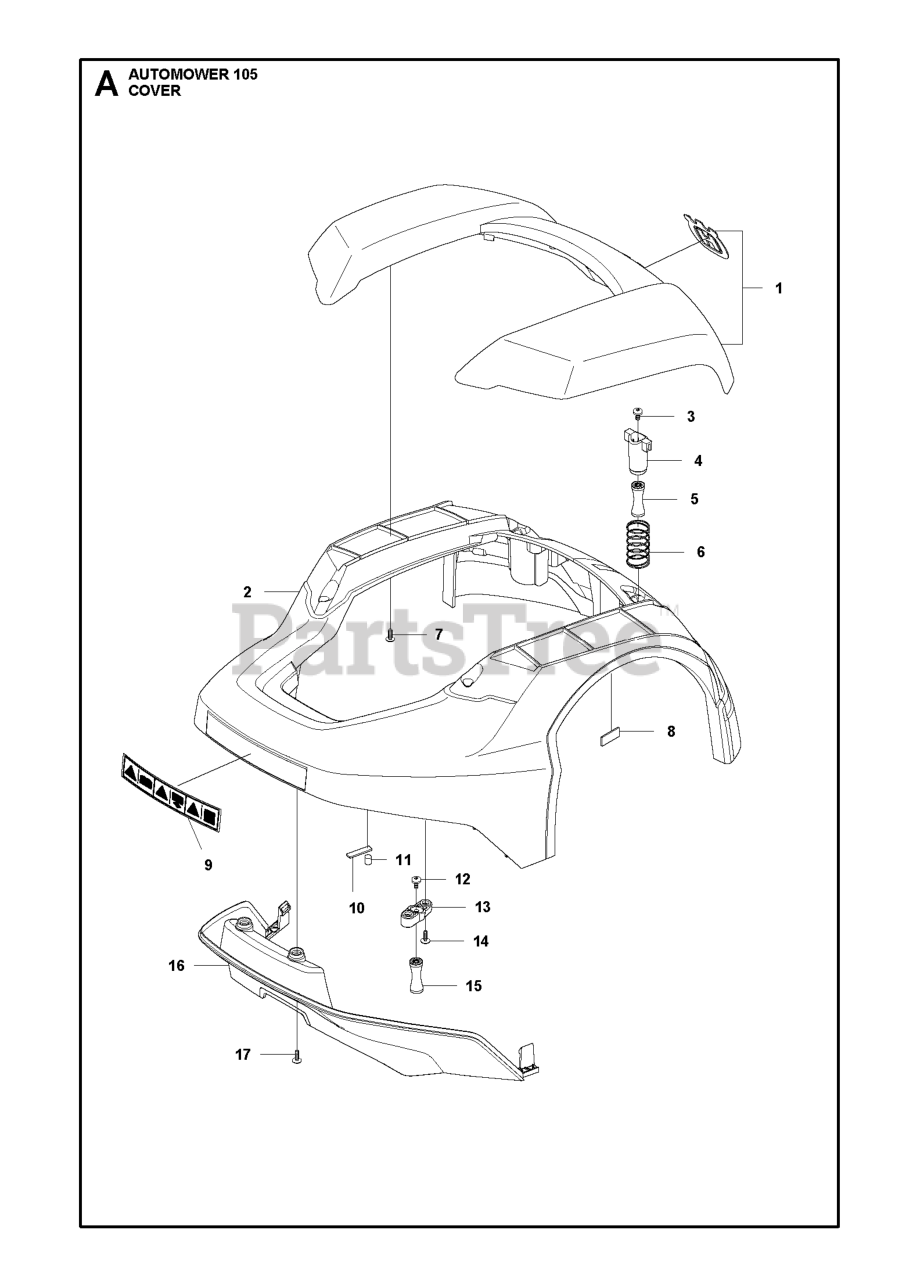

105 - Husqvarna Automower Robotic Lawn Mower (2020) COVER Parts Diagram

Automower Robotic Lawn Mower

COVER Parts Diagram

  • Title

13

Husqvarna 575416002

SUPPORT CLAMP USE WITH M5 X 1

Note: Support Clamp

$

$

Not available

11

Husqvarna 576183301

MAGNET COLLISION SENSOR

Note: Magnet, Collision Sensor

$

$

Not available

8

Husqvarna 576183202

MAGNET LIFT SENSOR

Note: Magnet, Lift Sensor

$

$

Not available

2

Husqvarna 577747202

Note: Main Body KIT

$

$

Currently unavailable

4

Husqvarna 574469002

BRACKET COLUMN FRONT USE WITH

Note: Bracket, Lift Sensor

$6.99

$

Usually ships in 3-10 days

0

12

Husqvarna 590740201

SCREW ISO 14583 M5X12 T25 A2-7

Note: Screw

$

$

Not available

6

Husqvarna 574485102

SPRING LIFT SENSOR L = 35 MM

Note: Spring, Lift Sensor

$

$

Not available

3

Husqvarna 590740201

SCREW ISO 14583 M5X12 T25 A2-7

Note: Screw

$

$

Not available

1

Husqvarna 577734702

Note: Bumper Front, Grey

$

$

Currently unavailable

7

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$3.99

$

In Stock, Qty 14

0

5

Husqvarna 574469102

DAMPER RUBBER 40 SHORE

Note: Rubber Damper

$

$

Not available

15

Husqvarna 574469102

DAMPER RUBBER 40 SHORE

Note: Rubber Damper

$

$

Not available

14

Husqvarna 575543314

SCREW 14MM

Note: Screw, Grey (14 mm)

$3.99

$

In Stock, Qty 14

0

16

Husqvarna 574465202

NEEDS DESCRIPTION

Note: Bumper, Rear

$

$

Currently unavailable

17

Husqvarna 575543310

SCREW SILVER 10MM

Note: Screw, Grey (10 mm)

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 576030101

PLATE CARRIER MAGNET

Note: Plate, Collision Sensor

$

$

Not available

9

Husqvarna 576240001

Note: Warning Label

$

$

Currently unavailable
