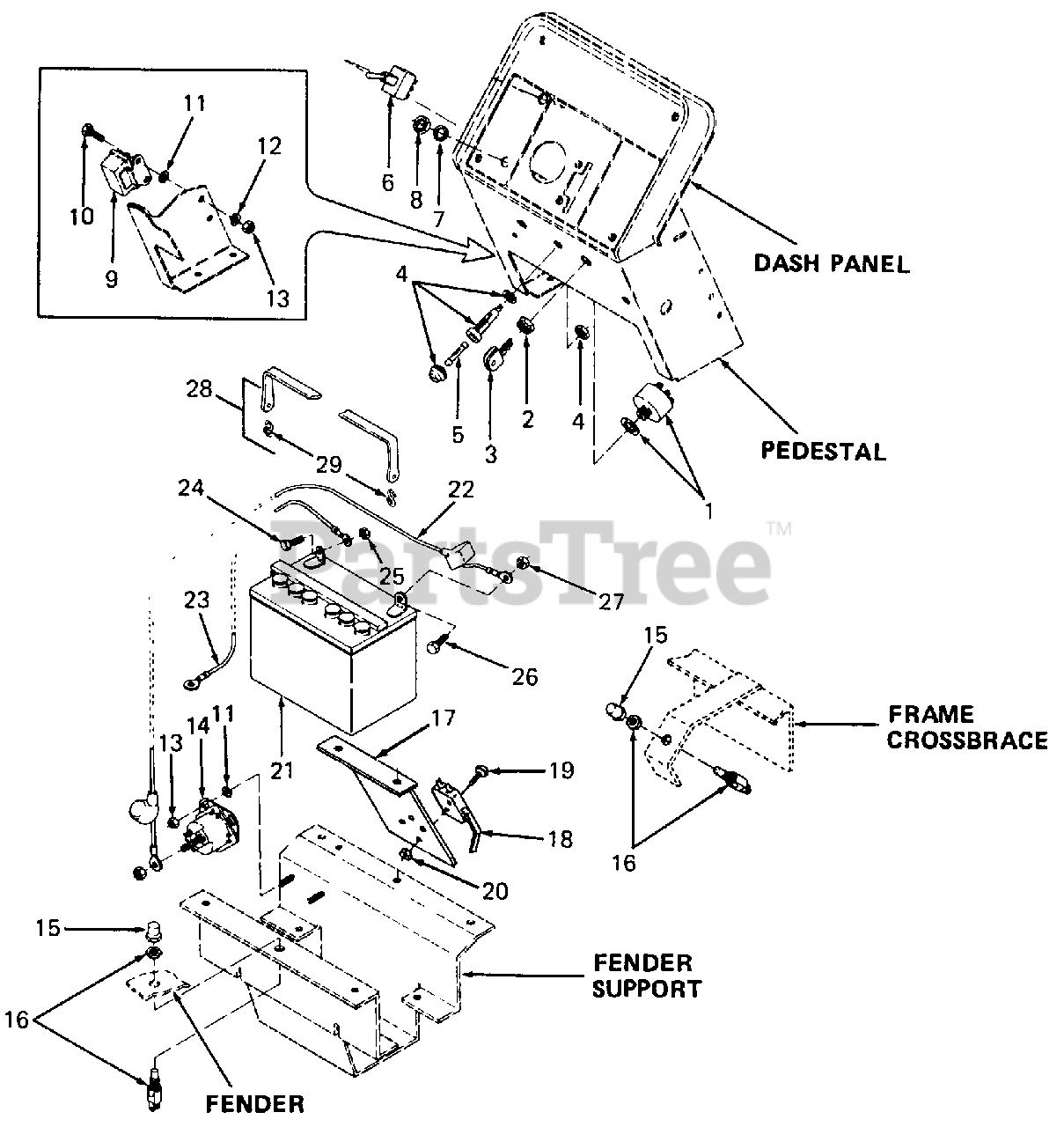

1050 (149-605-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

Cub Cadet 725-3155

Harness, Wire

$

$

Not available

1

Cub Cadet 725-3026

Switch, Ignition Key
(Superseded to 925-3026)

$40.99

$

In Stock, Qty 20+

0

2

Cub Cadet 712-3013

Nut, Switch

$

$

Not available

3

Cub Cadet 759-3476

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

4

Cub Cadet 725-3011

Fuse Holder
(Superseded to 925-3011)

$20.99

$

In Stock, Qty 10

0

5

Cub Cadet 725-3120

Fuse, 20 Amp
(Superseded to 925-3120)

$

$

Not available

6

Cub Cadet 725-0893

Switch, PTO
(Superseded to 925-0893)

$76.99

$

In Stock, Qty 17

0

7

Cub Cadet 736-3003

Washer, Flat, .531 X .680 X .054 Thk

$

$

Not available

8

Cub Cadet 712-3014

Nut, Hex, 1/2-27 X .100 Thk

$

$

Not available

9

Cub Cadet 725-0894

Relay
(Superseded to 925-0894)

$

$

Not available

10

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0222

Washer, Ext Lock, 1/4

$5.49

$

In Stock, only 3 left!

0

12

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

13

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 725-3001

Solenoid
(Superseded to 925-3001)

$54.99

$

In Stock, Qty 13

0

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0349

Nut, Hex Mach, #10-32

$4.49

$

In Stock, Qty 5

0

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 735-3006

Boot, Switch

$

$

Not available

16

Cub Cadet 725-3060

Switch w/Nut
(Superseded to 925-3060)

$37.99

$

In Stock, Qty 6

0

17

Cub Cadet 703-1718

Bracket, Micro Switch

$

$

Not available

18

Cub Cadet 725-3145A

Switch, Reverse

$

$

Not available

19

Cub Cadet 710-3112

Screw, Hex Mach, #4-40 X .75 Lg

$

$

Not available

20

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

21

Cub Cadet 725-3061

Battery
(Superseded to 925-1707D)

$

$

Not available

22

Cub Cadet 725-3078

Cable, Positive Battery
(Superseded to 925-3078)

$

$

Not available

23

Cub Cadet 725-0978

Cable, Negative Battery
(Superseded to 925-0978)

$

$

Not available

24

Cub Cadet 710-0703

Bolt, Carriage, 1/4-20 X .75 Lg

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 703-0017

Strap Assy, Battery
(Superseded to 903-0017)

Note: [Includes Ref No. 29 (Qty 2)]

$20.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 747-3006

Hook, Battery Strap

$

$

Currently unavailable
