10500 - Toro 21" Rear Bagging Walk-Behind Mower (SN: 001000001 - 001999999) (1981) TRACTION CONTROL ASSEMBLY Parts Diagram

21" Rear Bagging Walk-Behind Mower

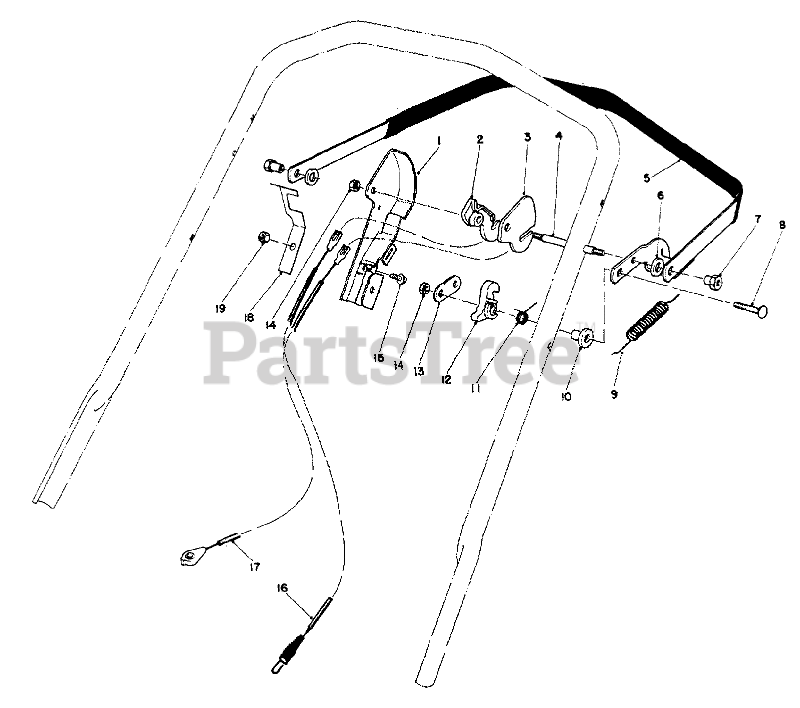

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 43-8790

Cable Support

$

$

Not available

2

Toro 43-7010

Cable Hook

$

$

Not available

3

Toro 43-8800

Cable Anchor

$

$

Not available

4

Toro 43-8650

Shoulder Stud

$

$

Not available

5

Toro 43-8750

Control Bar

$

$

Not available

6

Toro 43-8700

Nylon Washer

$

$

Currently unavailable

7

Toro 43-8660

Shoulder Nut

$

$

Not available

8

Toro 3229-26

Carriage Bolt

$

$

Currently unavailable

9

Toro 43-8810

Spring

$

$

Not available

10

Toro 43-8720

Spacer

$

$

Not available

11

Toro 43-8690

Spring

$

$

Currently unavailable

12

Toro 43-7000

Release Latch

$

$

Not available

13

Toro 43-8710

Link

$

$

Not available

14

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

15

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

16

Toro 43-8760

Clutch Cable Assembly

$

$

Not available

17

Toro 43-8770

Traction Cable

$

$

Not available

18

Toro 43-8680

Leaf Spring

$

$

Not available

19

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0
