10502 - Toro 21" Rear Bagging Walk-Behind Mower (SN: 001000001 - 001999999) (1981) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

21" Rear Bagging Walk-Behind Mower

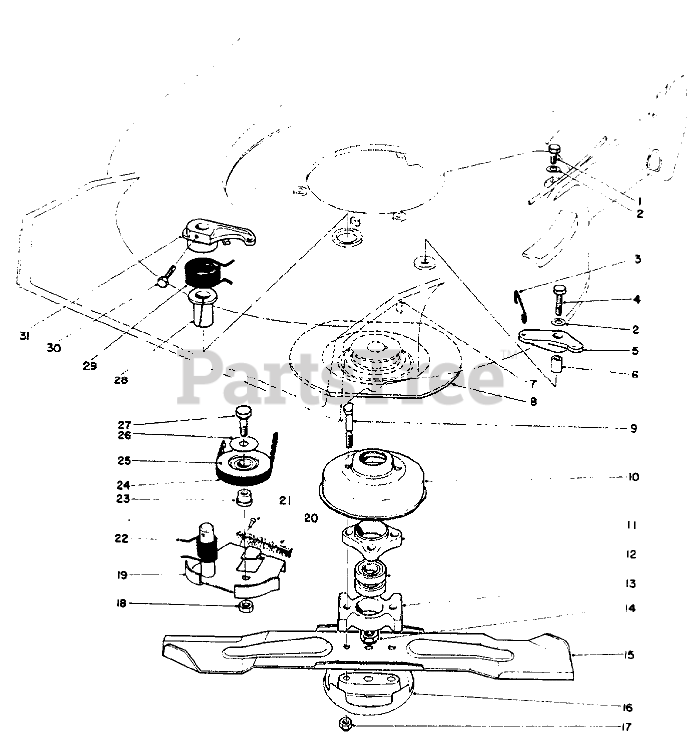

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

2

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 43-1380

Link Control

$

$

Not available

4

Toro 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

5

Toro 43-1390

Bell Crank

$

$

Not available

6

Toro 42-1330

Sleeve-Bell Crank

$

$

Not available

7

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

8

Toro 43-7720

Flywheel

$

$

Not available

9

Toro 42-3190

BOLT-BLADE

$11.99

$

In Stock, Qty 20+

0

10

Toro 42-1020

Brake Drum
(Superseded to 94-9431)

$44.99

$

In Stock, Qty 20+

0

11

Toro 42-6890

Hub Assy. (Incl. Ref. #12)

$93.99

$

In Stock, only 1 left!

0

12

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

13

Toro 42-6760

Spacer Blade
(Superseded to 107-4275)

$23.99

$

In Stock, only 1 left!

0

14

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

15

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 7

0

16

Toro 42-0910

Anti Scalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 2 left!

0

17

Toro 3296-55

Locknut

$

$

Currently unavailable

18

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

19

Toro 42-0940

Brake Plate
(Superseded to 11-1359)

$

$

Not available

20

Toro 42-0890

Paid
(Superseded to 11-1359)

$

$

Not available

21

Toro 3295-23

.185 DIA X .375 RT +

$9.99

$

Usually ships in 3-6 days

0

22

Toro 42-0840

Spring

$

$

Not available

23

Toro 42-4370

IDLER PULLEY HUB

$

$

Not available

24

Toro 42-0880

V-Belt
(Superseded to 42-0881)

$30.99

$

Usually ships in 3-6 days

0

25

Toro 42-0960

Idler Pulley Assembly w/Bearing

$

$

Not available

26

Toro 42-0870

Washer

$

$

Currently unavailable

27

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

28

Toro 42-1320

Split Bushing

$

$

Not available

29

Toro 44-0150

Spring

$

$

Not available

30

Toro 32104-97

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

31

Toro 42-0950

Lever

$

$

Not available
