10502 - Toro 21" Rear Bagging Walk-Behind Mower (SN: 001000001 - 001999999) (1981) Briggs Stratton Engine Model No. 110908-0529-01 Parts Diagram

21" Rear Bagging Walk-Behind Mower

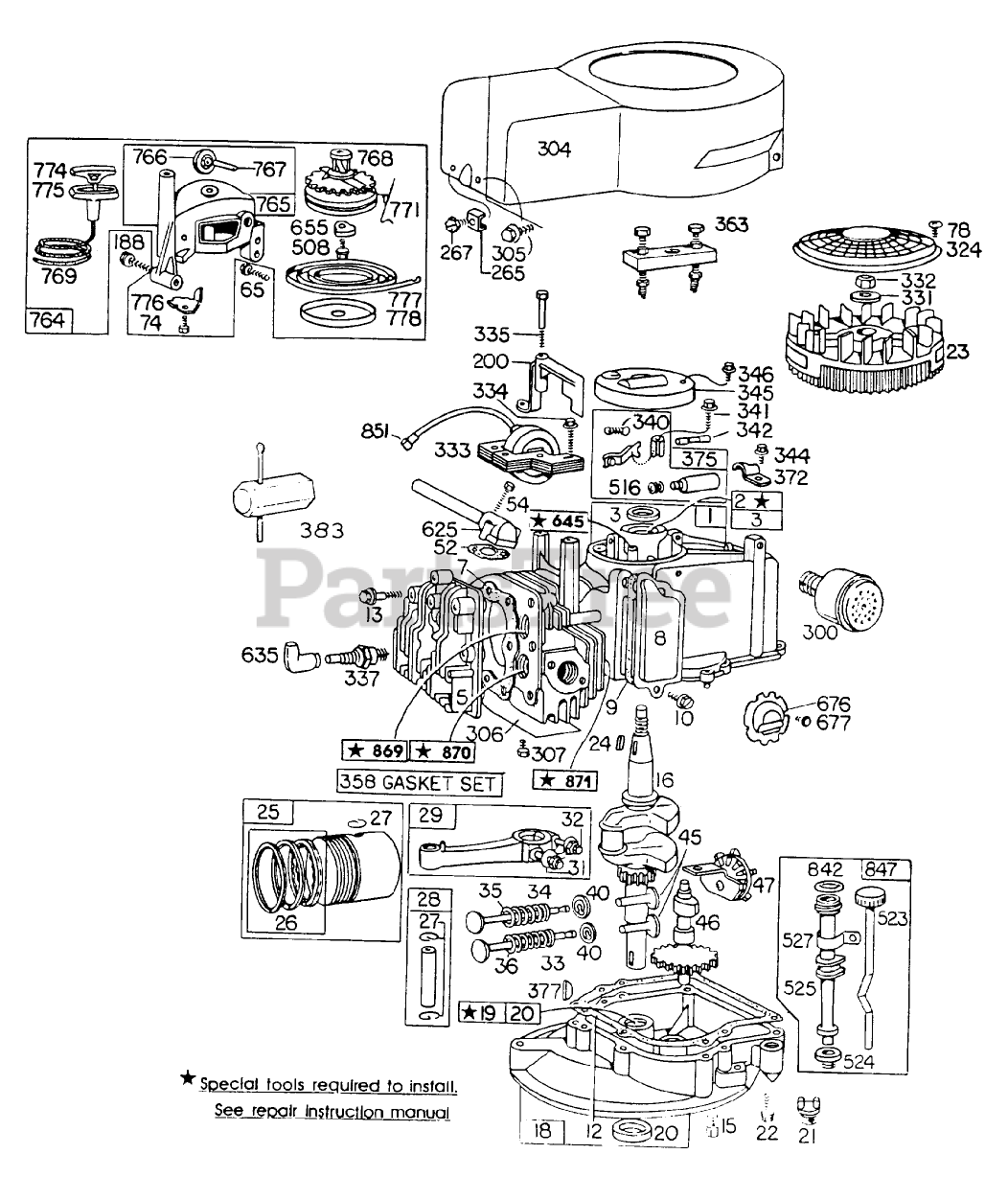

Briggs Stratton Engine Model No. 110908-0529-01 Parts Diagram

  • Title

1

Toro 391639

Cylinder Assembly

$

$

Currently unavailable

2

Toro 293708

Bushing

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

$

$

Currently unavailable

5

Toro 211851

Head-Cylinder

$

$

Currently unavailable

7

Toro 270836

Gasket-Cylinder Hd,

Note: MODEL 110900 SERIES PISTON RING SETS: Note: For chrome piston ring set-standard size-order Part No. 392330

$

$

Currently unavailable

8

Toro 298383

Breather-Valve

$

$

Currently unavailable

9

Toro 270239

Gasket Valve Cover

Note: MODEL 110900 SERIES PISTON RING SETS: Note: For chrome piston ring set-standard size-order Part No. 392330

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

12

Toro 270833

Gasket-Crankcase-.015" thick

Note: MODEL 110900 SERIES PISTON RING SETS: Note: For chrome piston ring set-standard size-order Part No. 392330

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

Note: MODEL 110900 SERIES PISTON RING SETS: Note: For chrome piston ring set-standard size-order Part No. 392330

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

Note: MODEL 110900 SERIES PISTON RING SETS: Note: For chrome piston ring set-standard size-order Part No. 392330

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

15

Toro 93418

Plug

$

$

Currently unavailable

16

Toro 261641

Crankshaft

$

$

Currently unavailable

18

Toro 392381

Sump-Oil

$

$

Currently unavailable

19

Toro 293709

Bushing-Oil Base

$

$

Currently unavailable

20

Toro 391483

Seal-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

23

Toro 391488

Flywheel-Magneto

$

$

Currently unavailable

24

Toro 61760

Key Flywheel

$

$

Currently unavailable

25

Toro 391650

Piston Assembly-Std.

$

$

Currently unavailable

Toro 391651

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 391652

Piston Assy.-.020" O.S.

$

$

Currently unavailable

Toro 391653

Piston Assy.-.030" O.S.

$

$

Currently unavailable

26

Toro 391654

Ring Set-Std.Piston

Note: MODEL 110900 SERIES PISTON RING SETS: Note: For chrome piston ring set-standard size-order Part No. 392330

$

$

Currently unavailable

Toro 391656

Ring Set-.010" O.S. Piston

$

$

Currently unavailable

Toro 391658

Ring Set-.020" O.S. Piston

$

$

Currently unavailable

Toro 391660

Ring Set-.030" O.S. Piston

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 391649

Pin Assembly-Piston-Std.

$

$

Currently unavailable

Toro 394861

Piston Assy. (Std.)

$

$

Currently unavailable

29

Toro 391640

Rod Assembly-Connecting

$

$

Currently unavailable

31

Toro 222390

DISCONTINUE-DESA

$

$

Not available

32

Toro 93670

Screw-Connecting Rod

$

$

Currently unavailable

33

Toro 212004

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261233

Valve Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 261250

Tappet-Valve

$

$

Currently unavailable

46

Toro 394845

Gear-Cam

$

$

Currently unavailable

47

Toro 294652

Oil Slinger Gear Bracket

$

$

Currently unavailable

52

Toro 270844

Gasket Intake Elbow

Note: MODEL 110900 SERIES PISTON RING SETS: Note: For chrome piston ring set-standard size-order Part No. 392330

$

$

Currently unavailable

54

Toro 93485

Screw Intake Elbow Mtg.

$

$

Currently unavailable

65

Toro 93587

Screw-Starter Mounting

$

$

Currently unavailable

74

Toro 93490

Screw

$

$

Currently unavailable

78

Toro 93758

Screw-Sem

$

$

Currently unavailable

188

Toro 93585

Screw-Sem

$

$

Currently unavailable

200

Toro 68388

Blade Governor

$

$

Currently unavailable

265

Toro 22372

Clamp-Casing

$

$

Currently unavailable

267

Toro 93469

Screw

$

$

Currently unavailable

300

Toro 391435

Muffler-Exhaust

$

$

Currently unavailable

304

Toro 391636

Housing-Blower

$

$

Currently unavailable

305

Toro 93559

Screw

$

$

Currently unavailable

306

Toro 223263

Shield-Cylinder

$

$

Currently unavailable

307

Toro 93490

Screw

$

$

Currently unavailable

324

Toro 280140

Screen-Rotating

$

$

Currently unavailable

331

Toro 220865

Washer

$

$

Currently unavailable

332

Toro 92284

Nut

$

$

Currently unavailable

333

Toro 298502

Armature-Magneto

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

335

Toro 93435

Screw-Armature Governor Blade

$

$

Currently unavailable

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

340

Toro 26018

Spring Breaker Arm

$

$

Currently unavailable

341

Toro 93381

Screw

$

$

Currently unavailable

342

Toro 65704

Plunger

$

$

Currently unavailable

344

Toro 93042

Screw

$

$

Currently unavailable

345

Toro 220366

Cover Breaker Pt. Cond.

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

358

Toro 391662

Gasket Set

$

$

Currently unavailable

363

Toro 19069

Puller-Flywheel

$

$

Currently unavailable

372

Toro 220477

Camp-Condenser

$

$

Currently unavailable

375

Toro 294628

Set

$

$

Currently unavailable

377

Toro 93065

Key-Woodruff

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

508

Toro 93158

Screw

$

$

Currently unavailable

516

Toro 1260374

Spring-Connector

$

$

Currently unavailable

523

Toro 391838

Cap with Dipstick-Oil Filler

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

$

$

Currently unavailable

525

Toro 280131

Tube-Oil Filler

$

$

Currently unavailable

527

Toro 222549

Clamp-Oil Filler Tube

$

$

Currently unavailable

625

Toro 391377

Tube-Fuel Intake

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

645

Toro 23513

Bushing-Plunger

$

$

Currently unavailable

655

Toro 222057

Anchor-Spring

$

$

Currently unavailable

676

Toro 393760

Deflector-Exhaust

$

$

Currently unavailable

677

Toro 93705

Screw

$

$

Currently unavailable

764

Toro 391486

Starter Ass-y-Vertical Pull

$

$

Currently unavailable

765

Toro 299947

Housing, Vert. Pull Starter

$

$

Currently unavailable

766

Toro 280022

Duct Body

$

$

Currently unavailable

767

Toro 231048

Pin-Small Rope Pulley

$

$

Currently unavailable

768

Toro 299948

Pulley and Gear Assy.

$

$

Currently unavailable

769

Toro 66734

Rope-Starter (48.6")

$

$

Currently unavailable

771

Toro 299961

Clip-Starter

$

$

Currently unavailable

774

Toro 280121

Insert-Starter Handle

$

$

Currently unavailable

775

Toro 280036

Grip-Starter Rope

$

$

Currently unavailable

776

Toro 222049

Guide Rope

$

$

Currently unavailable

777

Toro 390066

Spring-Starter

$

$

Currently unavailable

778

Toro 280021

Cover-Starter

$

$

Currently unavailable

842

Toro 270920

O-Ring

$

$

Currently unavailable

847

Toro 392056

Filler Group-Oil

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable

869

Toro 210879

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 211291

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 63709

Bushing-Guide

$

$

Currently unavailable
