10502 - Toro 21" Rear Bagging Walk-Behind Mower (SN: 001000001 - 001999999) (1981) CARBURETOR ASSEMBLY BRIGGS & STRATTON MODEL NO. 110908-0529-01 Parts Diagram

21" Rear Bagging Walk-Behind Mower

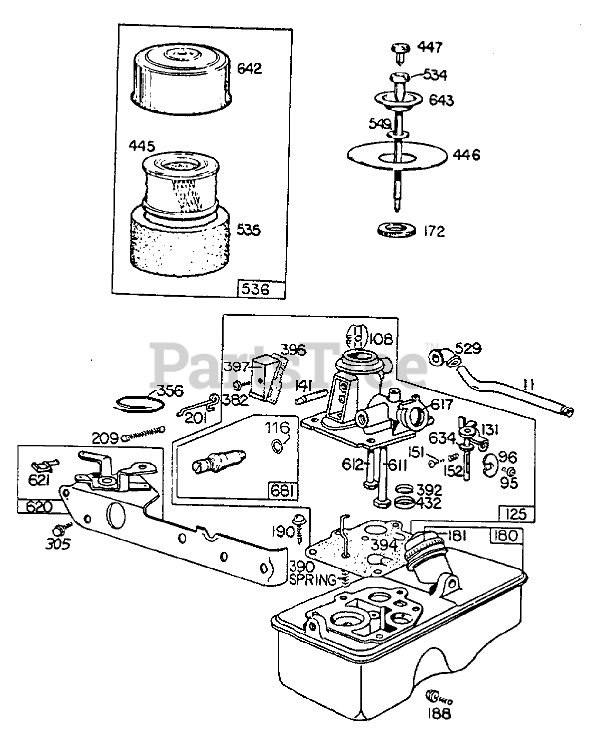

CARBURETOR ASSEMBLY BRIGGS & STRATTON MODEL NO. 110908-0529-01 Parts Diagram

  • Title

11

Briggs & Stratton 231043

Tube Breather

$7.49

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 211237

Valve

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280178

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

O-Ring
(Superseded to 691898)

$5.49

$

In Stock, only 4 left!

0

125

Briggs & Stratton 394065

Carburetor Assembly
(Superseded to 395957)

$

$

Not available

131

Briggs & Stratton 299977

Shaft & Lever-Throttle

$15.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Rd. Hd

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adj
(Superseded to 691783)

$7.99

$

In Stock, only 2 left!

0

172

Briggs & Stratton 271077

Gasket-Air Cleaner
(Superseded to 270055)

$3.99

$

Usually ships in 2-12 days

0

180

Toro 381694

Tank Assembly-Fuel

$

$

Currently unavailable

181

Briggs & Stratton 391494

Cap-Fuel Tank
(Superseded to 493982S)

$4.99

$

In Stock, Qty 5

0

188

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, Qty 7

0

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 261027

Link-Governor

$5.99

$

Usually ships in 2-12 days

0

209

Toro 201419

Spring-Governor (For 2500 to 2700 RPM)

$

$

Currently unavailable

305

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

356

Briggs & Stratton 298479

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

382

Briggs & Stratton 93545

Screw-Choke Link Cover

$3.49

$

Usually ships in 2-12 days

0

390

Briggs & Stratton 261249

Spring-Diaphragm

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, Qty 5

0

394

Briggs & Stratton 391643

Diaphragm
(Superseded to 391681)

$19.99

$

In Stock, only 2 left!

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, only 2 left!

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 20+

0

445

Briggs & Stratton 392308

Cartridge-Air Cleaner
(Superseded to 392308S)

$16.99

$

In Stock, Qty 5

0

446

Briggs & Stratton 222844

Base-Air Cleaner
(Superseded to 691735)

$17.99

$

Usually ships in 2-12 days

0

447

Briggs & Stratton 93913

Screw-Cover Mtg.

$3.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$4.49

$

In Stock, Qty 20+

0

534

Briggs & Stratton 93818

Screw-Air Cleaner
(Superseded to 94005)

$16.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 270979

Element-Air Cleaner
(Superseded to 271466)

$4.49

$

In Stock, Qty 12

0

536

Briggs & Stratton 392368

Cleaner Assy.-Air

$50.99

$

Usually ships in 2-12 days

0

549

Briggs & Stratton 270978

Washer-Air Cleaner

$5.49

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 297219

Pipe Fuel (long)
(Superseded to 297219S)

$8.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

$7.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 391442

Plate-Carburetor Control

$34.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 16

0

642

Briggs & Stratton 222626

Cover Air Cleaner

$

$

Not available

643

Briggs & Stratton 222594

Cup-Air Cleaner

$4.49

$

In Stock, only 1 left!

0

681

Briggs & Stratton 393451

Needle Valve Kit
(Superseded to 395508)

$8.99

$

Usually ships in 2-12 days

0
