10510 - Toro 21" Rear Bagging Walk-Behind Mower (SN: 001000001 - 001999999) (1981) Handle Assembly Parts Diagram

21" Rear Bagging Walk-Behind Mower

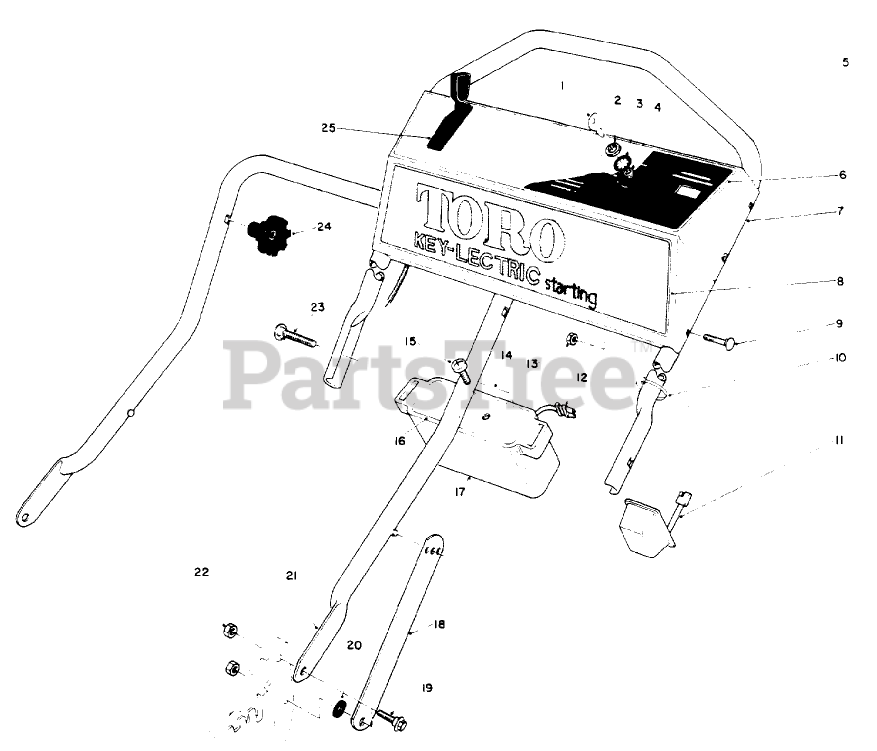

Handle Assembly Parts Diagram

  • Title

1

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 10

0

2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

3

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

4

Toro 21-5190

STARTER SWITCH

$

$

Not available

5

Toro 43-1340

DISCONTINUED

$

$

Not available

6

Toro 434610

Instruction Decal

$

$

Currently unavailable

7

Toro 43-4470

Control Plate

$

$

Currently unavailable

8

Toro 43-4620

Decal-Toro Key-Lectric Starting

$

$

Currently unavailable

9

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

10

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7

0

11

Toro 6-9780

See Supercession: 131-0848
(Superseded to 131-0848)

$74.99

$

Usually ships in 3-6 days

0

12

Toro 11-3790

DISCONTINUED
(Superseded to 49-8141)

$

$

Not available

13

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 17

0

14

Toro 36-5380

DISCONTINUED

$

$

Not available

15

Toro 32104-129

DISCONTINUED

$

$

Not available

16

Toro 39-0630

DISCONTINUED

$

$

Not available

17

Toro 39-0640

DISCONTINUED

$

$

Not available

18

Toro 43-1370

See Supercession: 98-7138
(Superseded to 98-7138)

$

$

Not available

19

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 2 left!

0

20

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 11

0

21

Toro 43-1360

DISCONTINUED
(Superseded to 43-1361)

$

$

Not available

22

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

23

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

24

Toro 19-4050

KNOB

$18.99

$

In Stock, only 2 left!

0

25

Toro 42-3920

See Supercession: 42-3922
(Superseded to 42-3922)

$

$

Not available

Toro 38-4180

See Supercession: 99-5262
(Superseded to 99-5262)

Note: Not illustrated

$

$

Not available
