10515 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) DECK AND WHEEL ASSEMBLY (HAND PUSH) Parts Diagram

Gold Series Walk-Behind Mower

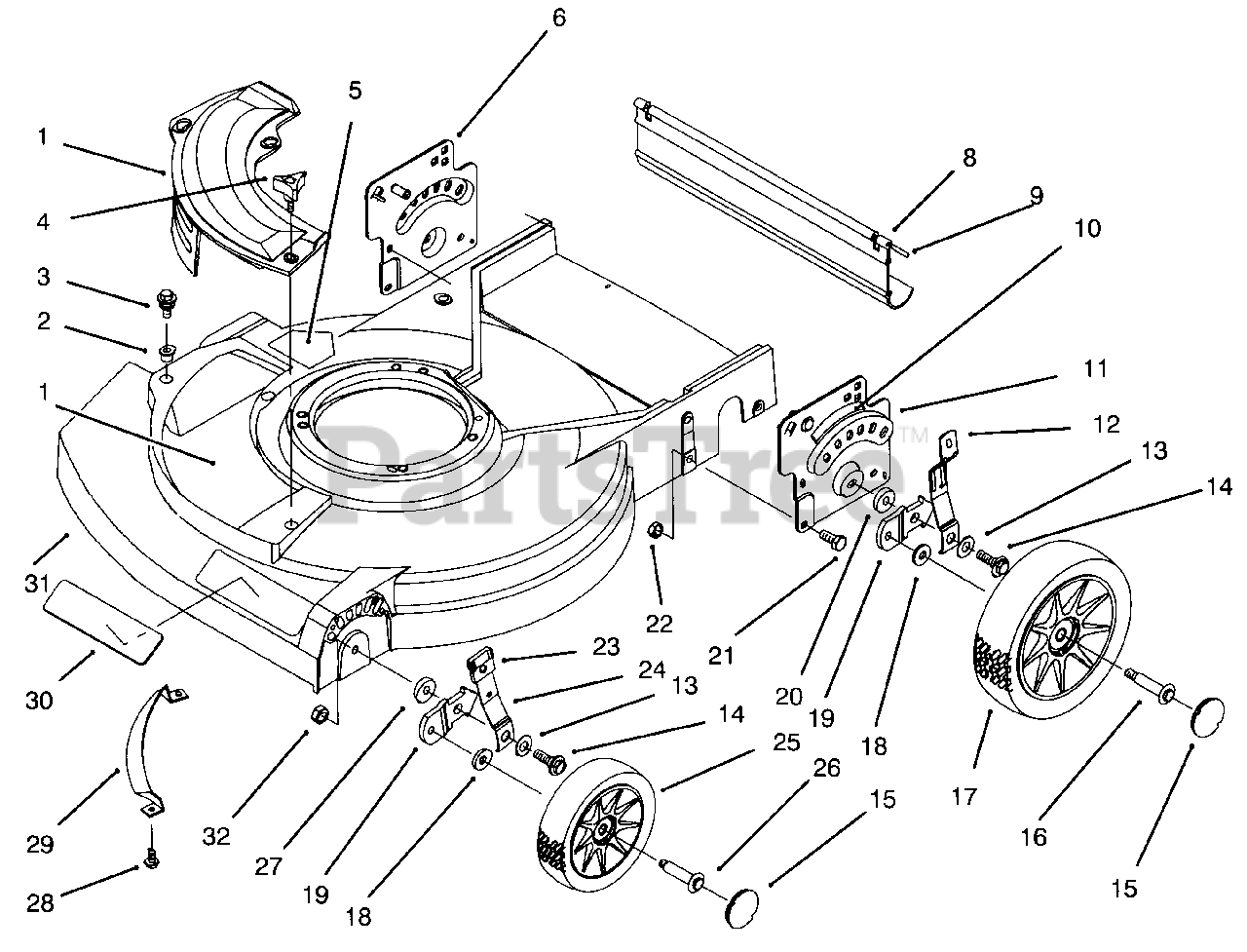

DECK AND WHEEL ASSEMBLY (HAND PUSH) Parts Diagram

  • Title

1

Lawn-Boy 614545

Cover-Plate, Mulch
(Superseded to 92-8630)

$

$

Not available

Lawn-Boy 607560

Cover-Side Discharge Note: See Page i Accessories. Some model lawnmower may have one or more accessories.
(Superseded to 95-7052)

Note: Not Illustrated

$38.99

$

In Stock, Qty 9

0

2

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 614677

Screw-Thread Forming

$4.99

$

In Stock, Qty 12

0

4

Lawn-Boy 614682

Knob
(Superseded to 98-8332)

$5.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 39-5770

Decal-Danger (English)

$9.49

$

In Stock, Qty 7

0

Lawn-Boy 92-5429

Decal-Danger (French/English)

Note: Not Illustrated

$

$

Not available

6

Lawn-Boy 92-1032

Bracket-Handle, R.H.

$

$

Not available

8

Lawn-Boy 92-4875

Shield-Trailing

$

$

Not available

9

Lawn-Boy 32121-61

Pin-Roll

$1.99

$

In Stock, Qty 6

0

10

Lawn-Boy 92-4893

Decal-H.O.C. L.H.

$

$

Not available

Lawn-Boy 92-4892

Decal-H.O.C. R.H.

Note: Not Illustrated

$

$

Not available

11

Lawn-Boy 92-1031

Bracket-Handle

$

$

Not available

12

Lawn-Boy 92-1005

Spring Arm Assembly

$21.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 3290-413

Washer-Belleville

$5.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-4856

Bolt-Shoulder

$81.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-1604

Hub Cap

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 614650

Bolt-Wheel

$4.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 684777

Wheel Assembly 8"

$55.99

$

In Stock, Qty 7

0

18

Lawn-Boy 40-1940

Washer-Wheel Bolt

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 614637

Bracket-H.O.C.
(Superseded to 95-7403-03)

$

$

Not available

20

Lawn-Boy 603620

Washer

$6.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 322-45

Screw
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 92-1008

Knob-Spring Arm

$15.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 92-1006

Spring Arm Assembly

$14.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 684776

Wheel-6"

$35.99

$

In Stock, Qty 18

0

26

Lawn-Boy 92-1099

Bolt-Wheel

$8.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 67-9760

Washer

$

$

Not available

28

Lawn-Boy 46-6811

Screw

$3.99

$

In Stock, only 3 left!

0

29

Lawn-Boy 608175

Bar-Toe

$82.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 614701

Applique

$

$

Not available

31

Lawn-Boy 16-2019

Housing-21" (Incl. Ref. #5 & 30)
(Superseded to 99-6404)

$1445.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0
