10519 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) HOUSING ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

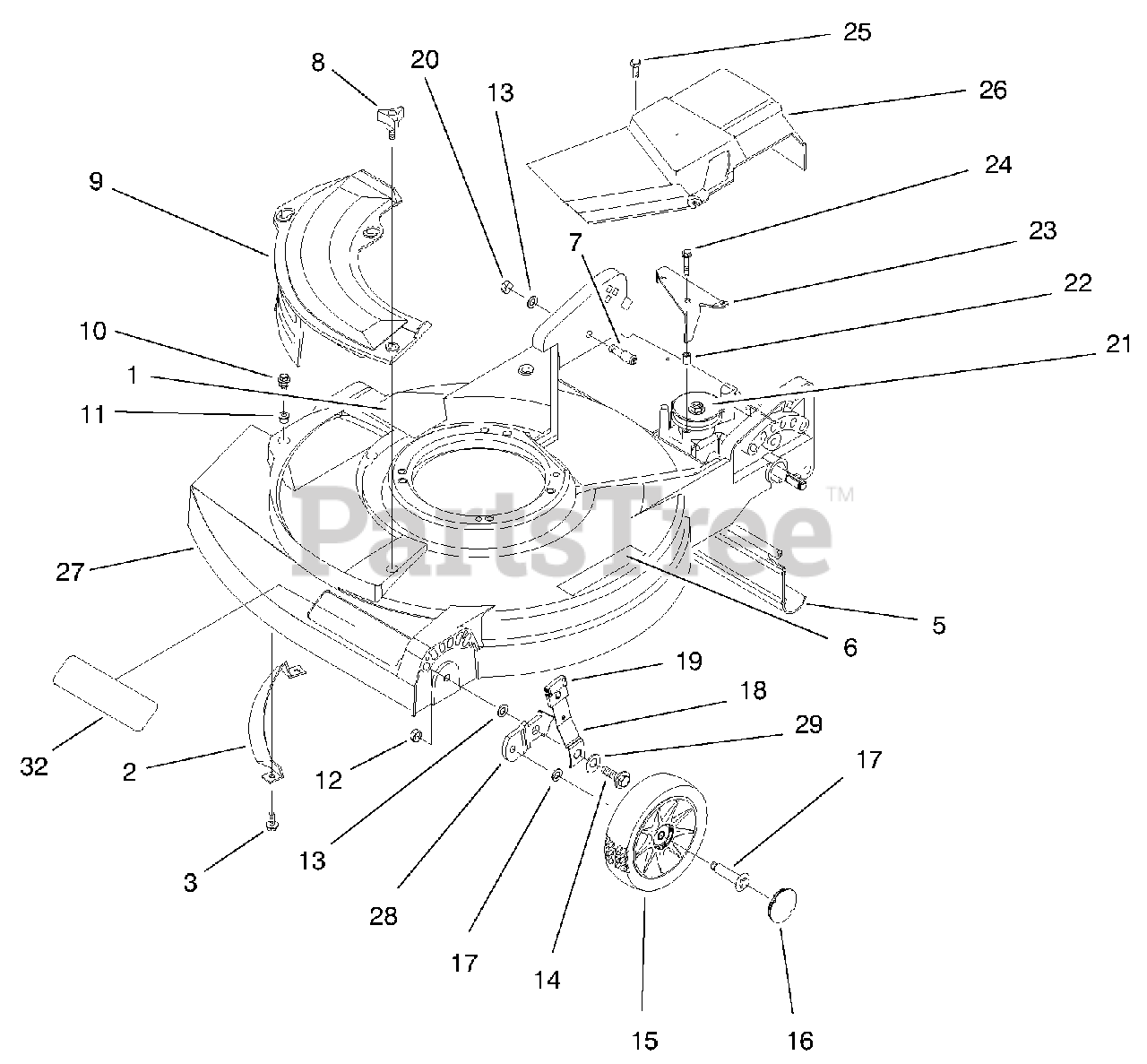

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 39-5770

Decal-Danger

$7.99

$

In Stock, Qty 8

0

2

Lawn-Boy 608175

Toe Bar 21

$75.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, Qty 7

0

5

Lawn-Boy 92-7736

Shield-Trailing

$39.99

$

In Stock, Qty 5

0

6

Lawn-Boy 93-7250

Decal-Warning

$14.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 92-9673

Bolt-Shoulder

$7.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 614682

Knob-Cover Plate
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

9

Lawn-Boy 92-8630

Mulch Plate-21"

$

$

Not available

10

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 92-4856

Bolt-Shoulder

$5.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 684776

ASM-Wheel & Tire 6"

$33.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 92-1604

Cap-Hub

$2.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-1099

Bolt-Shoulder 6" Wheel

$7.49

$

In Stock, Qty 10

0

18

Lawn-Boy 92-1006

ASM-Spring Arm

$11.99

$

In Stock, Qty 7

0

19

Lawn-Boy 92-1008

Knob-Height Adjust

$12.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 610358

Nut-Lock

$2.49

$

In Stock, Qty 12

0

21

Lawn-Boy 92-7869

ASM-Gear Case

$

$

Not available

22

Lawn-Boy 46-5551

Bushing-Spacer

$1.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 92-7699

Bracket-Actuator
(Superseded to 92-7699-03)

$11.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 92-7748

Screw
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 16

0

25

Lawn-Boy 12-5450

Screw-Thd Form

$8.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 92-8852

Cover-Drive
(Superseded to 104-7662)

$77.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 16-5809

Housing-21" Sp (Incl. Ref. #1 & 6)

$767.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 614637

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

29

Lawn-Boy 3290-413

Washer-Spring

$4.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

$30.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 93-0290

Decal-Deck

$

$

Not available
