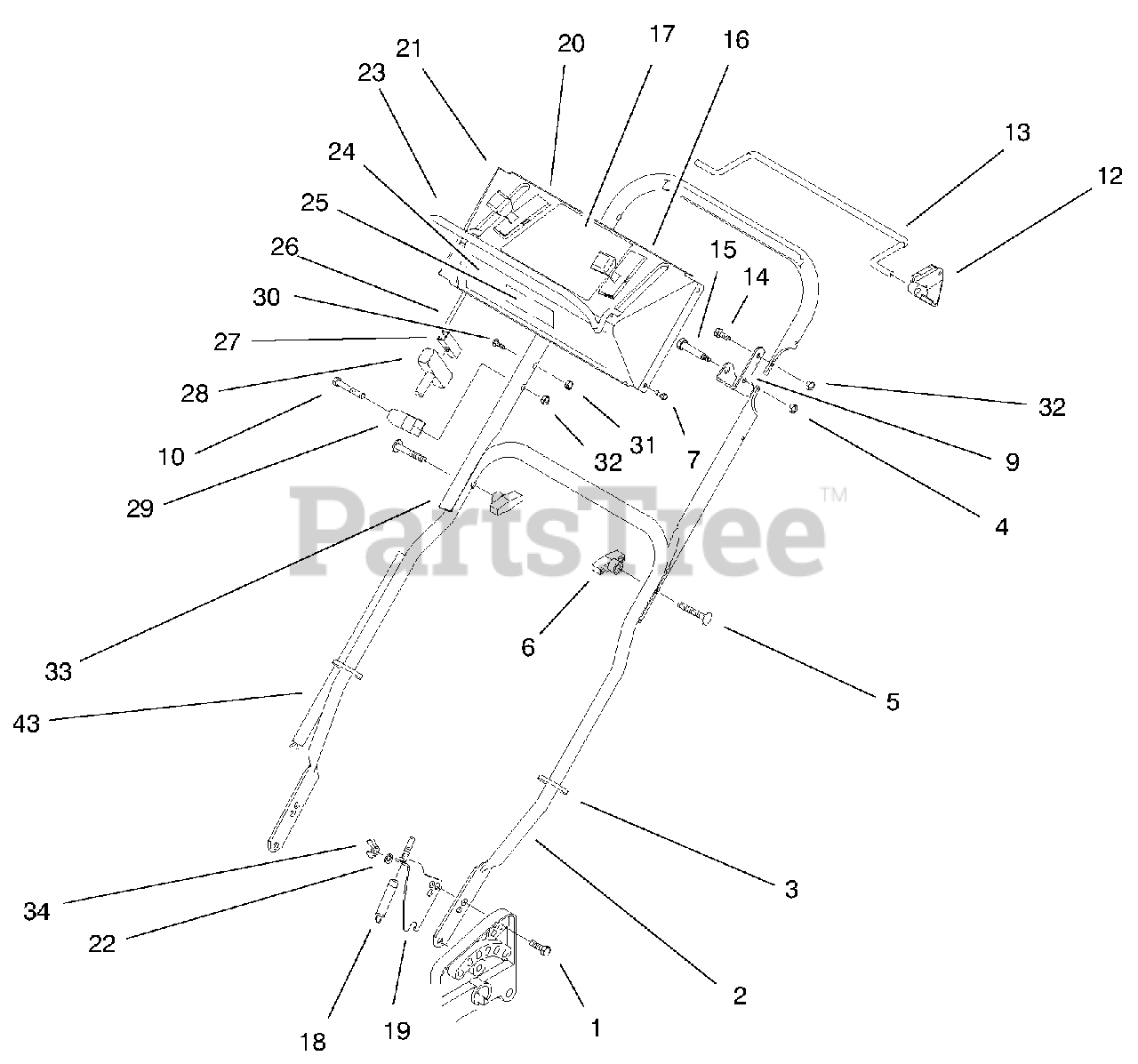

10525 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) HANDLE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3230-29

Bolt-CARR

$2.99

$

In Stock, Qty 6

0

2

Lawn-Boy 92-6537

Handle Section-Lower
(Superseded to 92-6537-05)

$

$

Not available

3

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 98-7134

Knob

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 92-9665

Screw-Phil

$1.99

$

In Stock, Qty 11

0

9

Lawn-Boy 92-1094

Bail Stop Bracket

$36.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 321-51

Bolt-Hex

$1.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-1001

Bail-Sp Control
(Superseded to 92-1001-03)

$50.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 321-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 613050

Bolt

$11.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 95-7410

Throttle Cable

$82.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 98-4469

Decal-Control Panel

$11.99

$

In Stock, Qty 8

0

18

Lawn-Boy 92-6518

Cable

$43.99

$

In Stock, Qty 9

0

19

Lawn-Boy 92-7899

Bracket-Traction Cable
(Superseded to 92-7899-03)

$9.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 92-8926

Control-Speed

$79.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 99-1563

Panel-Control

$

$

Not available

22

Lawn-Boy 3253-33

Washer-Lock

$1.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 92-1093

Engine Control Bail

$

$

Not available

24

Lawn-Boy 98-1565

Decal-Panel Sp

$

$

Not available

26

Lawn-Boy 95-7411

Cable-Control

$63.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612824

Clip-Rope

$3.99

$

In Stock, Qty 13

0

28

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$18.99

$

In Stock, Qty 6

0

29

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 18

0

30

Lawn-Boy 92-2268

Handle Screw

$2.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 92-2928

Bracket-Cable Anchor

$13.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 92-1092

Handle-Upper
(Superseded to 92-1092-05)

$151.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 32103-29

Nut-Wing

$5.99

$

In Stock, Qty 12

0
