10525 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) HOUSING ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

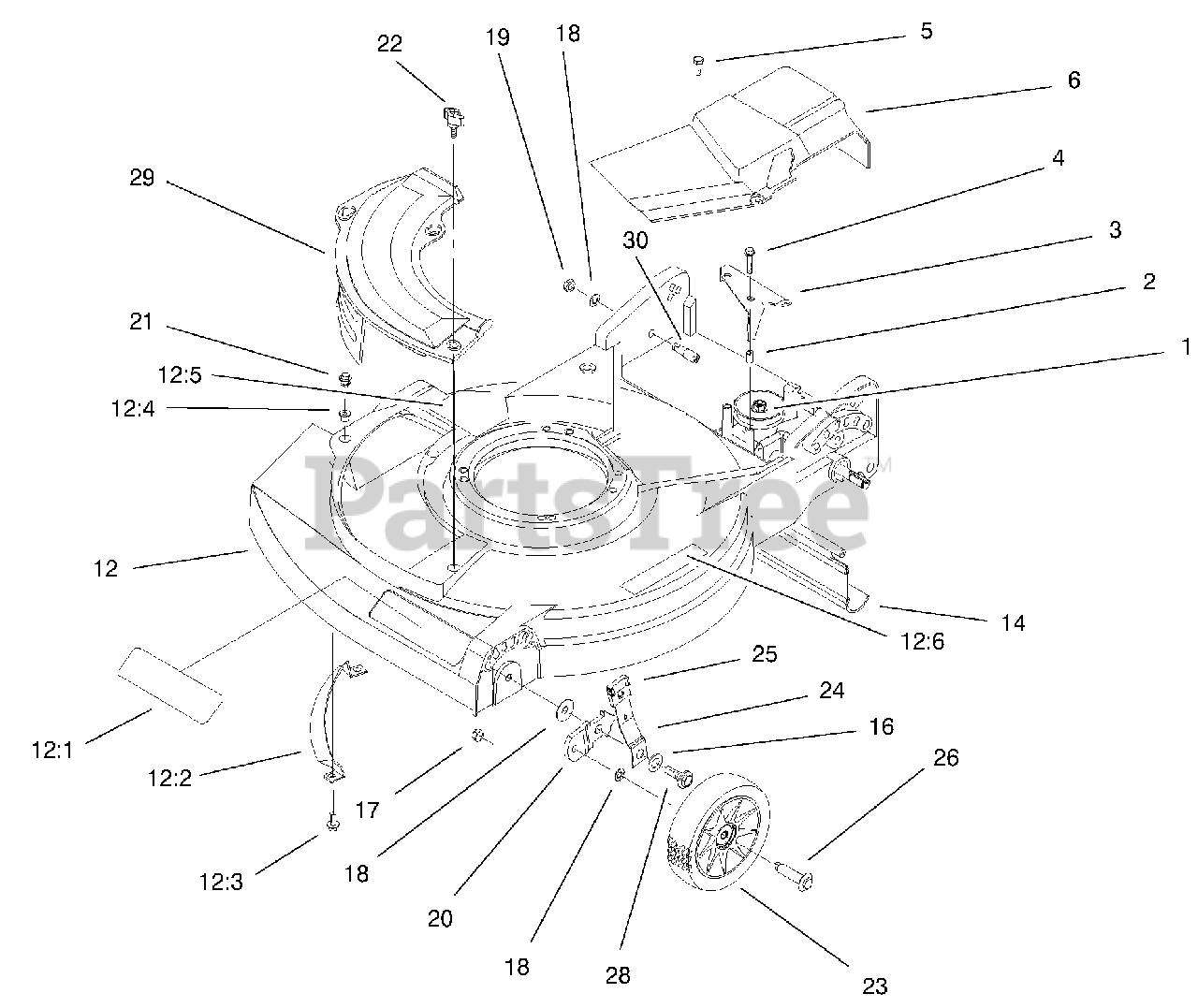

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-7869

Gear Case ASM

$

$

Not available

2

Lawn-Boy 46-5551

Spacer

$1.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-7699-03

Bracket-Actuator

$11.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-7748

Screw-HWH
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 16

0

5

Lawn-Boy 12-5450

Screw

$8.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 98-4493

Cover-Drive

$40.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 99-1566

Housing

$

$

Not available

12:1

Lawn-Boy 95-7421

Decal-Deck

$10.99

$

Usually ships in 3-6 days

0

12:2

Lawn-Boy 608175

Toe Bar

$75.99

$

Usually ships in 3-6 days

0

12:3

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, Qty 7

0

12:4

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

12:5

Lawn-Boy 43-8480

Decal-Danger

$6.49

$

In Stock, Qty 8

0

12:6

Lawn-Boy 93-7250

Decal-Warning

$14.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 92-7736

Shield-Trailing

$39.99

$

In Stock, Qty 5

0

16

Lawn-Boy 3290-413

Washer-Spring

$4.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 610358

Nut-Lock

$2.49

$

In Stock, Qty 12

0

20

Lawn-Boy 95-7403-03

Bracket-Wheel Height Adjustment

$

$

Not available

21

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 98-8332

Knob

$5.49

$

In Stock, Qty 13

0

23

Lawn-Boy 684776

Wheel & Tire ASM

$33.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 92-1006

Spring Arm ASM-Front

$11.99

$

In Stock, Qty 7

0

25

Lawn-Boy 92-1008

Knob-Lever,Height Adjustment

$12.99

$

In Stock, only 3 left!

0

26

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, Qty 10

0

28

Lawn-Boy 92-4856

Bolt-Shoulder

$5.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

30

Lawn-Boy 92-9673

Screw-Torx

$7.49

$

In Stock, only 3 left!

0

99

Lawn-Boy 614249

Tie Strap

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

99

Lawn-Boy 95-7052

Plate-Cover

Note: Not illustrated

$30.99

$

In Stock, only 2 left!

0
