10527 STE (954633545-B) - Husqvarna 27" Snow Blower (2004-09) Wheels Parts Diagram

27" Snow Blower

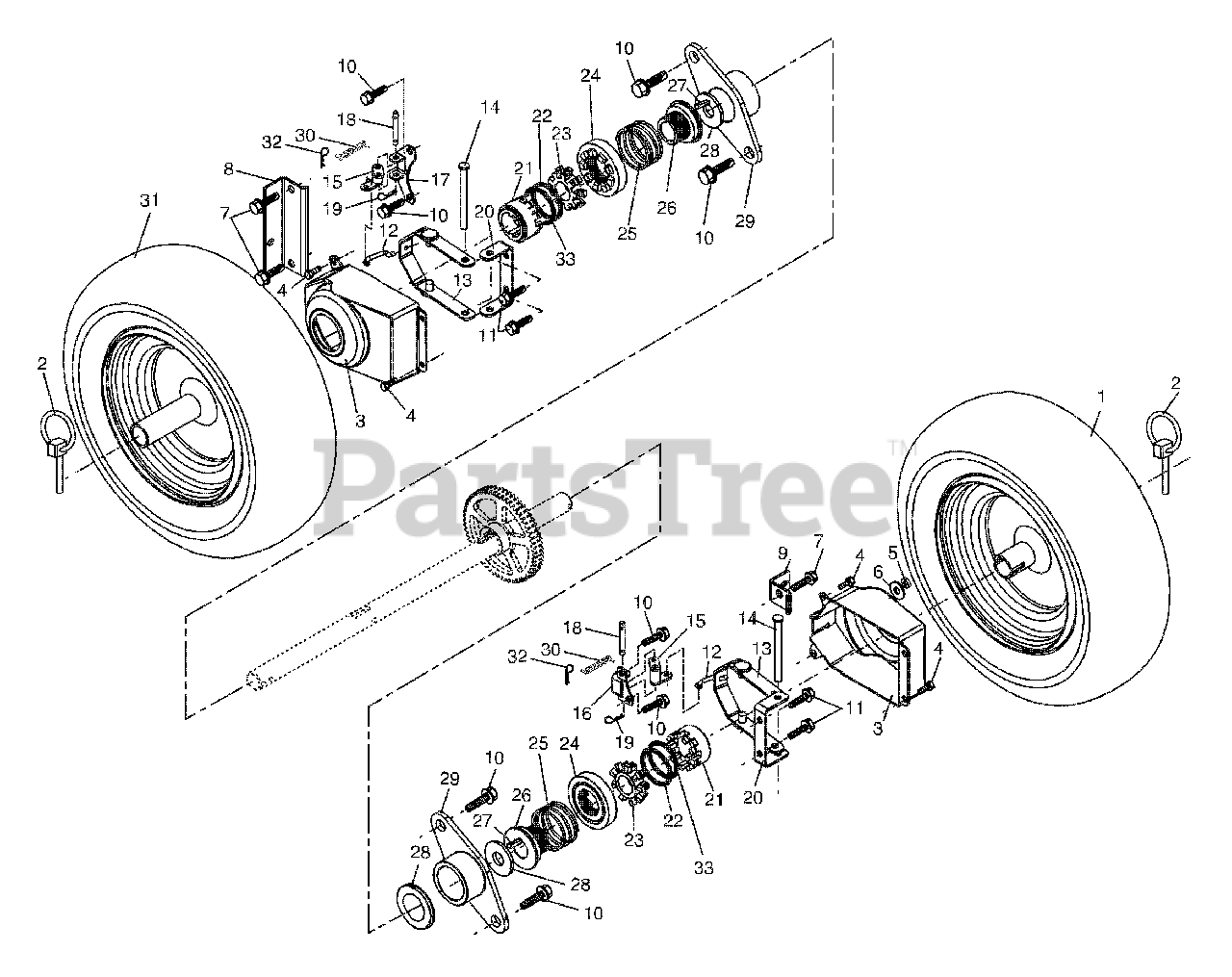

Wheels Parts Diagram

  • Title

1

Husqvarna 532187832

Wheel Assembly, 16", Power Steering, LH
(Superseded to 532198266)

$

$

Not available

2

Husqvarna 532155443

Pin, Klik 1/4

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532192109

Cover, Power Steering
(Superseded to 532405161)

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532184471

Bolt, Shoulder #10-24 x 5/8

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873800500

Nut, Lock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532155415

Washer, Flat 5/16

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 871210616

Screw, Hex Head 3/8-16 x 1

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 532187859

Bracket, Steering Cable, RH
(Superseded to 532185603)

$12.99

$

In Stock, only 1 left!

0

9

Husqvarna 532187858

Bracket, Steering Cable, LH
(Superseded to 532415263)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532146315

Screw, Hex Head 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532184393

Link, Steering Lever
(Superseded to 532405077)

$

$

Not available

13

Husqvarna 532187860

Yoke, Steering
(Superseded to 532445266)

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 532182015

Pin, Steering Lever

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532192988

Bellcrank
(Superseded to 584375101)

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532181982

Bracket Assembly, LH Steering

$

$

Not available

17

Husqvarna 532182063

Bracket Assembly, RH Steering

$

$

Not available

18

Husqvarna 532181847

Pin, Steering Bellcrank

$12.99

$

In Stock, only 1 left!

0

19

Husqvarna 532085179

Retainer, Hairpin

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532184197

Bracket, Steering

$

$

Not available

21

Husqvarna 532179141

Driver, Wheel

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532182466

Ring, Wire Retainer

$7.49

$

In Stock, Qty 7

0

23

Husqvarna 532187622

Lobe, Wheel

$37.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532187623

Slide, Clutch

$18.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532179139

Spring, Clutch Slide

$6.49

$

In Stock, Qty 9

0

26

Husqvarna 532179137

Lobe, Axle

$15.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532178879

Key, Square 1/4
(Superseded to 532189282)

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 532174697

Washer, Thrust (1")
(Superseded to 532007396)

$

$

Not available

29

Husqvarna 532179830

Bearing, Axle

$24.99

$

In Stock, only 2 left!

0

30

Husqvarna 532184453

Spring, Return
(Superseded to 532193885)

$6.49

$

In Stock, only 2 left!

0

31

Husqvarna 532187864

Wheel Assembly, 16", Power Steering, RH
(Superseded to 532198267)

$

$

Not available

32

Husqvarna 532700279

Clip, Retainer

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 812000045

Ring, Retaining

$7.49

$

In Stock, Qty 5

0
