10528 GC (31AH9574897) - Columbia 28" Snow Thrower (2011) 483-SUA Crankcase Parts Diagram

28" Snow Thrower

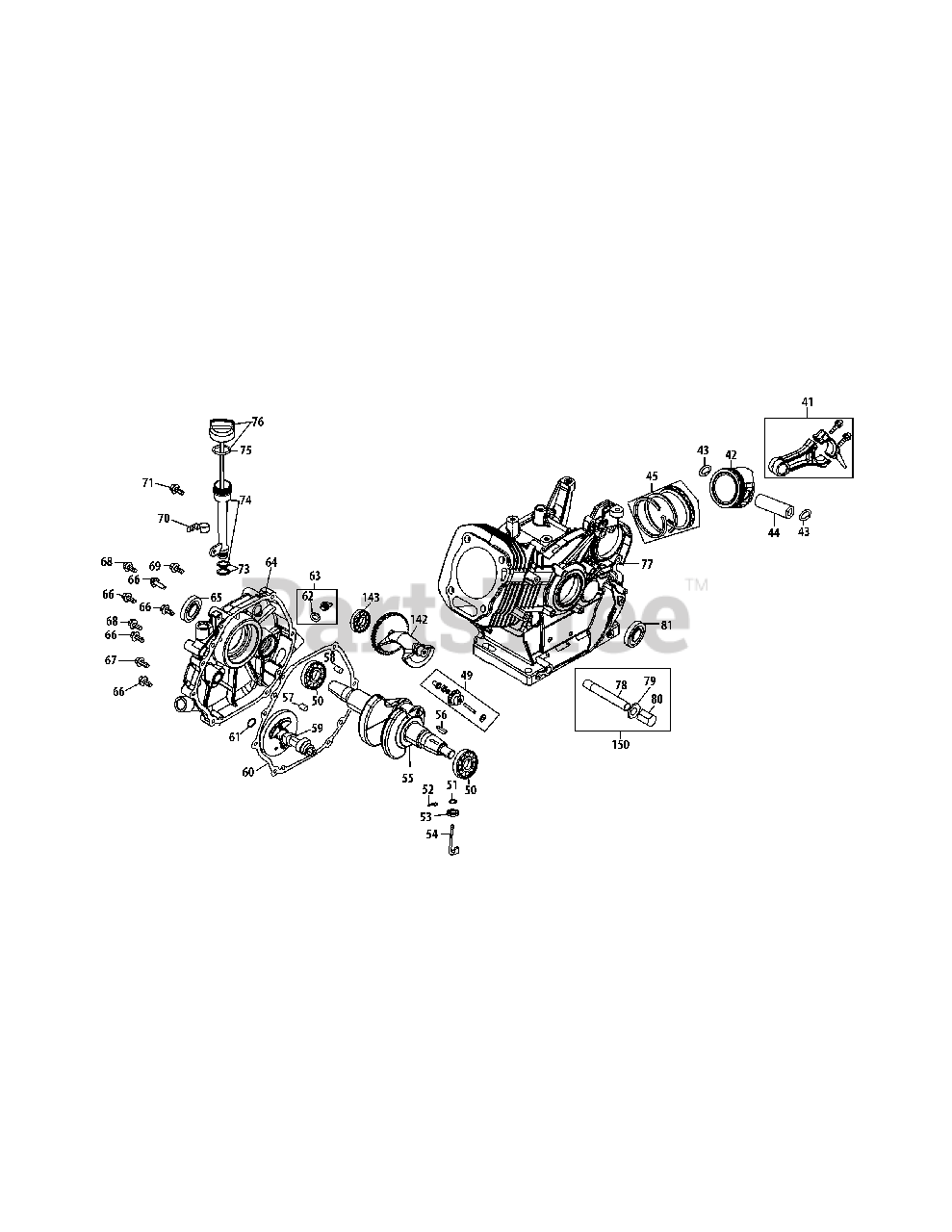

483-SUA Crankcase Parts Diagram

  • Title

41

White Outdoor 951-11951

Connecting Rod Assembly

$72.99

$

Usually ships in 3-6 days

0

42

White Outdoor 951-11952

Piston

$40.99

$

Usually ships in 3-6 days

0

43

White Outdoor 951-11953

Piston Pin Snap Ring
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 11

0

44

White Outdoor 951-11954

Piston Pin
(Superseded to 951-11954A)

$7.99

$

Usually ships in 3-6 days

0

45

White Outdoor 951-12579

Piston Ring Set

$27.99

$

Usually ships in 3-6 days

0

49

White Outdoor 951-11956

Governor Gear/Shaft Assembly

$38.99

$

Usually ships in 3-6 days

0

50

White Outdoor 951-11373

Radial Ball Bearing 6202-P6

$34.99

$

Usually ships in 3-6 days

0

51

White Outdoor 736-04453

Washer 8×20×0.8

$5.99

$

Usually ships in 3-6 days

0

52

White Outdoor 714-04077

Cotter Pin

$5.99

$

In Stock, only 1 left!

0

53

White Outdoor 951-11958

Governor Seal

$3.99

$

Usually ships in 3-6 days

0

54

White Outdoor 951-11365

Governor Arm Shaft

$5.99

$

Usually ships in 3-6 days

0

55

White Outdoor 951-11342

Crankshaft Kit

Note: (Incl.50,55,56,65,81)

$239.99

$

Usually ships in 3-6 days

0

56

White Outdoor 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 11

0

57

White Outdoor 715-04102

Dowel Pin 9×12

$5.49

$

Usually ships in 3-6 days

0

58

White Outdoor 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

59

White Outdoor 951-11959

Camshaft Assy.
(Superseded to 951-11959B)

$63.99

$

Usually ships in 3-6 days

0

60

White Outdoor 951-11376

Crankcase Cover Gasket

$16.99

$

Usually ships in 3-6 days

0

61

White Outdoor 736-04476

Washer 16×24×0.5

$5.49

$

Usually ships in 3-6 days

0

62

White Outdoor 951-11960

O-Ring 16×3

$4.49

$

In Stock, only 1 left!

0

63

White Outdoor 951-11345

Oil Filler Plug Assembly

$9.49

$

Usually ships in 3-6 days

0

64

White Outdoor 951-11340

Crankcase Cover Kit
(Superseded to 951-11340A)

Note: (Incl.50,60,61,64-68)

$69.99

$

Usually ships in 3-6 days

0

65

White Outdoor 951-11375

Oil Seal 30×46×8
(Superseded to 951-11375A)

$14.99

$

In Stock, Qty 13

0

66

White Outdoor 710-04971

Bolt M8×38
(Superseded to 710-06061)

$6.49

$

Usually ships in 3-6 days

0

67

White Outdoor 710-04972

Bolt M8×45
(Superseded to 710-06062)

$5.49

$

Usually ships in 3-6 days

0

68

White Outdoor 710-05052

Bolt M8×35
(Superseded to 710-06063)

$5.99

$

Usually ships in 3-6 days

0

69

White Outdoor 710-04968

Bolt M6×16

$6.49

$

In Stock, only 3 left!

0

70

White Outdoor 951-11320

Dipstick Clamp

$7.49

$

Usually ships in 3-6 days

0

71

White Outdoor 710-05349

Bolt M6×8

$3.99

$

Usually ships in 3-6 days

0

73

White Outdoor 951-11381

Oil Fill Tube O-Ring

$4.99

$

Usually ships in 3-6 days

0

74

White Outdoor 951-11972

Oil Fill Tube Assembly
(Superseded to 951-12073)

$10.99

$

Usually ships in 3-6 days

0

75

White Outdoor 951-11904

Dipstick O-Ring

$3.99

$

In Stock, only 1 left!

0

76

White Outdoor 951-11971A

Dipstick Assembly

$29.99

$

Usually ships in 3-6 days

0

77

White Outdoor 951-11341A

Crankcase Kit

Note: (Incl.50,53,77,81)

$368.99

$

Usually ships in 3-6 days

0

78

White Outdoor 951-11350

Oil Drain Pipe Assy.

$8.49

$

Usually ships in 3-6 days

0

79

White Outdoor 736-04440

Washer 10×16×1.5
(Superseded to 736-04440A)

$6.49

$

In Stock, Qty 6

0

80

White Outdoor 710-04906

Oil Drain Plug

$6.49

$

In Stock, Qty 6

0

81

White Outdoor 951-11499

Oil Seal 35×52×7
(Superseded to 951-11499A)

$12.99

$

In Stock, only 4 left!

0

142

White Outdoor 951-11968

Balanceable Shaft Assy.

$108.99

$

Usually ships in 3-6 days

0

143

White Outdoor 951-11969

Bearing 6207-P6

$29.99

$

Usually ships in 3-6 days

0

150

White Outdoor 951-10641

Oil Drain Assembly

$12.99

$

In Stock, only 2 left!

0

White Outdoor 951-11331

Gasket Kit - External

Note: (Incl.79,108,125,131-133), not shown

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 951-11330A

Gasket Kit - Complete

Note: (Incl.53,60,65,79,81,106,108,125,131-133), not shown

$64.99

$

Usually ships in 3-6 days

0

White Outdoor 951-11328B

Short Block Assembly

Note: (Incl.41-45,49-61,63-68,77-79,81,102,105,106,108,110,125,131,132,142,143), not shown

$837.99

$

Usually ships in 3-6 days

0

White Outdoor 952Z483-SUA

Complete Engine
(Superseded to 952Z683-WUB)

Note: Not shown

$1395.99

$

Usually ships in 3-6 days

0
