1052A (137-582-101) - Grass Handler Lawn Tractor (1987) (J.C. Penney)

Lawn Tractor

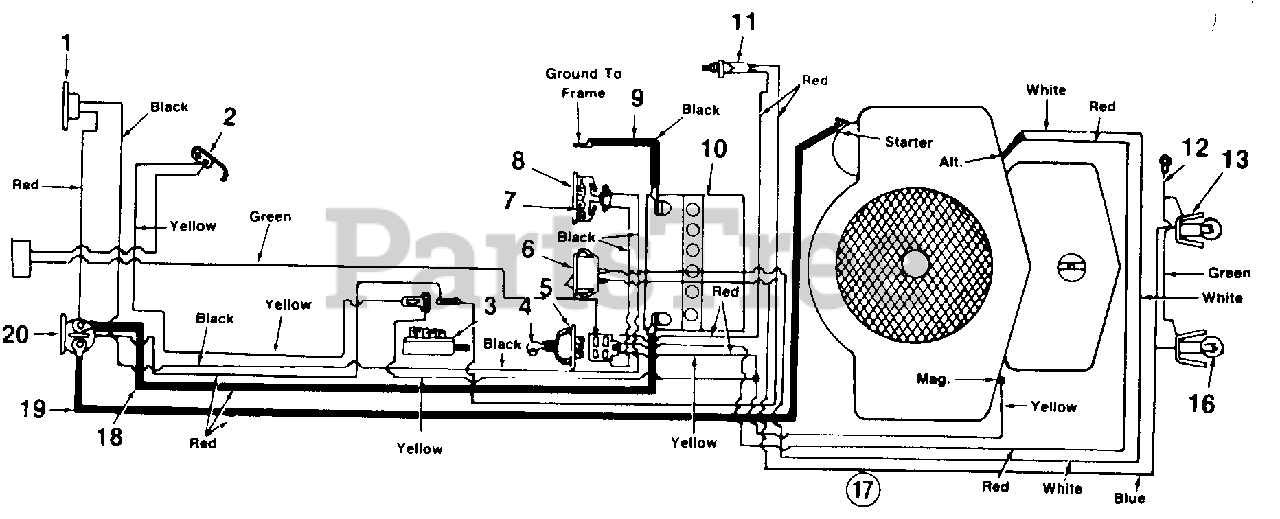

1052A (137-582-101) - Grass Handler Lawn Tractor (1987) (J.C. Penney) > Parts Diagrams (2) > Style 2), (573, 583, 553, 563, 663, 673, 683, 693

  • Title
725-0459

1

Circuit Breaker

Part# 725-0459 (Superseded to 753-0685)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.60

725-0759

2

Spring Switch

Part# 725-0759 (Superseded to 753-0579)

OEM Warranty Repair Part for MTD

Not available

725-0819

3

Safety Switch Dpst.

Part# 725-0819 (Superseded to 925-0819A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $22.71

725-0201

4

Ignition Key

Part# 725-0201 (Superseded to 925-0201)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.71

725-0267

5

Ignition Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $24.44

725-0634

6

Headlight Switch

Part# 725-0634 (Superseded to 925-0634)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.81

722-0135

7

Foam Strip

Part# 722-0135

OEM Warranty Repair Part for MTD

Not available

725-0925

8

Ammeter

Part# 725-0925 (Superseded to 925-0925)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $20.19

725-0994

9

Ground Wire 14.0" Lg.

Part# 725-0994 (Superseded to 629-0739)

OEM Warranty Repair Part for MTD

Not available

725-0453

10

12 Volt Battery

Part# 725-0453

OEM Warranty Repair Part for MTD

Not available

725-0577

11

Safety Switch

Part# 725-0577

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $11.57

725-0916

12

Ground Wire

Part# 725-0916 (Superseded to 725-0916A)

OEM Warranty Repair Part for MTD

Not available

725-1058

13

Socket

Part# 725-1058 (Superseded to 925-1058A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.58

725-0963

16

Lamp

Part# 725-0963 (Superseded to 925-0963)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.94

725-1179

17

Wire Harness

Part# 725-1179

OEM Warranty Repair Part for MTD

Currently unavailable

725-1080

18

Electric Wire 27.0" Lg.

Part# 725-1080

OEM Warranty Repair Part for MTD

Currently unavailable

725-0562

19

Electric Wire 32.5" Lg.

Part# 725-0562 (Superseded to 629-0740)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $15.53

725-0771

20

Solenoid

Part# 725-0771 (Superseded to 925-0771)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.91
