105308E (1694995) - Snapper 30" Snow Thrower, 10.5hp Wheel & Tire Group Parts Diagram

30" Snow Thrower, 10.5hp

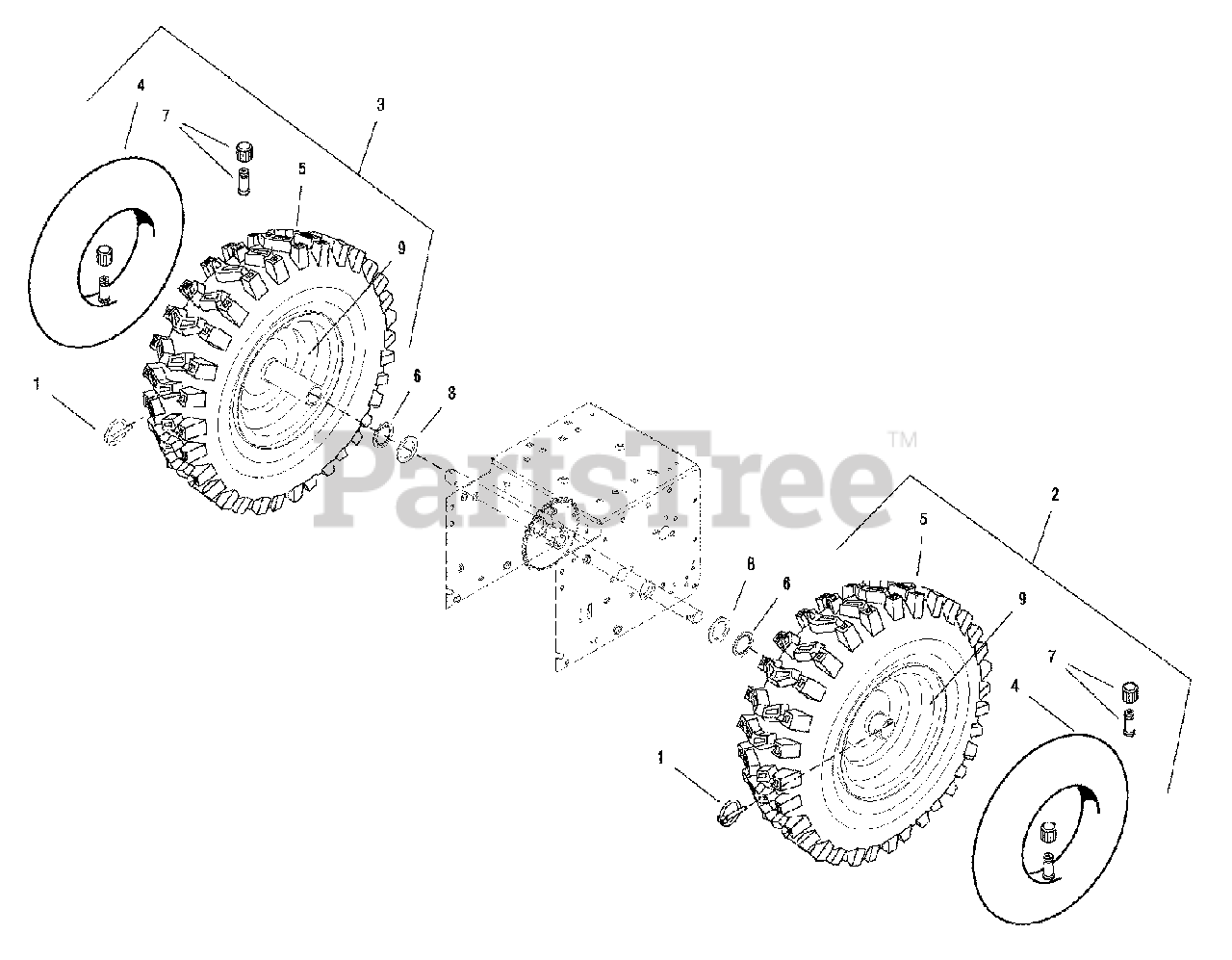

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper 1731186

PIN, Klik .313 x 1.97
(Superseded to 703160)

Note: (Used on 26" Models)

$5.49

$

In Stock, Qty 7

0

1

Snapper 1679697

PIN, Klik 1/4 x 1-3/4
(Superseded to 1679697SM)

Note: (Used on 28", 30" & 32" Models)

$9.49

$

In Stock, only 2 left!

0

2

Snapper 1732935

WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H.
(Superseded to 1732935SM)

Note: (Used on 26" Models)

$142.99

$

Usually ships in 2-12 days

0

2

Snapper 1723169

WHEEL & TIRE ASSEMBLY, 15 x 5 L.H.
(Superseded to 1723169SM)

Note: (Used on 28" Models)

$136.99

$

Usually ships in 2-12 days

0

2

Snapper 1714235

WHEEL & TIRE ASSEMBLY, 16 x 4.8 L.H.
(Superseded to 1714235SM)

Note: (Used on 30" & 32" Models)

$

$

Not available

3

Snapper 1732935

WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H.
(Superseded to 1732935SM)

Note: (Used on 26" Models)

$142.99

$

Usually ships in 2-12 days

0

3

Snapper 1733089

WHEEL & TIRE ASSEMBLY, 15 x 5 R.H.
(Superseded to 1733089SM)

Note: (Used on 28" Models)

$136.99

$

Usually ships in 2-12 days

0

3

Snapper 1720306

WHEEL & TIRE ASSEMBLY, 16 x 4.8 R.H.
(Superseded to 1720306SM)

Note: (Used on 30" & 32" Models)

$179.99

$

In Stock, only 1 left!

0

4

Snapper 1664090

TUBE, Tire 4.10/3.50-6 L.H.
(Superseded to 1664090SM)

Note: (Used on 28" Models)

$26.99

$

In Stock, only 3 left!

0

4

Snapper 2153038

TUBE, Tire 4.80/4.00 L.H. & R.H.
(Superseded to 2153038SM)

Note: (Used on 30" & 32" Models)

$35.99

$

In Stock, only 2 left!

0

5

Snapper 1723287

TIRE, 15 x 5.00-6, 2 PLY, KENDA L.H.
(Superseded to 1723287SM)

Note: (Used on 26" & 28" Models)

$82.99

$

Usually ships in 2-12 days

0

5

Snapper 1612000

TIRE, 4.80/4.00-8 L.H. & R.H.
(Superseded to 1612000SM)

Note: (Used on 30" & 32" Models)

$

$

Not available

6

Snapper 1657528

RETAINING RING, Extension, #75 3/4 Self Lock
(Superseded to 1657528SM)

Note: (Used on 26" Models)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

Note: (Used on All Models)

$6.49

$

In Stock, only 2 left!

0

8

Snapper 725394

WASHER, Flat
(Superseded to 712120MA)

Note: (Used on 26" Models)

$4.99

$

In Stock, only 2 left!

0

9

Snapper 1723286

HUB, Wheel L.H.
(Superseded to 1723286SM)

Note: (Used on 28" Models)

$66.99

$

Usually ships in 2-12 days

0

9

Snapper 1714242

HUB, Wheel 3.756 Wide 8. L.H.
(Superseded to 1714242SM)

Note: (Used on 30" & 32" Models)

$108.99

$

In Stock, only 1 left!

0

9

Snapper 1720307

HUB, Wheel 3.75 Wide 8. R.H.
(Superseded to 1720307SM)

Note: (Used on 30" & 32" Models)

$60.99

$

Usually ships in 2-12 days

0
