10533 - Lawn-Boy Medallion Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

Medallion Walk-Behind Mower

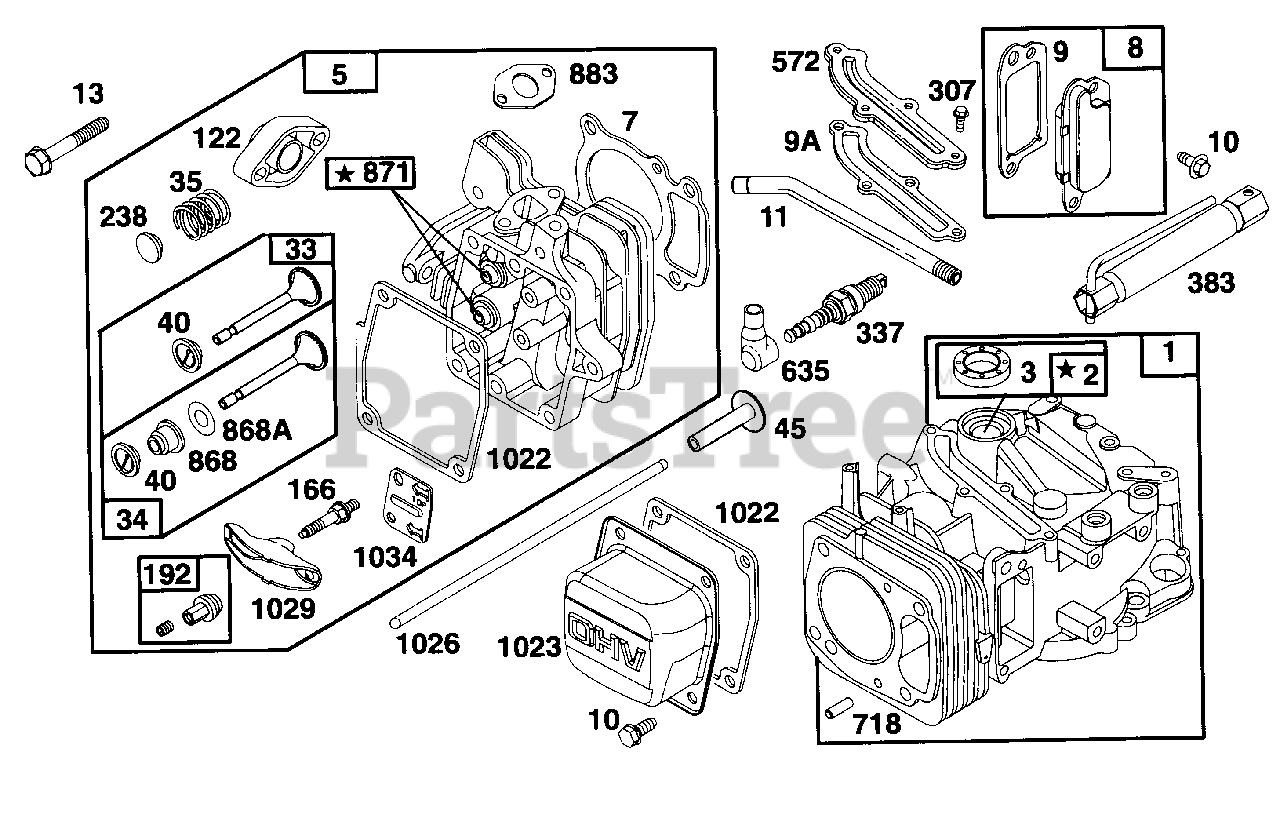

ENGINE BRIGGS & STRATTON MODEL 99772-0938-A1 Parts Diagram

  • Title

1

Lawn-Boy 494728

Cylinder Assy.

$

$

Currently unavailable

2

Lawn-Boy 293708

Bushing

$

$

Currently unavailable

3

Lawn-Boy 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

5

Lawn-Boy 496054

Head-Cylinder

$

$

Currently unavailable

7

Lawn-Boy 272314

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Klt-Part No. 496956.

$

$

Currently unavailable

8

Lawn-Boy 495786

Breather Assy.

$

$

Currently unavailable

9

Lawn-Boy 272481

Gasket-Breather

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

9A

Lawn-Boy 272238

Gasket-Breather

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

10

Lawn-Boy 94650

Screw-Hex. Head

$

$

Currently unavailable

11

Lawn-Boy 231933

Tube-Breather

$

$

Currently unavailable

13

Lawn-Boy 94547

Screw-Cylinder Head

$

$

Currently unavailable

33

Lawn-Boy 493778

Valve-Exhaust

$

$

Currently unavailable

34

Lawn-Boy 493777

Valve-Intake

$

$

Currently unavailable

35

Lawn-Boy 262716

Spring-Valve

$

$

Currently unavailable

40

Lawn-Boy 262552

Retainer-Spring

$

$

Currently unavailable

45

Lawn-Boy 262679

Tappet-Valve

$

$

Currently unavailable

122

Lawn-Boy 281193

Adapter Assy.

$

$

Currently unavailable

166

Lawn-Boy 94555

Stud-Rocker Arm

$

$

Currently unavailable

192

Lawn-Boy 492160

Ball & Screw-Rocker Arm

$

$

Currently unavailable

238

Lawn-Boy 262499

Cap-Valve

$

$

Currently unavailable

307

Lawn-Boy 94515

Screw-Breather Cover Mtg.

$

$

Currently unavailable

337

Lawn-Boy 491055

Plug-Spark

$

$

Currently unavailable

383

Lawn-Boy 19374

Wrench-Spark Plug

$

$

Currently unavailable

572

Lawn-Boy 224328

Cover-Breather

$

$

Currently unavailable

635

Lawn-Boy 66538

Elbow-Spark Plug

$

$

Currently unavailable

718

Lawn-Boy 230192

Pin-Cylinder

$

$

Not available

868

Lawn-Boy 493661

Seal Assy.-Valve

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Klt-Part No. 496956.

$

$

Currently unavailable

868A

Lawn-Boy 272376

Gasket-Valve

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Klt-Part No. 496956.

$

$

Currently unavailable

871

Lawn-Boy 262718

Bushing-Guide

$

$

Currently unavailable

883

Lawn-Boy 272313

Gasket-Exhaust

Note: Included in Gasket Set-Part No. 496055.

$

$

Currently unavailable

1022

Lawn-Boy 272323

Gasket-Rocker Cover

Note: Included in Gasket Set-Part No. 496055. Included in Valve Overhaul Klt-Part No. 496956.

$

$

Currently unavailable

1023

Lawn-Boy 224588

Cover-Rocker

$

$

Currently unavailable

1026

Lawn-Boy 493527

Rod-Push

$

$

Currently unavailable

1029

Lawn-Boy 224111

Arm-Rocker

$

$

Currently unavailable

1034

Lawn-Boy 224400

Guide-Push Rod

$

$

Currently unavailable
