1054 A - Toro Lawn Tractor (1965)

Lawn Tractor

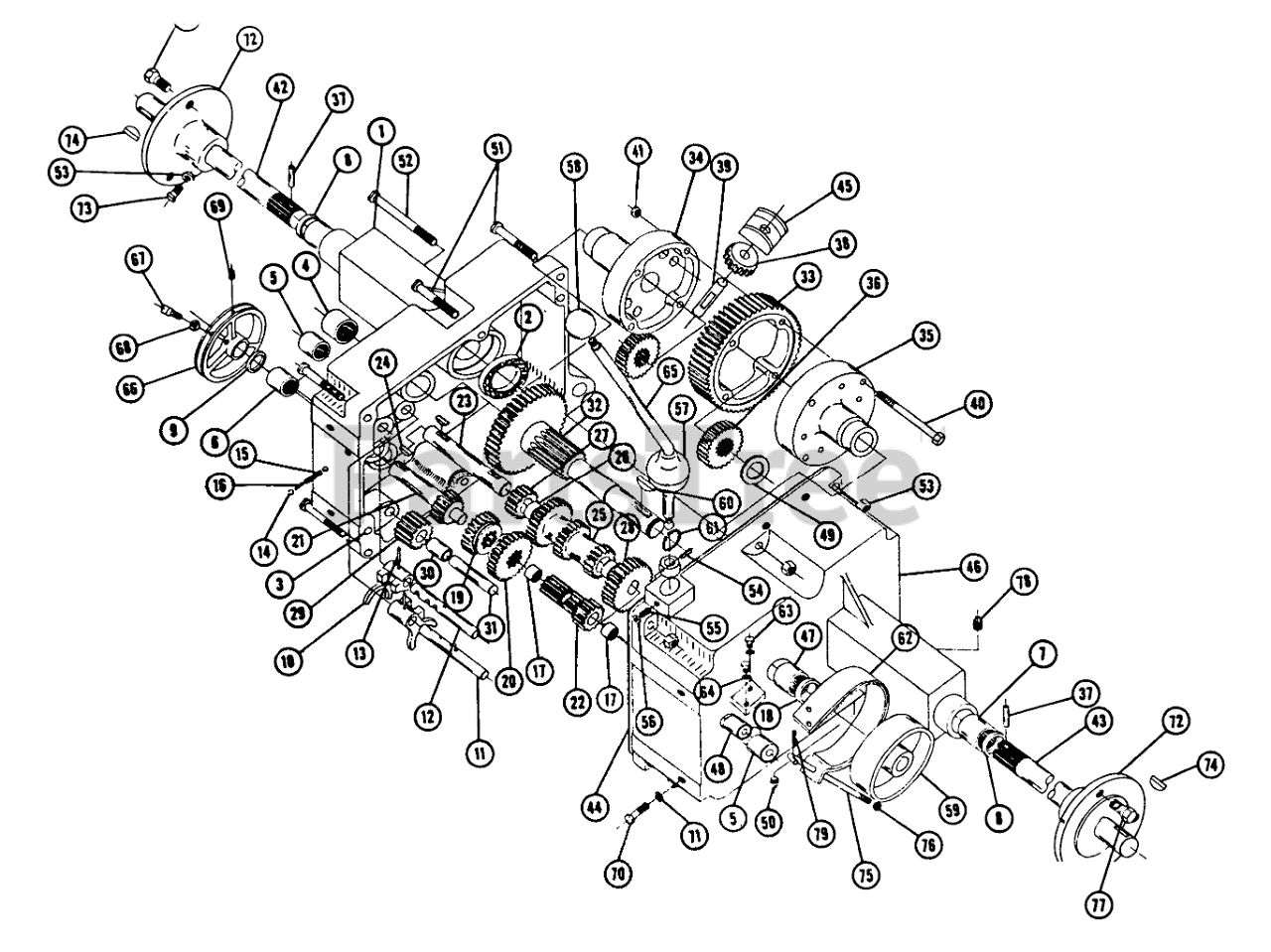

1054 A - Toro Lawn Tractor (1965) > Parts Diagrams (2) > 5047 TRANSMISSION PARTS LIST (1054-A TRACTOR)

  • Title
4160

1

Case-Transmission R.H.

Part# 4160

OEM Warranty Repair Part for Toro

Not available

1533

2

BALL BRG 1 1/2 I.D.

Part# 1533

OEM Warranty Repair Part for Toro

Not available

3915

3

PIN-DOWEL

Part# 3915

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.87

1532

4

BEARING-NEEDLE

Part# 1532

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.56

1529

5

BEARING-NEEDLE

Part# 1529

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.27

1508

6

NEEDLE BEARING

Part# 1508 (Superseded to 252-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.55

1526

7

Bearing-Axle

Part# 1526

OEM Warranty Repair Part for Toro

Not available

1213

8

Seal

Part# 1213 (Superseded to 100443)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.03

1303

9

Seal

Part# 1303 (Superseded to 100441)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.67

3503

10

FORK-SHIFT

Part# 3503

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $88.24

5615

11

RAIL-SHIFT

Part# 5615

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $75.31

5616

12

RAIL-REAR SHIFT

Part# 5616

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $53.19

933156

13

PIN-ROLL

Part# 933156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

3517

14

BALL-DETENT

Part# 3517

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

3518

15

Spring

Part# 3518 (Superseded to 106030)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.74

5614

16

PIN-SHIFT

Part# 5614

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.29

1518

17

BEARING-NEEDLE

Part# 1518

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.07

1232

18

Seal

Part# 1232 (Superseded to 100863)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.88

5173

19

GEAR-HI AND 2ND

Part# 5173

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $94.81

5174

20

GEAR-LOW AND REVERSE

Part# 5174

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $124.69

5176

21

Gear-Input

Part# 5176

OEM Warranty Repair Part for Toro

Not available

5175

22

GEAR

Part# 5175

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $184.87

3910

23

Cluster Shaft

Part# 3910

OEM Warranty Repair Part for Toro

Not available

937014

24

Key

Part# 937014 (Superseded to 3257-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.90

3525

25

Cluster Gear

Part# 3525 (Superseded to 7269)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $673.92

1504

26

BUSHING-BRONZE

Part# 1504

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.69

3528

27

GEAR-PINION

Part# 3528

OEM Warranty Repair Part for Toro

Not available

3527

28

GEAR-CLUSTER SHAFT

Part# 3527

OEM Warranty Repair Part for Toro

Not available

4204

29

GEAR/BUSHING ASM-REVERSE IDLER

Part# 4204

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $104.55

1516

30

BUSHING

Part# 1516

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.77

3909

31

PIN-DIFFERENTIAL

Part# 3909

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.09

4166

32

Gear-Brake Shaft

Part# 4166

OEM Warranty Repair Part for Toro

Not available

2821

33

GEAR DIFF BULL

Part# 2821

OEM Warranty Repair Part for Toro

Not available

2822

34

DIFF CASE RH

Part# 2822

OEM Warranty Repair Part for Toro

Not available

2823

35

Case-Differential L.H.

Part# 2823 (Superseded to 6446)

OEM Warranty Repair Part for Toro

Not available

2820

36

Gear-Axle

Part# 2820

OEM Warranty Repair Part for Toro

Not available

933217

37

SPIROL ROLL PIN

Part# 933217

OEM Warranty Repair Part for Toro

Not available

2819

38

GEAR DIFF PINION

Part# 2819

OEM Warranty Repair Part for Toro

Not available

2827

39

SHAFT DIFFERENTIAL

Part# 2827

OEM Warranty Repair Part for Toro

Not available

9080444

40

Bolt-Hex 3/8-16 x 4

Part# 9080444

OEM Warranty Repair Part for Toro

Currently unavailable

1022

41

Nut-Hex Lock 3/8-16

Part# 1022

OEM Warranty Repair Part for Toro

Not available

2824

42

Clevis

Part# 2824

OEM Warranty Repair Part for Toro

Not available

2825

43

Axle-Rear L.H.

Part# 2825

OEM Warranty Repair Part for Toro

Not available

3912

44

GASKET-TRANSMISSION

Part# 3912

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.94

2826

45

BLOCK

Part# 2826

OEM Warranty Repair Part for Toro

Not available

4161

46

Case-Transmission L.H.

Part# 4161

OEM Warranty Repair Part for Toro

Not available

1530

47

Bearing-Needle

Part# 1530 (Superseded to 704019)

OEM Warranty Repair Part for Toro

Not available

1531

48

Bearing Needle

Part# 1531

OEM Warranty Repair Part for Toro

Not available

2828

49

WASHER THRUST

Part# 2828

OEM Warranty Repair Part for Toro

Not available

943420-4

50

Plug 3/8 Pipe

Part# 943420-4

OEM Warranty Repair Part for Toro

Currently unavailable

908038-4

51

Bolt, 3/8 16 x 2

Part# 908038-4

OEM Warranty Repair Part for Toro

Currently unavailable

9080434

52

Bolt-Hex 3/8-16 x 3 1/2

Part# 9080434

OEM Warranty Repair Part for Toro

Currently unavailable

915113-6

53

Nut

Part# 915113-6

OEM Warranty Repair Part for Toro

Currently unavailable

933168

54

Roll Pin

Part# 933168 (Superseded to 32121-114)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.24

1239

55

SETSCREW

Part# 1239

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.85

915111-6

56

Nut-Nylok

Part# 915111-6

OEM Warranty Repair Part for Toro

Currently unavailable

3577

57

COVER-DUST

Part# 3577

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.35

2709

58

Knob

Part# 2709 (Superseded to 102891)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $41.89

3902

59

Brake Drum

Part# 3902

OEM Warranty Repair Part for Toro

Not available

937022

60

WOODRUFF KEY

Part# 937022

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.01

963131

61

Snap Ring 1- Shaft

Part# 963131

OEM Warranty Repair Part for Toro

Currently unavailable

4437

62

Band-Brake

Part# 4437 (Superseded to 7376)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $102.73

908002-4

63

Bolt-1/4-20 x 5/8

Part# 908002-4

OEM Warranty Repair Part for Toro

Currently unavailable

920081-4

64

Lockwasher

Part# 920081-4

OEM Warranty Repair Part for Toro

Currently unavailable

4483

65

Ass-y. Shift Stick

Part# 4483

OEM Warranty Repair Part for Toro

Currently unavailable

2707

66

Pulley

Part# 2707

OEM Warranty Repair Part for Toro

Not available

909543-4

67

Set Screw Sq. Hd. 5/16-18 x

Part# 909543-4

OEM Warranty Repair Part for Toro

Currently unavailable

915235-4

68

Nut 5/16-18 Jam

Part# 915235-4

OEM Warranty Repair Part for Toro

Currently unavailable

909862-6

69

Set Screw 5/16-18 x 5/16

Part# 909862-6

OEM Warranty Repair Part for Toro

Currently unavailable

908034-4

70

Bolt 3/8-16 x 1

Part# 908034-4

OEM Warranty Repair Part for Toro

Currently unavailable

920083-4

71

Lockwasher

Part# 920083-4

OEM Warranty Repair Part for Toro

Currently unavailable

1488

72

Hub Rear Wheel

Part# 1488

OEM Warranty Repair Part for Toro

Not available

909555-4

73

Set Screw, 3/8-16 x 1-1/4

Part# 909555-4

OEM Warranty Repair Part for Toro

Currently unavailable

937046

74

WOODRUFF KEY

Part# 937046

OEM Warranty Repair Part for Toro

Not available

3935

75

Rod

Part# 3935

OEM Warranty Repair Part for Toro

Currently unavailable

915605-4

76

Nut 3/-16 Elastic Stop

Part# 915605-4

OEM Warranty Repair Part for Toro

Currently unavailable

1487

77

LUG BOLT WHEEL 7/162

Part# 1487

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.61

943460-4

78

Plug 1/4 Pipe

Part# 943460-4

OEM Warranty Repair Part for Toro

Currently unavailable

933503

79

USE 933503P PIN

Part# 933503

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.79
