1054 - Toro Lawn Tractor (1964) 1054 Hydraulic Unit Parts List Parts Diagram

Lawn Tractor

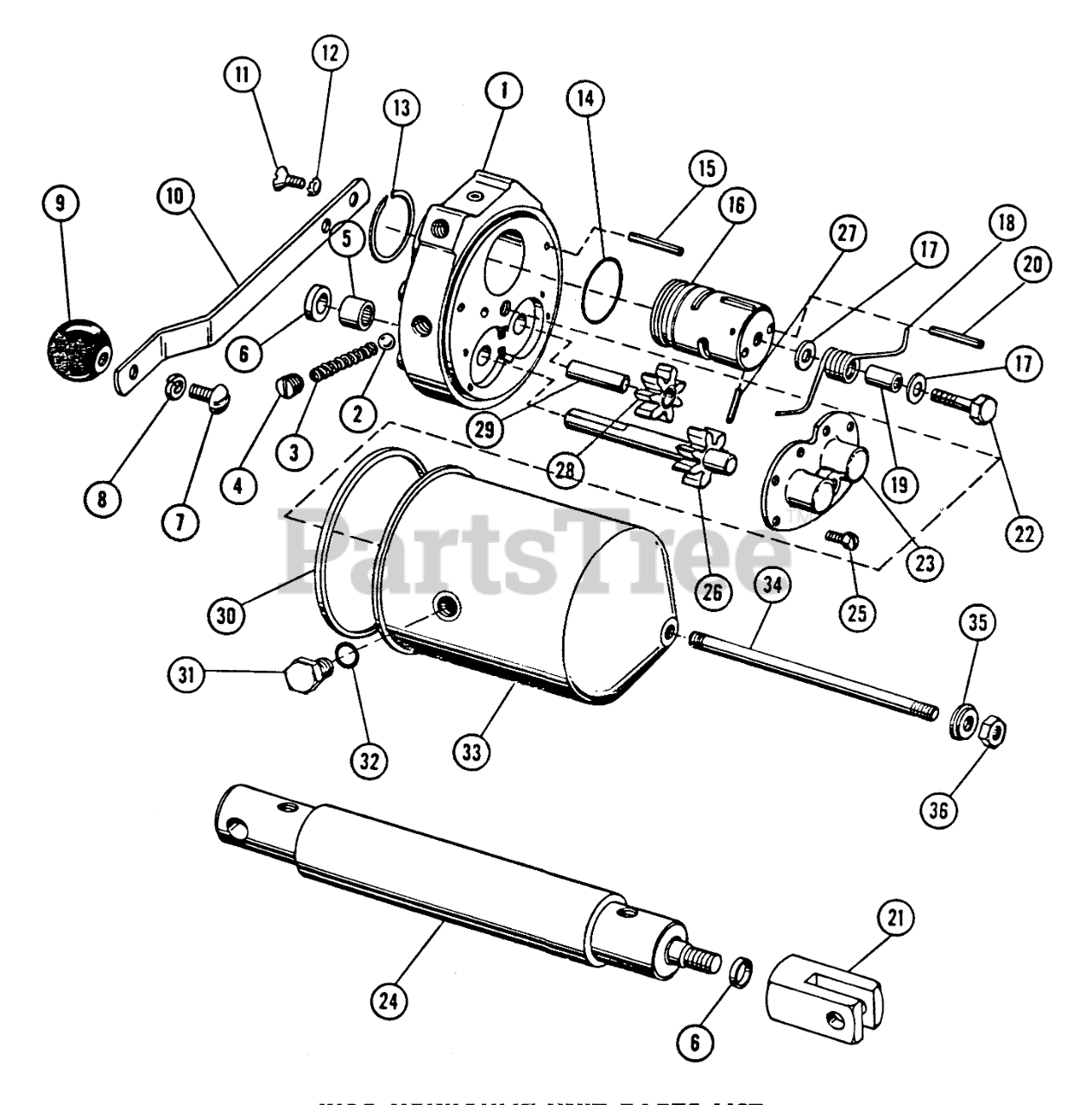

1054 Hydraulic Unit Parts List Parts Diagram

  • Title

1

Toro 5258

Body

$

$

Currently unavailable

2

Toro 4831

Ball

$

$

Currently unavailable

3

Toro 4832

Spring

$

$

Currently unavailable

4

Toro 4833

Plug

$

$

Currently unavailable

5

Toro 5259

DISCONTINUED

$

$

Not available

6

Toro 1447

See Supercession: 5959
(Superseded to 5959)

$

$

Not available

7

Toro 909084-4

Screw 1/8-16 x 3/4

$

$

Currently unavailable

8

Toro 920083-4

Lockwasher

$

$

Currently unavailable

9

Toro 1001

DUP PART SEE $BOOK

$

$

Not available

10

Toro 4153

Handle

$

$

Currently unavailable

11

Toro 908817-4

Screw 1/4-20 x 3/8

$

$

Currently unavailable

12

Toro 920081-4

Lockwasher

$

$

Currently unavailable

13

Toro 1449

Snap Ring

$

$

Currently unavailable

14

Toro 1455

O Ring

$

$

Currently unavailable

15

Toro 933192

ROLL PIN

$

$

Not available

16

Toro 5260

Spool Valve

$

$

Currently unavailable

17

Toro 920008-4

Washer

$

$

Currently unavailable

18

Toro 5261

DISCONTINUED

$

$

Not available

19

Toro 5262

Spring Sleeve

$

$

Currently unavailable

20

Toro 933173

Roll Pin 5/32 x 1/4

$

$

Currently unavailable

21

Toro 4156

Clevis

$

$

Currently unavailable

22

Toro 5263

Bolt-Hex 5/16-18 x 1/8 Nylok

$

$

Currently unavailable

23

Toro 4838

Cover

$

$

Currently unavailable

24

Toro 5249

Cylinder Ass-y

$

$

Currently unavailable

25

Toro 5264

Screw-Fill. Hd. 10-32 x 7/16 Sems

$

$

Currently unavailable

26

Toro 4341

Drive Shaft Ass-y

$

$

Currently unavailable

27

Toro 933169

Roll Pin 5/12 x 7/8
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

28

Toro 5265

Gear Bearing Ass-y

$

$

Currently unavailable

29

Toro 5266

Idler Shaft

$

$

Currently unavailable

30

Toro 4842

Gasket

$

$

Currently unavailable

31

Toro 908203-4

Bolt-Hex 1/2-20 x 1/2

$

$

Currently unavailable

32

Toro 4188

DISCONTINUED

$

$

Not available

33

Toro 4157

Reservoir

$

$

Currently unavailable

34

Toro 4187

Stud

$

$

Currently unavailable

35

Toro 1453

DISCONTINUED

$

$

Not available

36

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable
