10545 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) MULCH PLATE & WHEEL ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

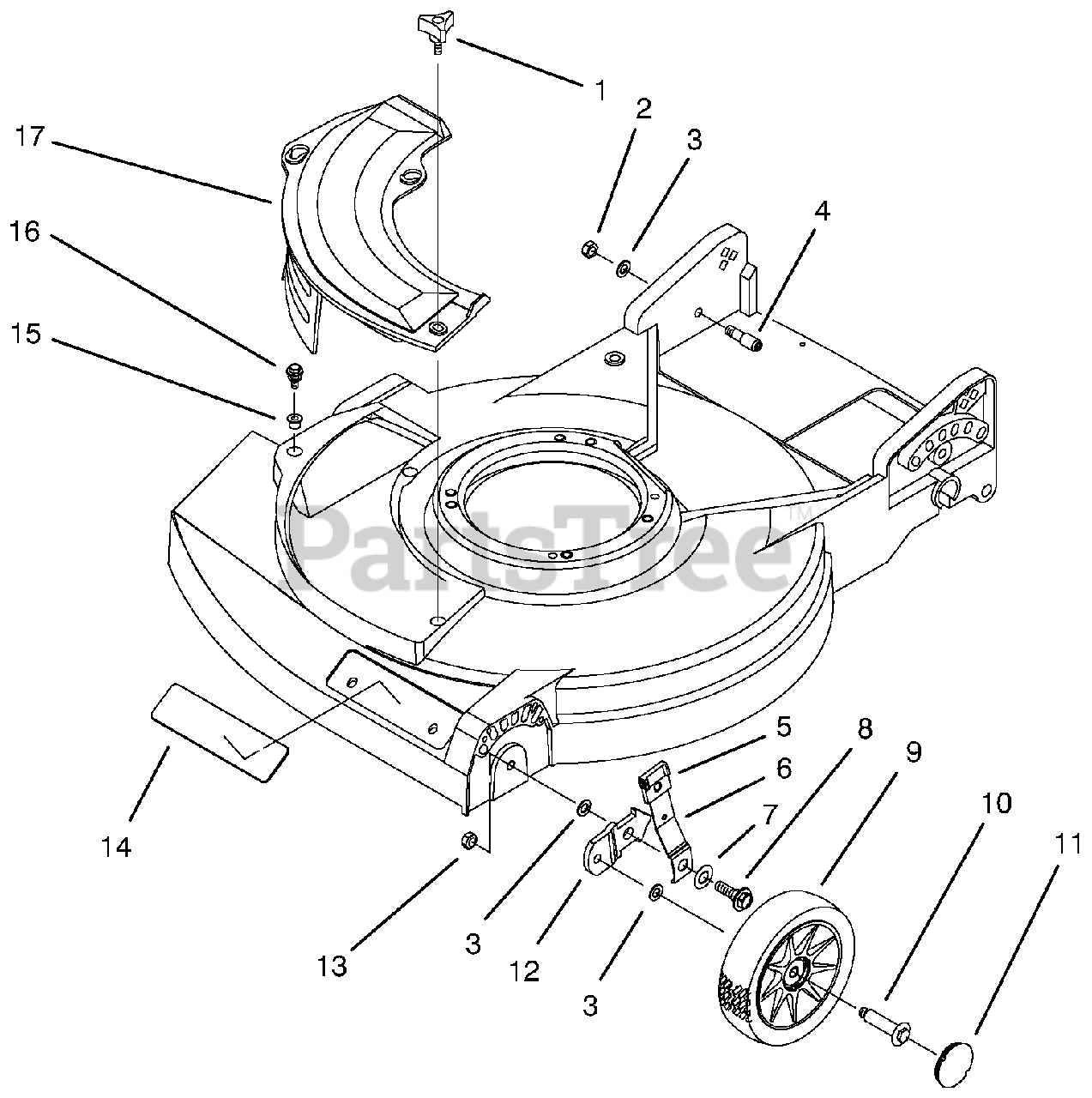

MULCH PLATE & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614682

Knob-Cover Plate
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

2

Lawn-Boy 610358

Nut-Lock

$2.49

$

In Stock, Qty 12

0

3

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 92-9673

Bolt-Shoulder

$7.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 92-1008

Knob-Height Adjust

$12.99

$

In Stock, only 3 left!

0

6

Lawn-Boy 92-1006

Spring Arm Ass'y-Front

$11.99

$

In Stock, Qty 7

0

7

Lawn-Boy 3290-413

Washer-Belleville

$4.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 92-4856

Bolt-Shoulder

$5.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 684776

Wheel & Tire Assembly 6"

$33.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, Qty 10

0

11

Lawn-Boy 92-1604

Cap-Hub

$2.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 614637

Bracket-Wheel Height Adj.
(Superseded to 95-7403-03)

$

$

Not available

13

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 614701

Housing-Applique

$

$

Not available

15

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 614677

Screw-Sems Thr'd Form.

$3.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available
