10545 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ELECTRIC MOTOR ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

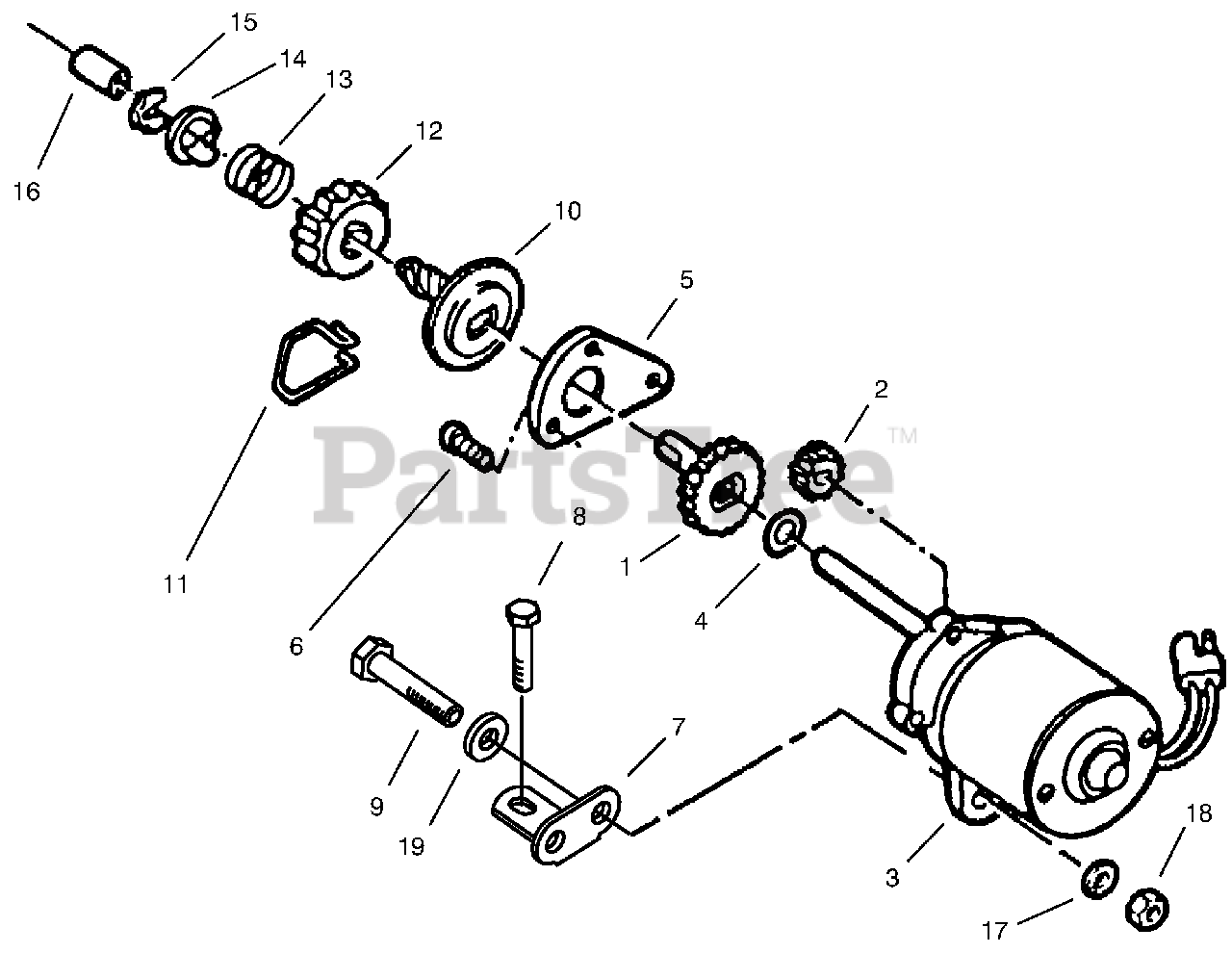

ELECTRIC MOTOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 611386

Gear-Driven

$50.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 611385

Pinion-Motor shaft

$

$

Not available

3

Lawn-Boy 682807

Motor Housing & Pin Ass'y
(Superseded to 682806)

$791.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 609568

Washer
(Superseded to 252-98)

$

$

Not available

5

Lawn-Boy 613517

Plate-Gear Cover

$

$

Not available

6

Lawn-Boy 609130

Screw

$2.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 612661

Bracket-Starter Mounting

$

$

Not available

8

Lawn-Boy 609471

Screw

$4.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 613075

Screw

$

$

Not available

10

Lawn-Boy 682809

Pinion-Spring & Clutch Ass'y (Incl. Ref. #11-15)

$

$

Not available

11

Lawn-Boy 609229

Spring-Drag

$4.49

$

In Stock, Qty 6

0

12

Lawn-Boy 610258

Pinion

$27.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 610257

Spring-Pinion Return

$5.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 613451

Washer-Pinion Stop

$

$

Not available

15

Lawn-Boy 608622

Ring-Retaining

$2.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 609572

Sleeve

$35.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 306992

Washer-Lock

$

$

Not available

18

Lawn-Boy 328712

Nut
(Superseded to 3217-26)

$1.99

$

In Stock, Qty 5

0

19

Lawn-Boy 306407

Washer
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

Lawn-Boy 682806

Electric Starter Assembly (Incl. Ref. #1-6)

Note: Not Illustrated

$791.99

$

Usually ships in 3-6 days

0
