10546 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) LOWER HANDLE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

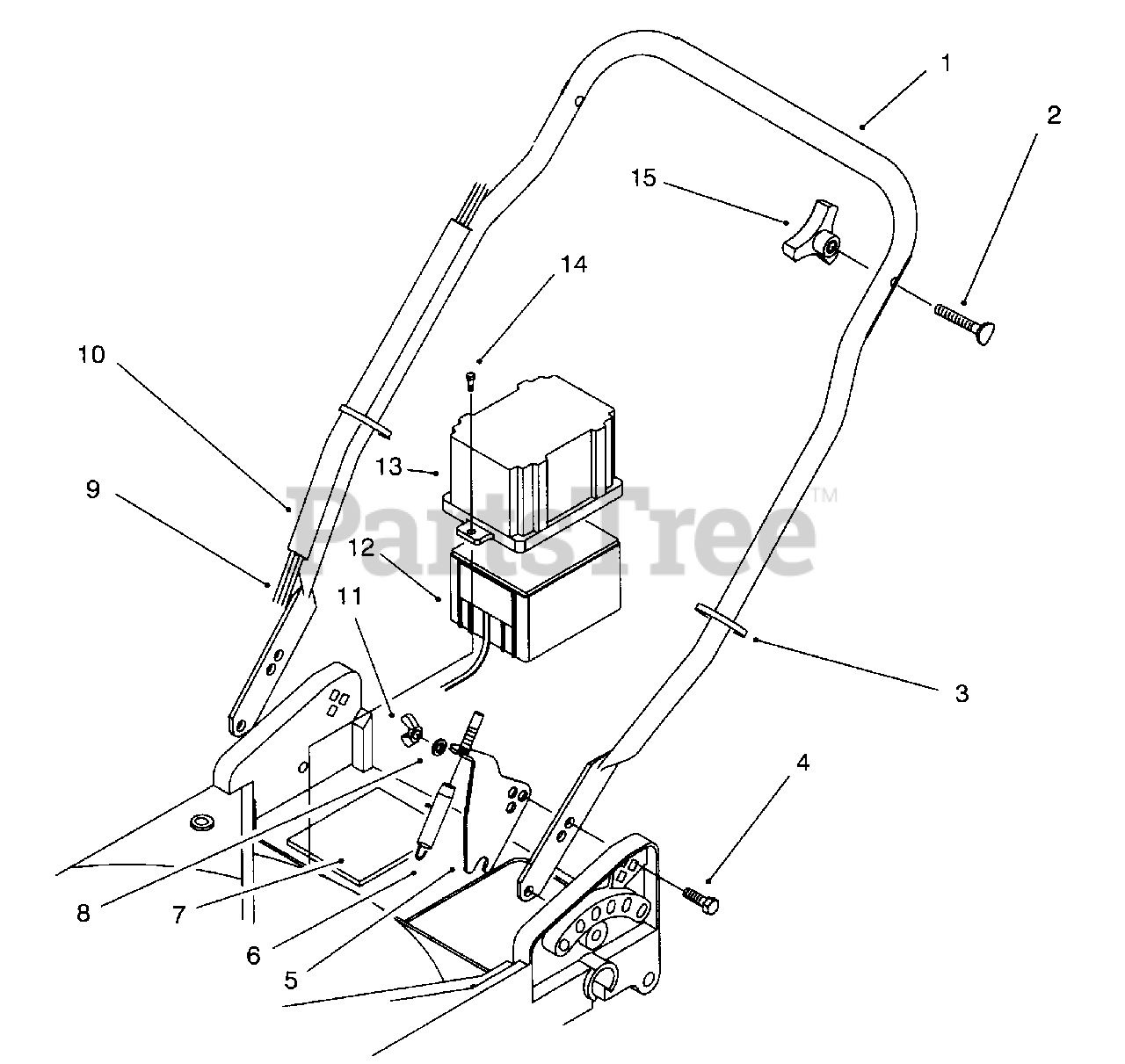

LOWER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-6537

Handle-Lower
(Superseded to 92-6537-05)

$

$

Not available

2

Lawn-Boy 614697

Screw-Handle

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 614249

Tie-Strap

$1.49

$

In Stock, Qty 10

0

4

Lawn-Boy 3230-29

Bolt-Carriage

$2.99

$

In Stock, Qty 7

0

5

Lawn-Boy 92-7899

Bracket-Traction Cable
(Superseded to 92-7899-03)

$12.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 92-6518

Cable-Traction

$47.99

$

In Stock, only 3 left!

0

7

Lawn-Boy 612510

Pad-Battery

$8.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 3253-33

Washer-Lock

$1.99

$

In Stock, Qty 11

0

9

Lawn-Boy 94-6059

Wire Assembly

$74.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 92-8917

Cover-Controls

$

$

Not available

11

Lawn-Boy 32103-29

Nut-Wing

$6.49

$

In Stock, Qty 14

0

12

Lawn-Boy 55-7520

Pack-Battery

$176.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 612690

Case-Battery
(Superseded to 95-3017)

$37.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 12-5450

Screw-Hex Washer Hd. Thread Forming

$10.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

Lawn-Boy 92-1743

Charger-Battery
(Superseded to 131-0848)

Note: Not Illustrated

$74.99

$

Usually ships in 3-6 days

0
