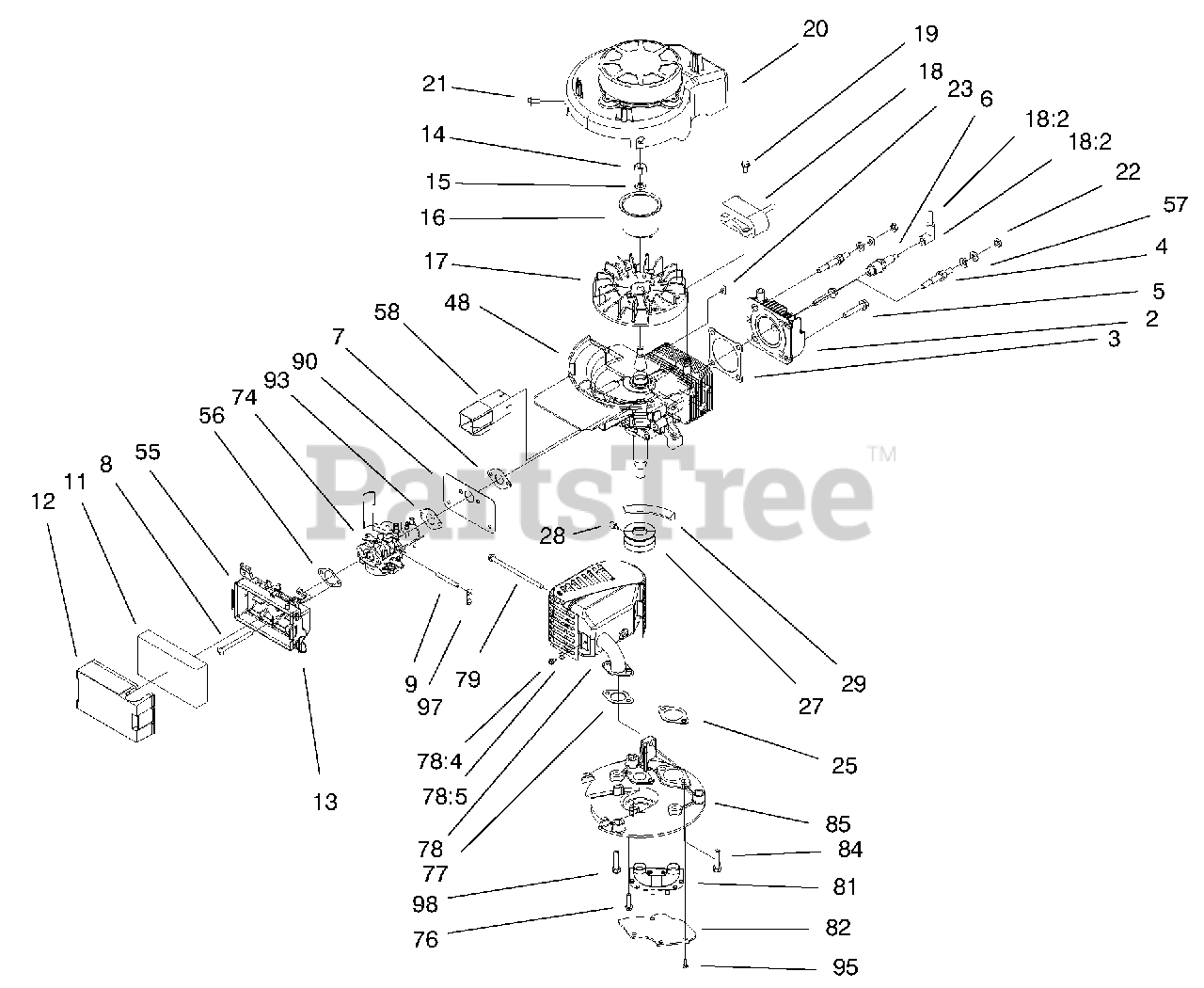

10547 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) ENGINE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Lawn-Boy 94-5776

Head

$60.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 94-5778

Gasket-Head

$10.99

$

In Stock, Qty 7

0

4

Lawn-Boy 94-5779

Stud

$9.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 94-5780

Bolt

$8.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 50-1170

Spark Plug

$3.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-5795

Intake Gasket

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 612507

Screw

$4.99

$

In Stock, Qty 7

0

9

Lawn-Boy 95-1861

Primer Hose

$11.99

$

In Stock, Qty 9

0

11

Lawn-Boy 95-5574

Element-Air Filter
(Superseded to 107-4622)

$7.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 95-5577

Cover-Air Filter

$15.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 610383

Retainer-Filter

$7.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 130743

Nut

$2.99

$

In Stock, Qty 7

0

15

Lawn-Boy 316959

Washer-Lock
(Superseded to 325-36)

$8.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 95-1786

Cup-Starter

$16.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-1882

Flywheel Machined Recoil

$

$

Not available

18

Lawn-Boy 92-1152

Ignition ASM
(Superseded to 99-2916)

$78.99

$

In Stock, Qty 9

0

18:2

Lawn-Boy 681678

High Tension Lead & Cover

$23.99

$

Usually ships in 3-6 days

0

18:2

Lawn-Boy 684698

Cover & Terminal

$6.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 613208

Screw-HWH

$1.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 95-1880

Shroud & Recoil ASM

$

$

Not available

21

Lawn-Boy 700094

Screw
(Superseded to 112-0167)

$6.49

$

In Stock, Qty 6

0

22

Lawn-Boy 146501

Nut-Lock

$1.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 607199

Key

$4.99

$

In Stock, Qty 12

0

25

Lawn-Boy 95-1778

Gasket-Exhaust

$4.99

$

In Stock, Qty 15

0

27

Lawn-Boy 95-1878

Pulley Engine

$55.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 613227

Screw-Set
(Superseded to 105-8875)

$10.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 92-1043

V-Belt

$18.99

$

In Stock, Qty 20+

0

42

Lawn-Boy 95-1886

Wire Lead

$4.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 95-7637

Short Block ASM Service

$

$

Not available

55

Lawn-Boy 95-5588

Air Filter Base ASM

$25.99

$

In Stock, only 2 left!

0

56

Lawn-Boy 95-7613

Gasket-Filter Base

$3.99

$

In Stock, Qty 20+

0

57

Lawn-Boy 3290-456

Washer-Lock

$2.99

$

In Stock, Qty 10

0

58

Lawn-Boy 95-5578

Tunnel

$4.99

$

In Stock, only 4 left!

0

68

Lawn-Boy 609790

Sealer-Loctite

$61.99

$

Usually ships in 3-6 days

0

74

Lawn-Boy 98-7042

Carburetor ASM
(Superseded to 107-4607)

$144.99

$

In Stock, Qty 6

0

76

Lawn-Boy 613208

Screw-HWH

$1.99

$

In Stock, only 2 left!

0

77

Lawn-Boy 98-1392

Gasket

$5.49

$

In Stock, Qty 15

0

78

Lawn-Boy 99-2904

Muffler & Guard
(Superseded to 100-9514)

$242.99

$

Usually ships in 3-6 days

0

78:4

Lawn-Boy 98-1394

Screw

$4.49

$

In Stock, only 1 left!

0

78:5

Lawn-Boy 3254-1

Lockwasher

$0.99

$

Usually ships in 3-6 days

0

79

Lawn-Boy 611228

Bolt

$16.99

$

In Stock, only 1 left!

0

81

Lawn-Boy 98-1557

Transfer Tube

$

$

Not available

82

Lawn-Boy 98-1591

Cover Plate

$10.99

$

In Stock, only 3 left!

0

84

Lawn-Boy 322-17

Screw-HH

$3.99

$

In Stock, only 2 left!

0

85

Lawn-Boy 98-1563

Muffler Plate Machining

$

$

Not available

90

Lawn-Boy 98-1388

Heat Shield

$7.99

$

Usually ships in 3-6 days

0

93

Lawn-Boy 98-7012

Retainer Wire

$2.99

$

Usually ships in 3-6 days

0

95

Lawn-Boy 700822

Screw

$1.99

$

In Stock, Qty 10

0

97

Lawn-Boy 95-7615

Retainer Hose

$2.99

$

In Stock, Qty 5

0

98

Lawn-Boy 613233

Screw-Hhd Washer

$3.99

$

Usually ships in 3-6 days

0
