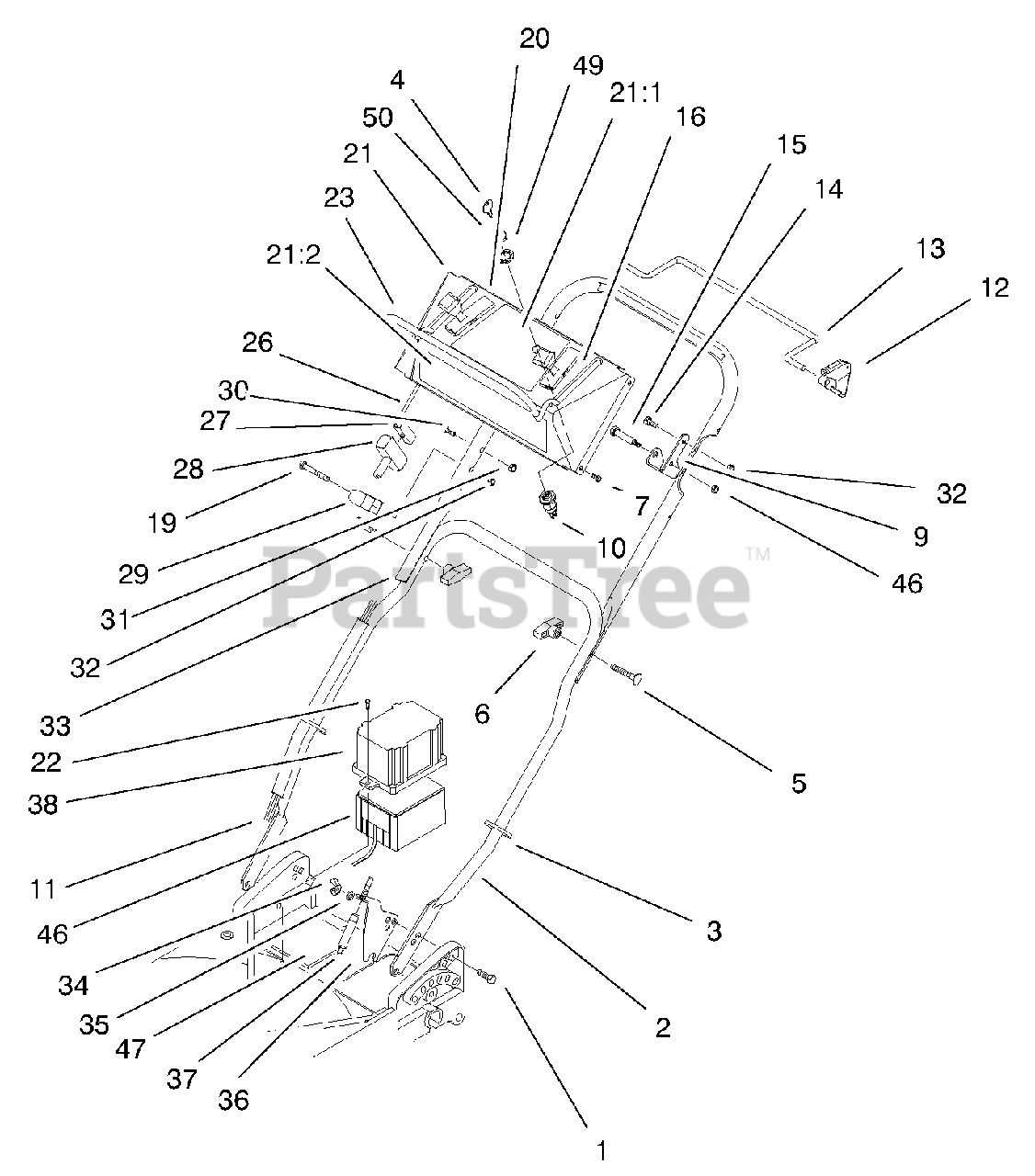

10547 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) HANDLE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3230-29

Bolt-CARR

$2.99

$

In Stock, Qty 6

0

2

Lawn-Boy 92-6537-05

Handle Section-Lower

$

$

Not available

3

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 98-4486

Key-Ignition

$2.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 98-7134

Knob

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 92-9665

Screw-Phil

$1.99

$

In Stock, Qty 11

0

8

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-1094

Bail Stop Bracket

$36.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 46-5780

Switch-Starter

$29.99

$

In Stock, Qty 15

0

11

Lawn-Boy 94-6059

ASM-Wire

$62.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-1001-03

Bail-Sp Control

$50.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 321-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 613050

Bolt

$11.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 95-7410

Throttle Cable

$82.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 321-51

Bolt-Hex

$1.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 92-8926

Control-Speed

$79.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 99-5200

Control-Console

$

$

Not available

21:1

Lawn-Boy 98-4468

Decal-Control Panel

$

$

Not available

21:2

Lawn-Boy 98-1569

Decal-Console

$

$

Not available

22

Lawn-Boy 12-5450

Screw-Thread Forming

$8.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 92-1093

Engine Control Bail

$

$

Not available

26

Lawn-Boy 95-7438

Cable-Control

$86.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612824

Clip-Rope

$3.99

$

In Stock, Qty 13

0

28

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$18.99

$

In Stock, Qty 6

0

29

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 18

0

30

Lawn-Boy 92-2268

Handle Screw

$2.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 92-2928

Bracket-Cable Anchor

$13.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 92-1092-05

Handle-Upper

$151.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 32103-29

Nut-Wing

$5.99

$

In Stock, only 2 left!

0

35

Lawn-Boy 3253-33

Washer-Lock

$1.99

$

In Stock, only 3 left!

0

36

Lawn-Boy 92-7899-03

Bracket-Traction Cable

$9.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 92-6518

Cable

$43.99

$

In Stock, Qty 9

0

38

Lawn-Boy 98-4498

Case-Battery
(Superseded to 95-3017)

$30.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 55-7520

Battery Pack

$176.99

$

In Stock, only 2 left!

0

47

Lawn-Boy 612510

Pad Battery

$7.49

$

In Stock, only 1 left!

0

Lawn-Boy 94-9164

Charger-Battery
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 3254-5

Washer-Lock

$1.49

$

In Stock, Qty 13

0

50

Lawn-Boy 218-461

Nut-HH (F/W Sw)

$3.99

$

In Stock, Qty 18

0
