10547 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) REAR AXLE ASSEMBLY Parts Diagram
GoldPro Series Walk-Behind Mower

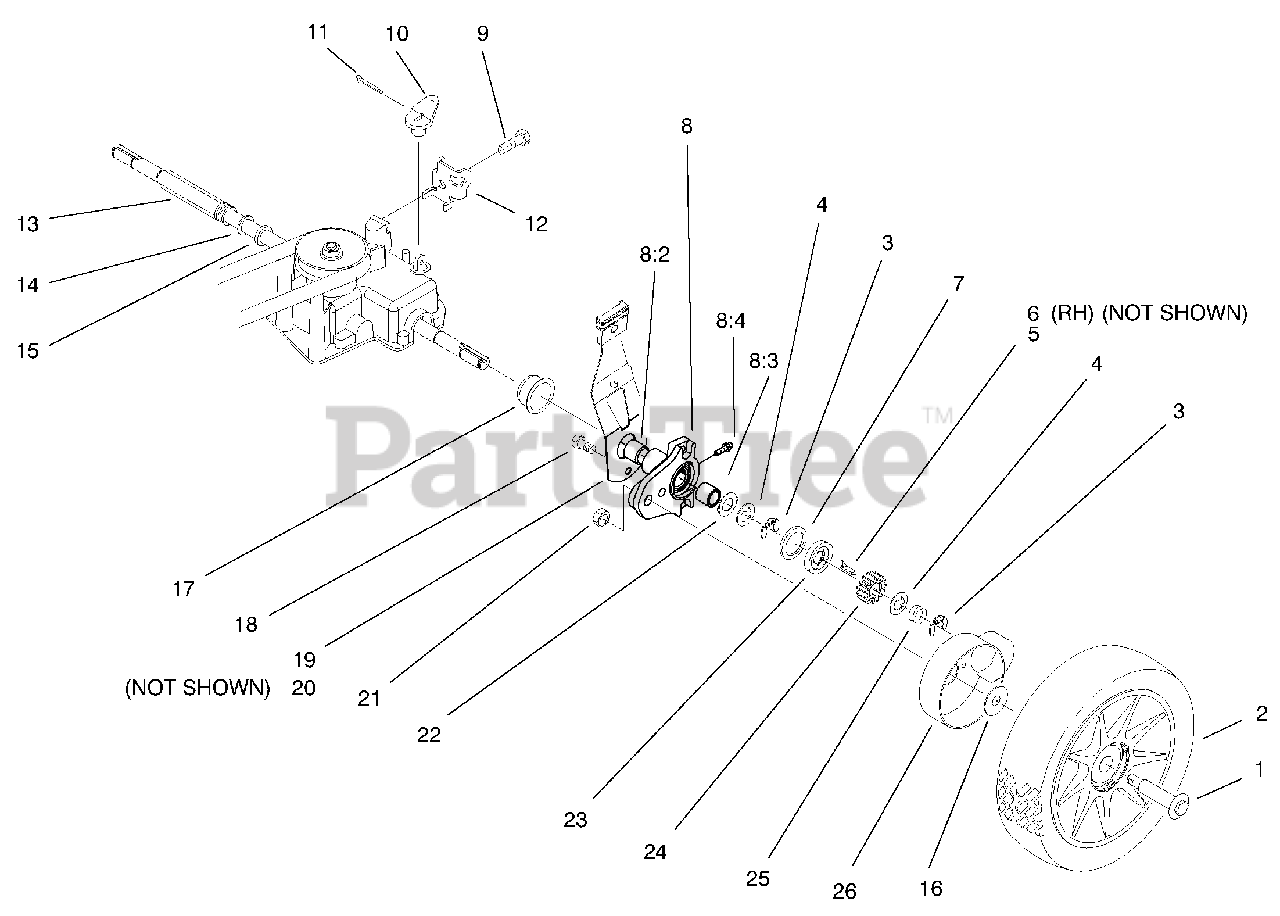

REAR AXLE ASSEMBLY Parts Diagram
Lawn-Boy 92-1057
$3.99
$
Lawn-Boy 92-1042
$49.99
$
Lawn-Boy 65-2720
$1.49
$
Lawn-Boy 65-4740
$2.49
$
$7.49
$
$7.49
$
Lawn-Boy 65-4710
$2.99
$
Lawn-Boy 92-7746
$43.99
$
Lawn-Boy 70-9760
$4.99
$
Lawn-Boy 47-2900
$6.49
$
Lawn-Boy 302-56
$5.49
$
Lawn-Boy 32144-70
$2.99
$
Lawn-Boy 60-8821
$9.99
$
Lawn-Boy 3272-10
$1.49
$
Lawn-Boy 82-8780
$14.99
$
Lawn-Boy 24-7920
$9.99
$
Lawn-Boy 303259
$1.99
$
Lawn-Boy 605255
$1.49
$
Lawn-Boy 614426
$3.49
$
Lawn-Boy 92-6535
$7.49
$
Lawn-Boy 32144-85
$1.99
$
Lawn-Boy 92-6540
$20.99
$
Lawn-Boy 92-6539
$20.99
$
Lawn-Boy 610358
$2.49
$
Lawn-Boy 65-4730
$2.49
$
Lawn-Boy 65-4760
$1.49
$
Lawn-Boy 65-4750
$11.99
$
Lawn-Boy 65-4720
$1.49
$
Lawn-Boy 94-1609
$8.99
$
